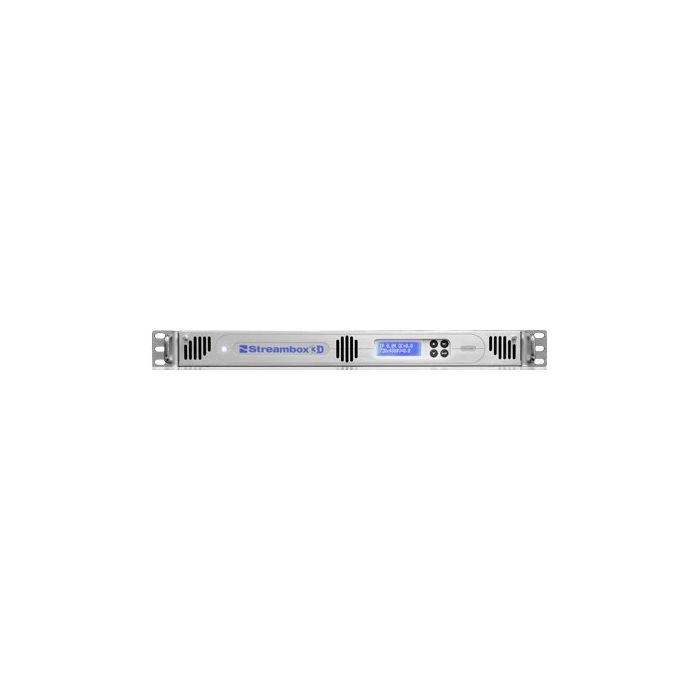

Streambox 3D SBT3-10000

The Streambox Full HD 3D Encoder/Decoder is a low-latency full resolution 4:2:2 HD 3D Encoder/Decoder with a compact 1-RU profile. The Streambox Full HD 3D Encoder/Decoder provides superior performance due to the unrivaled ACT-L3 compression and networking features that include Streambox own reliable protocol Low Delay Mult-Path Protocol (LDMP) to mitigate packet loss, network jitter, and buffering.

Designed for low-bandwidth Full HD 3D video acquisition and transport, the Streambox Full HD 3D Encoder/Decoder is able to encode, transmit, and playout either live or file-based HD 3D video over IP networks.

The Encoder captures full-frame left and full-frame right HD 3D video from the source and compresses it into a single synchronized transport stream or file. The single stream is received and decoded by the HD 3D Decoder as full-left and full-right playout, or has the option for side-by-side monitoring.

STREAMBOX 3D FEATURES

• Full-frame left and full-frame right 4:2:2 or 4:2:0 HD 3D video
• Capture via 3G-SDI or 2xHD-SDI in 1080i, 1080psf, or 720p
• Full HD 3D output via Dual-HD-SDI or single 3G-SDI with Genlock
• 5.1 Embedded Audio
• Sub-second end-to-end Full HD 3D capture to playout with an adjustable latency setting
• Optional multiplexing/de-multiplexing of IP stream over multiple networks
• Integrated FEC with proven transmission performance over IP networks
• Compact 1-RU form factor
• Optional file recording and playback in Full HD 3D
