SWIT 27" UHD 4K 12G-SDI HDR Studio LCD Monitor

SWIT
SKU
BM-U275HDR
image-icon
$8,449.00
Add to Wish List Add to Compare
Email

Product Highlights:

  • 27-inch LCD Panel, 3840×2160 resolution
  • 1000nits high bright LED backlight
  • HLG/PQ/S-log3 HDR, Payload ID auto setting
  • 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
  • 12GSDI via SFP Fiber input (Optional)
  • ST2110 IP via SFP Fiber input (Optional)

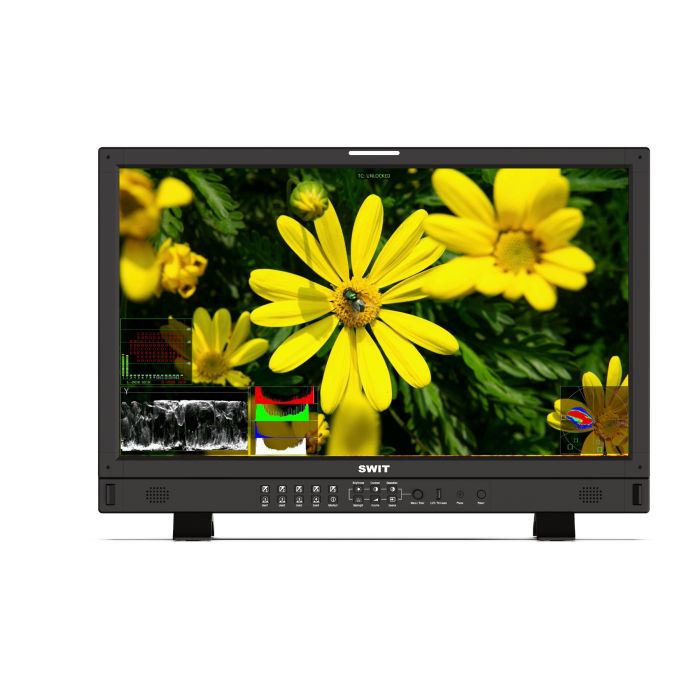

main product photo

The BM-U275HDR is a 27" LCD panel with 3840 x 2160 resolution. It supports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs.You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input. With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically.

Features:

  • 27-inch LCD Panel, 3840×2160 resolution
  • 1000nits high bright LED backlight
  • HLG/PQ/S-log3 HDR, Payload ID auto setting
  • 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
  • 12GSDI via SFP Fiber input (Optional)
  • ST2110 IP via SFP Fiber input (Optional)
  • SFP Fiber 12G input converted to 12GSDI out
  • 3DLUT Auto Self-calibration without PC
  • Audio/Video 0 latency for lip-sync
  • Built-in Multi camera Delog LUTs
  • User 3DLUTs upload via USB
  • Waveform / Vector / Histogram
  • Focus assist / False color / Zebra
  • 16-ch audio meters / Lissajous
  • IP webserver remote control
  • TSL UMD and text TALLY display
  • USB firmware upgrade
Write Your Own Review
You're reviewing:SWIT 27" UHD 4K 12G-SDI HDR Studio LCD Monitor
Your Rating

Items Included:

  • SWIT 27" UHD 4K 12G-SDI HDR Studio LCD Monitor
  • Desktop feet

BM-U275HDR - Specification

More Information
Performance
Size:27 inches
Display area:596.74×335.66m
Resolution:3840×216
Aspect ratio:16:09
Brightness:1000nits
Contrast:1000:01:00
Color depth:1.073G colors, 10-bit
Signal process:18-bit
Viewing angle:178°(H) /178°(
Input
BNC ×:12G/6G/3G/HD/SD-SDI input
HDMI ×:HDMI 2.0 input
SFP ×:Optical Fiber input (By optional SFP adaptor)
RS485 ×:TSL 3.1/4.0 UMD input
RS485 ×:GPI (Tally) input
RJ45 ×:1000M Ethernet input for Webserver IP control
Output
BNC ×:12G/6G/3G/HD/SD-SDI loop output
RS485 ×:TSL 3.1/4.0 UMD output
Analog audio:3.5mm headphone and speaker
Video Format
SDI 1/2/3/4:4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I
Quad Link 4K (Each channel):2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
Quad Link 8K (Each channel):4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.9
HDMI:4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 5
General
Input voltage:AC 100-240V, 50/60Hz
Power consumption:130W
Working temperature:0°C～+5
Working humidity:10%～9
Storage temperature:-15°C～+6
Storage humidity:10%～9
Dimensions:652.3×433.1×88.8
Net weight (main body):11kg
