SWIT 17.3" LCD Full HD Film Production Monitor with LED Backlight

SKU
FM-17
image-icon
$1,300.00
Add to Wish List Add to Compare
Email

Product Highlights:

  • 17.3” 1920×1080 non-glaring LCD
  • 8-bit LCD, 12-bit internal process
  • 3G/HD/SD-SDI, HDMI input & output
  • Build-in multi-camera logs to Rec.709
  • DIT user 3DLUT cube upload by USB

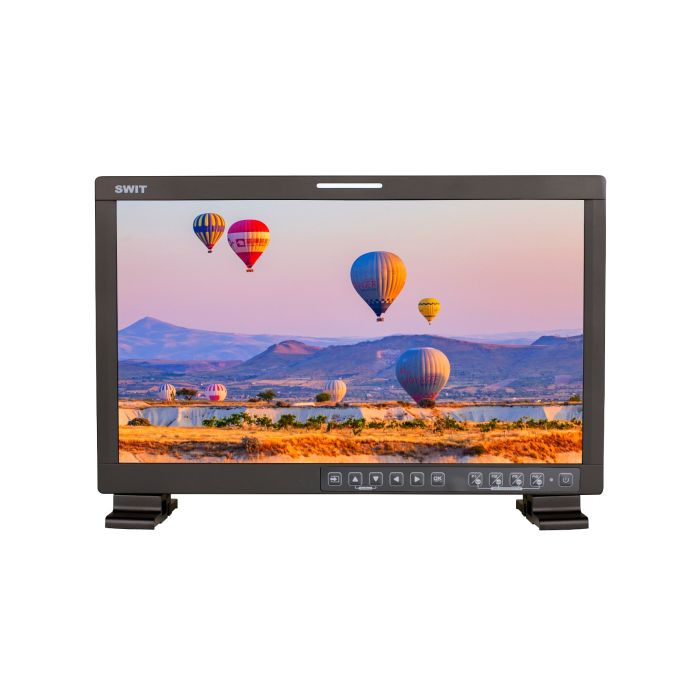

main product photo

The FM-17 monitor adopts a 17.3 inch LCD panel with LED backlight, 300nits brightness. The native resolution is Full HD 1920×1080, contrast 800:1, and viewing angle is Horizontal: 178° / Vertical: 178°

Key Features:

  • 17.3” 1920×1080 non-glaring LCD
  • 8-bit LCD, 12-bit internal process
  • 3G/HD/SD-SDI, HDMI input & output
  • Build-in multi-camera logs to Rec.709
  • DIT user 3DLUT cube upload by USB
  • Waveform / Vector scope / Histogram
  • 16-ch embedded audio meters
  • Peaking focus assist with precision adjustment
  • Exposure assist / Zebra / Blue only
  • Anamorphic de-squeeze / Multiple markers
  • USB firmware upgrade
  • V-mount or 4-pin XLR or AC input
  • Light weight, C-stand mountable (optional)
Write Your Own Review
You're reviewing:SWIT 17.3" LCD Full HD Film Production Monitor with LED Backlight
Your Rating

Items Included:

  • SWIT 17.3" LCD Full HD Film Production Monitor with LED Backlight
  • Sun hood
  • LCD Protective Glass
  • Desktop feet
  • D-tap to 4-pin XLR cable
  • V-mount plate

FM-17 - Specification

More Information
LCD Performance
Size:17.3 inches
Display area:381.89×214.81mm
Resolution:1920×1080
Aspect ratio:16:09
Brightness:300cd/m2
Contrast:700:01:00
Color:16.77 million colors
Viewing angle:Horizontal: 178°; Vertical: 178°
Size:17.3 inches
Display area:381.89×214.81mm
Resolution:1920×1080
Aspect ratio:16:09
Brightness:300cd/m2
Contrast:700:01:00
Color:16.77 million colors
Viewing angle:Horizontal: 178°; Vertical: 178°
Input
BNC ×2:3G/HD/SD-SDI input
BNC ×1:CVBS input
HDMI ×1:HDMI 1.3 input
3.5mm ×1:Analog audio input
USB ×1:User LUTs upload and Firmware upgrade
RS485 ×1:TSL 3.1/4.0 input
BNC ×2:3G/HD/SD-SDI input
BNC ×1:CVBS input
HDMI ×1:HDMI 1.3 input
3.5mm ×1:Analog audio input
USB ×1:User LUTs upload and Firmware upgrade
RS485 ×1:TSL 3.1/4.0 input
BNC ×:3G/HD/SD-SDI input
BNC ×:CVBS input
HDMI ×:HDMI 1.3 input
3.5mm ×:Analog audio input
USB ×:User LUTs upload and Firmware upgrade
RS485 ×:TSL 3.1/4.0 input
Output
BNC ×1:3G/HD/SD-SDI loop output
3.5mm ×1:SDI, HDMI embedded audio and analog output
RS485 ×1:TSL 3.1/4.0 output
BNC ×1:3G/HD/SD-SDI loop output
3.5mm ×1:SDI, HDMI embedded audio and analog output
RS485 ×1:TSL 3.1/4.0 output
BNC ×:3G/HD/SD-SDI loop output
3.5mm ×:SDI, HDMI embedded audio and analog output
RS485 ×:TSL 3.1/4.0 output
Video Format
SDI:1080p (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) 1035i (60 / 59.94) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94) 576i (50)
HDMI:480i/ 576i / 480p / 576p 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SDI:1080p (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) 1035i (60 / 59.94) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94) 576i (50)
HDMI:480i/ 576i / 480p / 576p 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SDI:1080p (60 / 59.94 / 50)

1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1035i (60 / 59.94)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)
HDMI:480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
General
Input voltage:DC / battery 11V-17V 3A, AC 100-240V, 50/60Hz
Power consumption:14W
Working temperature:0°C～+50°C
Working humidity:10%～90%
Storage temperature:-15°C～+60°C
Storage humidity:10%～90%
Dimensions:421.8×264.3×48.7mm
Net weight (main body):3.35kg
Input voltage:DC / battery 11V-17V 3A, AC 100-240V, 50/60Hz
Power consumption:14W
Working temperature:0°C～+50°C
Working humidity:10%～90%
Storage temperature:-15°C～+60°C
Storage humidity:10%～90%
Dimensions:421.8×264.3×48.7mm
Net weight (main body):3.35kg
Input voltage:DC / battery 11V-17V 3A, AC 100-240V, 50/60Hz
Power consumption:14W
Working temperature:0°C～+5
Working humidity:10%～9
Storage temperature:-15°C～+6
Storage humidity:10%～9
Dimensions:421.8×264.3×48.7
Net weight (main body):3.35kg
Performance
Size:17.3 inches
Display area:381.89×214.81m
Resolution:1920×108
Aspect ratio:16:09
Brightness:300cd/m2
Contrast:700:01:00
Color:16.77 million colors
Viewing angle:Horizontal: 178°; Vertical: 178
