Product Highlights:
- 1920×1200 Native Resolution
- 1000:1 Contrast Ratio
- 160° Viewing Angles
- 400cd/m2 Brightness
- 2K/3G/HD/SD-SDI Inputs & Loop Outputs
- HDMI 2.0 Input & Loop Output
- 3.5mm SDI/HDMI Embedded Audio Output
- 3DLUT Log to Rec709
- 16-Channel Audio Meters
- USB Firmware Upgrade

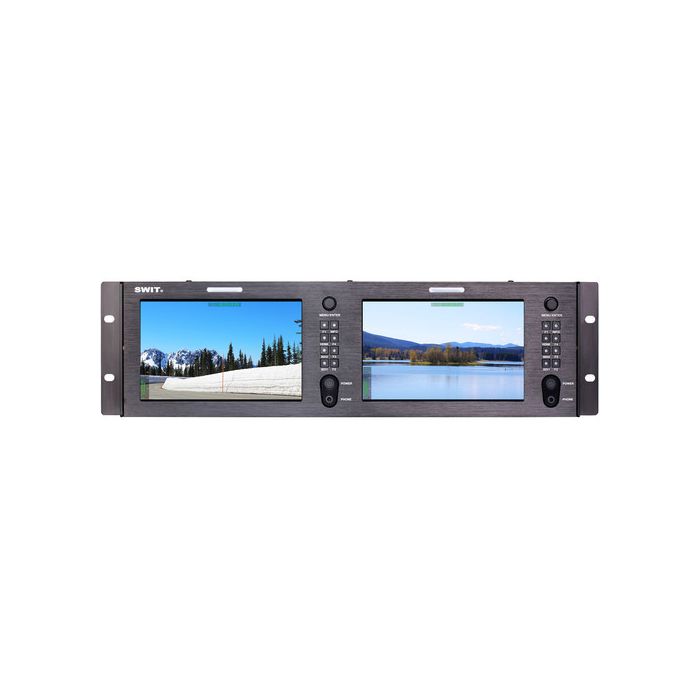

SWIT 3U FullHD Rack mountable 7-inch dual monitor with ±30° tilt system, featuring 3G-SDI and HDMI inputs and output loop. It has native 1920x1200 resolution LCD panels and supports signals up to 4K60p via HDMI 2.0 input. It features 16-channel embedded audio buometers with peak alert, 2-channel selectable for output, 9-step zoom and mapping function, fine-tuned focus wizard, Peaking, on-screen Tally and GPI function, Zebra, fake color, R/G/B/B/Mono, timecode, 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1 security margin marks, and more.
The M-1073H mounts dual 7-inch LCD panels with LED backlighting. The native resolution is FullHD 1920x1200, 1000:1 contrast and 160° viewing angle both horizontally and vertically.
The M-1073H monitor has built-in camera logs for Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm. You can also import your own 3DLUT files to monitor them via USB stick, support 17x17x17x17 3DLUT cube files.
The dual monitor supports display of audio meters embedded in SDI-16ch and HDMI-2ch, with markings and abnormal audio alert information. Users can also select any 2-channel audio to output through a 3.5 mm jack or speakers. The position of the audio meter pattern can be selected from one of the four corners, and you can select to display only 2 channels, 8 channels and 16 full channels. You can also select scale markers, alert and translucent information from the audio meter pattern.
The M-1073H provides a standard USB port on the rear panel for the firmware upgrade. Users can download the latest firmware file to a USB memory stick and insert it directly into the M-1073H monitor to update, without connecting to the PC.
The M-1073H dual monitor provides a DC 6.5-24V power input connection, for both displays, and an AC-DC adapter on the rear panel of the monitor.
Features
- 7" dual LCD anti-reflection display, 1920×1200
- 3U 19-inch rackmount, ±30° rotatable
- Loop input and output 2K/3G/HD/SD/SD-SDI
- HDMI 2.0 Input and Output (4K60p)
- Integrated 16-channel audio meters with alert
- Select two audio channels for output
- 9 quick zoom and mapping steps
- Focus assistant with fine adjustment
- Multi-camera registers incorporated in Rec.709
- Import of 3DLUT cube files via USB
- TALLY and GPI screen display
- Zebra Stripes, False Color, R/G/B/B/Mono
- H/V delay, AFD, Time code display
- Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
- Firmware update via USB without a computer
Items Included:
- SWIT Dual 7" FHD Rackmount LCD Monitor (3 RU)
- AC-DC Adaptor
|
