SWIT S-1243F Waveform Studio LCD Monitor (23.8", V-Mount)

SKU
S-1243FS
image-icon
$2,650.00
Add to Wish List Add to Compare
Email

Product Highlights:

  • 23.8” LCD panel
  • 1920 x 1080 resolution
  • 2 x 2K/3G/HD/SD-SDI, HDMI monitoring
  • Y/Pb/Pr, VGA, CVBS monitoring
  • Chart positioning / Translucence adjustment
  • Four corners and large center, with adjusted translucence for waveform and vectorscope/histogram

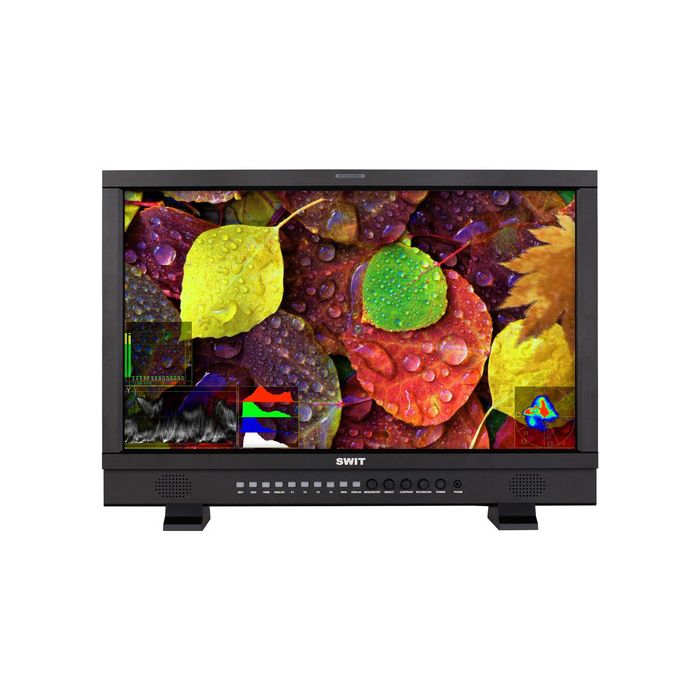

main product photo

The S-1243F Waveform Studio LCD Monitor from SWIT adopts a 23.8” LCD panel to produce 3G/SDI/HDMI video in Full HD 1920 x 1080 resolution. It provides a 1000:1 contrast for accurate color reproduction and comes with a V-Mount battery plate. With four corners and a large center positioning, the monitor allows for adjusted translucence for waveform and vectorscope/histogram.

  • 23.8” LCD panel
  • 1920 x 1080 resolution
  • 2 x 2K/3G/HD/SD-SDI, HDMI monitoring
  • Y/Pb/Pr, VGA, CVBS monitoring
  • Chart positioning / Translucence adjustment
  • Four corners and large center, with adjusted translucence for waveform and vectorscope/histogram
  • 16-channel embedded audio meters with alert
  • SDI: 16-channel / HDMI: 8-channel
  • 2 selectable audio channels to output
  • Peaking focus assist (red/blue switch)
  • Active Format Description (AFD)
  • Timecode, H/V delay
  • TSL UMD and text TALLY display
  • Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
  • False color with color chart
  • R/G/B/mono color modes
  • Over exposure zebra stripes
  • Internal color bar
  • V-Mount battery plate optional
  • USB firmware upgrade
Write Your Own Review
You're reviewing:SWIT S-1243F Waveform Studio LCD Monitor (23.8", V-Mount)
Your Rating

Items Included:

  • SWIT S-1243F Waveform Studio LCD Monitor (23.8", V-Mount)
  • V-Mount Battery Plate
  • Limited 2-Year Warranty

S-1243FS - Specification

More Information
Signal System:NTSC/PAL
Monitor Type:LCD
Screen Size:23.8" (60.5 cm)
Resolution:1920 x 1080
Display Area:19 x 11" (53 x 30 cm)
Display Colors:16.77 million colors
Aspect Ratio:16:9 / 4:3
Viewing Angle:H/V: 178°/ 178°
Brightness:300 cd/m2
Contrast Ratio:1000:01:00
Inputs:BNC: 2 x 2K/3G/HD/SD-SDI input, CVBS input, Y/Pb/Pr input 1 x HDMI RS-485: 1 x GPI, 1 x UMD 1 x USB 1 x VGA 1 x RS-232C (UMD) RCA: 2 x L/R audio input
Output:BNC: 2K/3G/HD/SD-SDI Loop output, CVBS loop output 1 x HDMI loop output 1 x RS-485 (UMD) 1 x 3.5 mm SDI/HDMI embedded audio output, analog audio output
Video Formats:SDI: SMPTE 2048-2: 2048 x 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 2048 × 1080i (60 / 59.94 / 50) SMPTE-425M: 1080p (60 / 59.94 / 50) SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98) SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98) SMPTE-296M: 720p (60 / 59.94 / 50) SMPTE-125M: 480i (59.94) ITU-R BT.656: 576i (50) HDMI: 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) 576p / 576i / 480p / 480i Y/Pb/Pr: 1080p (50/60), 1080i (50/60), 720p (50/60), 576p / 576i / 480p / 480i VGA: 1600 x 1200 / 1280 x 1024 / 1280 x 960 / 1280 x 768 / 1152 x 864 / 1024 x 768 / 800 x 600 / 640 x 480
Temperature:Working: 32 to 104°F (0 to +40°C) Storage: 5 to 140°F (-15 to +60°C)
Humidity:10 to 90%
Power Requirements:100 to 240 VAC, 11 to 17 VDC
Power Consumption:≤36 W
Dimensions:23 x 15 x 3.4" (58 x 38 x 8.7 cm)
Weight:16 lb (7.2 kg)
Signal System:NTSC/PAL
Monitor Type:LCD
Screen Size:23.8" (60.5 cm)
Resolution:1920 x 1080
Display Area:19 x 11" (53 x 30 cm)
Display Colors:16.77 million colors
Aspect Ratio:16:9 / 4:3
Viewing Angle:H/V: 178°/ 178°
Brightness:300 cd/m2
Contrast Ratio:1000:01:00
Inputs:BNC: 2 x 2K/3G/HD/SD-SDI input, CVBS input, Y/Pb/Pr input 1 x HDMI RS-485: 1 x GPI, 1 x UMD 1 x USB 1 x VGA 1 x RS-232C (UMD) RCA: 2 x L/R audio input
Output:BNC: 2K/3G/HD/SD-SDI Loop output, CVBS loop output 1 x HDMI loop output 1 x RS-485 (UMD) 1 x 3.5 mm SDI/HDMI embedded audio output, analog audio output
Video Formats:SDI: SMPTE 2048-2: 2048 x 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 2048 × 1080i (60 / 59.94 / 50) SMPTE-425M: 1080p (60 / 59.94 / 50) SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98) SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98) SMPTE-296M: 720p (60 / 59.94 / 50) SMPTE-125M: 480i (59.94) ITU-R BT.656: 576i (50) HDMI: 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) 576p / 576i / 480p / 480i Y/Pb/Pr: 1080p (50/60), 1080i (50/60), 720p (50/60), 576p / 576i / 480p / 480i VGA: 1600 x 1200 / 1280 x 1024 / 1280 x 960 / 1280 x 768 / 1152 x 864 / 1024 x 768 / 800 x 600 / 640 x 480
Temperature:Working: 32 to 104°F (0 to +40°C) Storage: 5 to 140°F (-15 to +60°C)
Humidity:10 to 90%
Power Requirements:100 to 240 VAC, 11 to 17 VDC
Power Consumption:≤36 W
Dimensions:23 x 15 x 3.4" (58 x 38 x 8.7 cm)
Weight:16 lb (7.2 kg)
General
Signal System:NTSC/PAL
Monitor Type:LCD
Screen Size:23.8" (60.5 cm)
Resolution:1920 x 1080
Display Area:19 x 11" (53 x 30 cm)
Display Colors:16.77 million colors
Aspect Ratio:16:9 / 4:3
Viewing Angle:H/V: 178°/ 178
Brightness:300 cd/m2
Contrast Ratio:1000:01:00
Inputs:BNC: 2 x 2K/3G/HD/SD-SDI input, CVBS input, Y/Pb/Pr input
1 x HDMI
RS-485: 1 x GPI, 1 x UMD
1 x USB
1 x VGA
1 x RS-232C (UMD)
RCA: 2 x L/R audio input
Outputs:BNC: 2K/3G/HD/SD-SDI Loop output, CVBS loop output
1 x HDMI loop output
1 x RS-485 (UMD)
1 x 3.5 mm SDI/HDMI embedded audio output, analog audio output
Video Formats:SDI:
SMPTE 2048-2: 2048 x 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 2048 × 1080i (60 / 59.94 / 50)
SMPTE-425M: 1080p (60 / 59.94 / 50)
SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)

HDMI:
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
576p / 576i / 480p / 480i

Y/Pb/Pr: 1080p (50/60), 1080i (50/60), 720p (50/60), 576p / 576i / 480p / 480i

VGA: 1600 x 1200 / 1280 x 1024 / 1280 x 960 / 1280 x 768 / 1152 x 864 / 1024 x 768 / 800 x 600 / 640 x 48
Temperature:Working: 32 to 104°F (0 to +40°C)
Storage: 5 to 140°F (-15 to +60
Humidity:10 to 90%
Power Requirements:100 to 240 VAC, 11 to 17 VDC
Power Consumption:d36 W
Dimensions:23 x 15 x 3.4" (58 x 38 x 8.7 cm)
Weight:16 lb (7.2 kg)
