SWIT Portable SDI Audio De-Embedder
- Portable SDI to Audio De-embedder
- 3G/HD/SD-SDI supported
- De-embed any 2-ch from first 8-ch audio
- Output AES/EBU audio
- Provide 2x SDI loop output
- Power/input/output status indicator
- Pole-tap 6-18V DC power input
- Heavy duty aluminium housing
- Bottom screw threads for installing
The S-4609 is a portable mini SDI audio de-embedder, supports up to 3Gb/s SDI, and can be widely used in broadcast field productions and professional audio/video conversion and transmission.
Input and Output
S-4609 provides:
- 1x 3G/HD/SD-SDI input
- 2x 3G/HD/SD-SDI loop output (Reclocked)
- 1x AES/EBU digital audio output (2-ch)
- 2x 6.35mm analog audio output (balanced)
- (If both AES/EBU audio and analog audio is connected, only AES/EBU audio outputs)
- De-embed Channel Selection By 6 Switchers

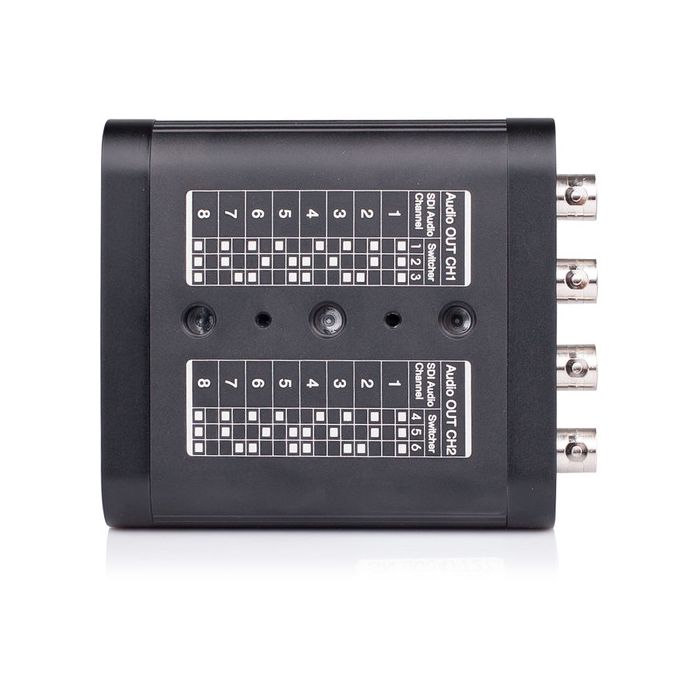

- S-4609 can de-embeded any 2-ch audio from SDI first 8-ch embedded audios. User can select the channel number to be de-embedded by the 6 switchers on the front panel of the product. And on the rear side, S-4609 provides the description of the 6 switchers for reference.
Power Supply
Pole-tap DC input
The mini converter is powered by pole-tap DC socket.
The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4609 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the audio/video connectors effectively.
Installation
S-4609 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC/audio cables.
