SWIT S-4611 SDI to DVI Converter

Portable 3G/HD/SD-SDI to DVI Converter

Portable Mini Converter
S-4611 is a mini converter for SDI to DVI conversion, (DVI-D, 18+1 connector), which can be widely used to display up to 3Gb/s broadcast SDI video on DVI monitor, televisions, LED board or projectors.

Input and Output

S-4611 offers:

• 1× 3G/HD/SD-SDI input
• 1× 3G/HD/SD-SDI loop output (Reclocked)

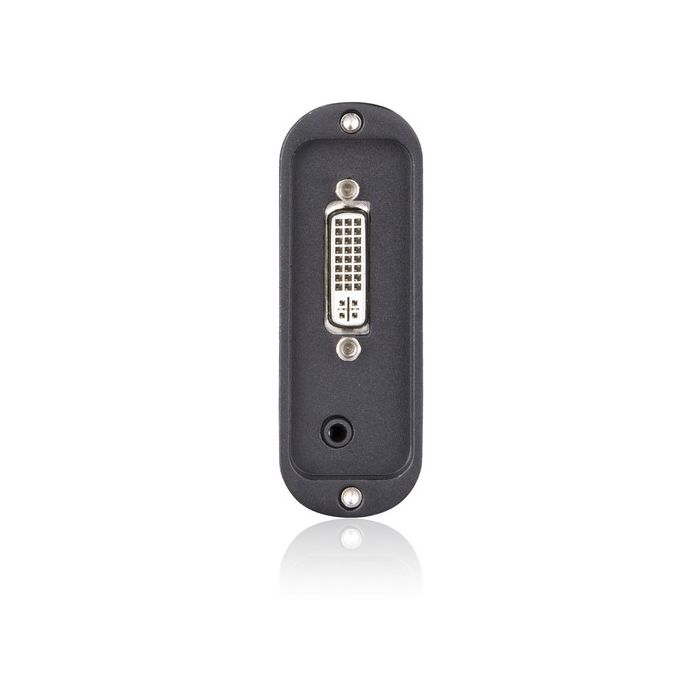

• 1× DVI-D output
• 1× 3.5mm audio output

(The SDI to DVI supports the same format conversion only.)

Embedded Audio output
The SDI embedded audio ch-1 & ch-2 can be converted to analog audio and output via 3.5mm headphone socket, supports 48kHz sample rate.

Status Indicators

Power / Input / Output

S-4611 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.

Power Supply

Pole-tap DC input

The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries

Heavy Duty Housing
The S-4611 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.

Installation
S-4611 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate A-IP00 is supplied in the package, for fixing on wall and binding the BNC/DVI cables.

Standard Package:

• S-4611 standard package includes:
• 1x AC-DC power adaptor (A-PA03)
• 1x Install plate (A-IP00)
