Marshall Electronics M-LYNX-503 Rack-Mountable Triple 5" LCD Monitor Unit

Marshall Electronics
SKU
M-LYNX-503
image-icon
$1,248.75
Add to Wish List Add to Compare
Email

Product Highlights:

  • 3x 5" 800 x 480 LCD Monitors
  • Supports SD and HD Resolutions
  • Composite, HDMI, and SDI Inputs
  • Loop Video Outputs
  • Tally Input
  • Headphone Monitoring
  • Integrated Tilting Rack Ears
  • 12 VDC Power Adapter

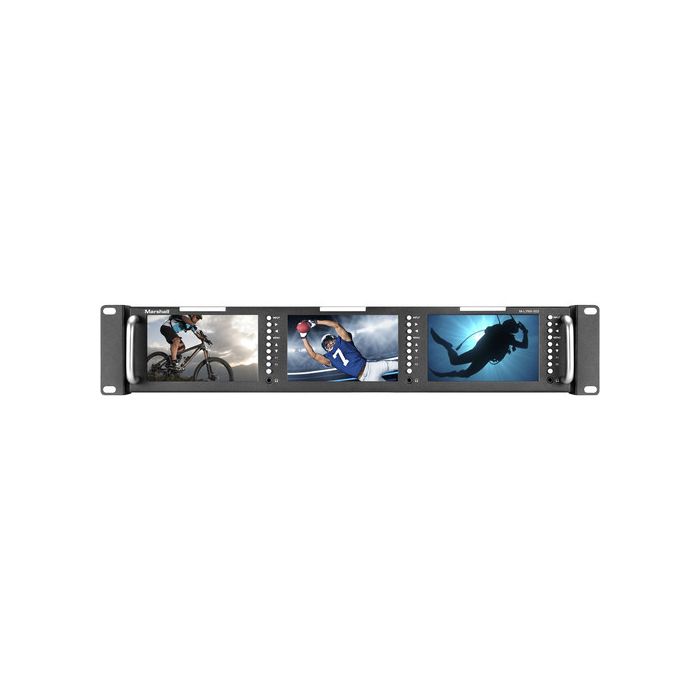

main product photo

Fitting into a 2 RU space and only a measly 1¾" thick, the Marshall Electronics M-LYNX-503 Rack-Mountable Triple 5" LCD Monitor Unit can still fit 3 separate 5" displays for monitoring separate feeds from either Composite, HDMI, or SDI inputs. Each video input has a loop output for daisy-chaining. Having 3 screens and tally connections in a compact chassis is useful in compact studio production or A/V integration where space is at a premium, or for confidence monitoring of essential video feeds. Audio from each feed can be monitored with headphone outputs, one for each screen. The integrated tilting rack ears allow for flexible monitor positioning for finding the optimal viewing angle.

  • Three 5" screens
  • Wide aspect of 16:10
  • Anti-glare coating rejects ambient light
  • Front panel controls give access to all functions
  • Multiple inputs, all with loop-through connections: 3G-SDI (HD-SDI, SD-SDI), HDMI, Composite
  • Three color tally lights (red, green, yellow)
  • Safe area and center markers
  • Two function buttons
  • Tilting mount; adjust for optimum viewing
  • Headphone jack to monitor embedded stereo audio
  • Firmware update via USB port
  • Suitable for flypacks, control rooms, news vans
Write Your Own Review
You're reviewing:Marshall Electronics M-LYNX-503 Rack-Mountable Triple 5" LCD Monitor Unit
Your Rating

Items Included:

  • Marshall Electronics M-LYNX-503 Rack-Mountable Triple 5" LCD Monitor Unit
  • Power Supply
  • Limited 1-Year Warranty
Marshall Electronics M-LYNX-503 Manual (Size: 1.1 MB)

M-LYNX-503 - Specification

More Information
Number of Panels:3
Panel Size:5.0" (12.7 cm)
Resolution:800 x 480 RGB
Aspect Ratio:16:10
Brightness:400 cd/m2
Contrast:500:01:00
Finish:Anti-glare
Viewing Angles:70°/70°/50°/70°
Backlight Type:LED
Backlight Life:20,000 hrs (typical)
Video Formats:SDI: 1080p23.98/24/25/29.97/50/59.94/60 1080PsF23.98/24 1080i50/59.94/60 720p50/59.94/60 NTSC PAL
HDMI: 1080p23.98/24/25/29.97/50/59.94/60 1080i50/59.94/60 720p50/59.94/60 NTSC PAL
Composite: NTSC PAL
Tally:Three color tally via 9-pin D-Sub connector
Markers:On-screen safe area and center mark
Focus Assist:Yes
Image Flip:H, V, and HV
Video Input Connectors:1 Per Screen: 3GSDI with loop- through; HDMI with loop-through; CVBS composite with loop- through
Audio Inputs:De-Embedded from SDI; de-Embedded from HDMI
RCA:2 x RCA (for composite video input)
Audio Outputs:3 x Headphone jack (3.5 mm mini-phone)
Power Input:12 VDC; 2 A
Connectors:0.2" (5.5 mm) coaxial and 12-pin XLR
Dimensions:19.12 x 5.14 x 1.75" (48.56 x 13.05 x 4.45 cm) including connectors
Weight:3.25 lb (1.48 kg)
Number of Panels:3
Panel Size:5.0" (12.7 cm)
Resolution:800 x 480 RGB
Aspect Ratio:16:10
Brightness:400 cd/m2
Contrast:500:01:00
Finish:Anti-glare
Viewing Angles:70°/70°/50°/70°
Backlight Type:LED
Backlight Life:20,000 hrs (typical)
Video Formats:SDI: 1080p23.98/24/25/29.97/50/59.94/60 1080PsF23.98/24 1080i50/59.94/60 720p50/59.94/60 NTSC PAL
HDMI: 1080p23.98/24/25/29.97/50/59.94/60 1080i50/59.94/60 720p50/59.94/60 NTSC PAL
Composite: NTSC PAL
Tally:Three color tally via 9-pin D-Sub connector
Markers:On-screen safe area and center mark
Focus Assist:Yes
Image Flip:H, V, and HV
Video Input Connectors:1 Per Screen: 3GSDI with loop- through; HDMI with loop-through; CVBS composite with loop- through
Audio Inputs:De-Embedded from SDI; de-Embedded from HDMI
RCA:2 x RCA (for composite video input)
Audio Outputs:3 x Headphone jack (3.5 mm mini-phone)
Power Input:12 VDC; 2 A
Connectors:0.2" (5.5 mm) coaxial and 12-pin XLR
Dimensions:19.12 x 5.14 x 1.75" (48.56 x 13.05 x 4.45 cm) including connectors
Weight:3.25 lb (1.48 kg)
Packaging Info
Package Weight:5.3 lb
Box Dimensions (LxWxH):21.1 x 6.8 x 3.7"
Package Weight:5.3 lb
Box Dimensions (LxWxH):21.1 x 6.8 x 3.7"
Package Weight:5.3 lb
Box Dimensions (LxWxH):21.1 x 6.8 x 3.7"
General
Number of Panels:3
Panel Size:5.0" (12.7 cm)
Resolution:800 x 480 RGB
Aspect Ratio:16:10
Brightness:400 cd/m2
Contrast:500:01:00
Finish:Anti-glare
Viewing Angles:70°/70°/50°/
Backlight Type:LED
Backlight Life:20,000 hrs (typical)
Video Formats:SDI:
1080p23.98/24/25/29.97/50/59.94/60
1080PsF23.98/24
1080i50/59.94/60
720p50/59.94/60
NTSC
PAL

HDMI:
1080p23.98/24/25/29.97/50/59.94/60
1080i50/59.94/60
720p50/59.94/60
NTSC
PAL

Composite:
NTSC
PAL
Tally:Three color tally via 9-pin D-Sub connector
Markers:On-screen safe area and center mark
Focus Assist:Yes
Image Flip:H, V, and HV
Video Input Connectors:1 Per Screen: 3GSDI with loop- through; HDMI with loop-through; CVBS composite with loop- through
Audio Inputs:De-Embedded from SDI; de-Embedded from HDMI
RCA:2 x RCA (for composite video input)
Audio Outputs:3 x Headphone jack (3.5 mm mini-phone)
Power Input:12 VDC; 2 A
Connectors:0.2" (5.5 mm) coaxial and 12-pin XLR
Dimensions:19.12 x 5.14 x 1.75" (48.56 x 13.05 x 4.45 cm) including connectors
Weight:3.25 lb (1.48 kg)
