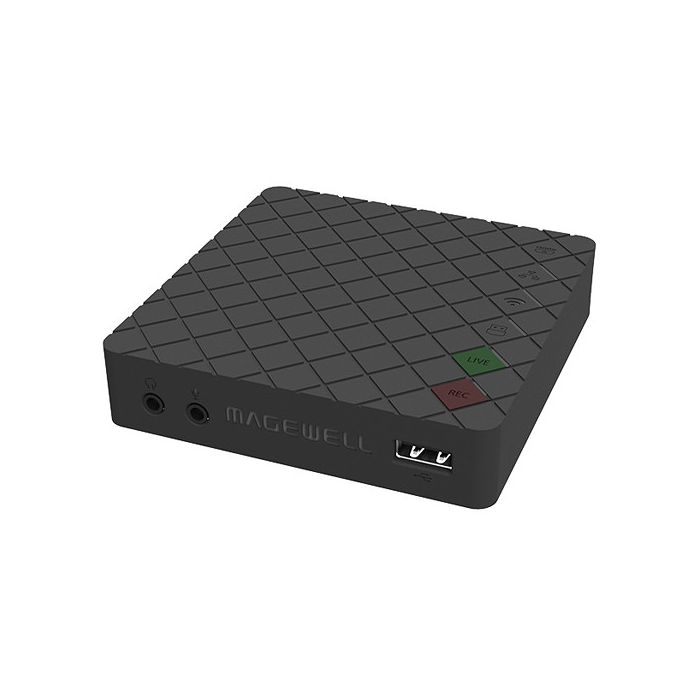

Magewell Ultra Stream HDMI

SKU
530100000
image-icon
Request for Price
Add to Compare
Email
Product Highlights:
  • Single-Channel HD Streaming Encoder
  • Accepts HDMI Video Sources up to DCI 4K
  • HDMI Loop Output
  • Stream up to 1080p Resolution in MP4
main product photo

Ultra Stream encoder makes live streaming remarkably simple even for nonprofessional users, enabling them to record or stream high-quality video with one click using on-device buttons or an intuitive smartphone app. Designed for users who want to stream but may have minimal technical knowledge, the encoder is ideal for everyone from church volunteers and educators to corporate communicators and live event organizers. Users can stream to popular services including YouTube, Facebook Live or Twitch or to a custom-specified server. Streams can be output to a third-party service and custom server simultaneously, while real-time video preview in the app allows easy monitoring. In addition to outputting live streams, Ultra Stream can record video as files to a directly-connected USB drive, embedded storage or the associated smartphone.

Write Your Own Review
You're reviewing:Magewell Ultra Stream HDMI
Your Rating

Items Included:

  • Magewell Ultra Stream HDMI
  • Power Supply
  • Limited 1-Year Manufacturer Warranty
Magewell Ultra Stream HDMI 530100000 - Short FAQs (Size: 42.3 KB)
Magewell Ultra Stream HDMI 530100000 - User Manual (Size: 6.5 MB)
Magewell Ultra Stream HDMI 530100000 - User Manual (Size: 6.5 MB)
Magewell Ultra Stream HDMI 530100000 - Quick Start Guide (Size: 4.3 MB)
Magewell Ultra Stream HDMI - User Manual (Size: 5.9 MB)
Magewell Ultra Stream HDMI - Quick Start Guide (Size: 4.7 MB)
More Information
SPECS
General Inputs HDMI: 1 x HDMI type A, v1.4a
Microphone: 1 x 3.5 mm
  Outputs HDMI: 1 x HDMI type A, loop output
Headphones: 1 x 3.5 mm
  Other I/O Storage: 1 x USB 2.0 Type-A
Ethernet: 1 x RJ45
  Resolution Support Input: Up to 4096 x 2160 at 30 fps (4:4:4, 4:2:2 sampling) or 60 fps (4:2:0 sampling)
Recording: Up to 1920 x 1080 at 60 fps
  Frame Rate Support Input: 60/60i/30/25
Recording: 60/50/30/25/24/15
  Sampling Input: 12/10/8-bit 4:4:4, 4:2:2, 4:2:0
Recording: 8-bit, 4:2:0
  Wireless Connectivity Wi-Fi: IEEE 802.11 a/b/g/n/ac
Bluetooth: 4.0 BLE
  Power Input 1 x Coaxial, 5 VDC, 2 A
  Power Consumption 6 W (max)
  Environmental Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 158°F / -20 to 70°C
Relative Humidity: 5-90%, non-condensing
  Dimensions 3.7 x 3.7 x 1.1" / 94 x 94 x 29 mm
Packaging Info Package Weight 1.25 lb
  Box Dimensions (LxWxH) 6.9 x 4.7 x 0.86"
