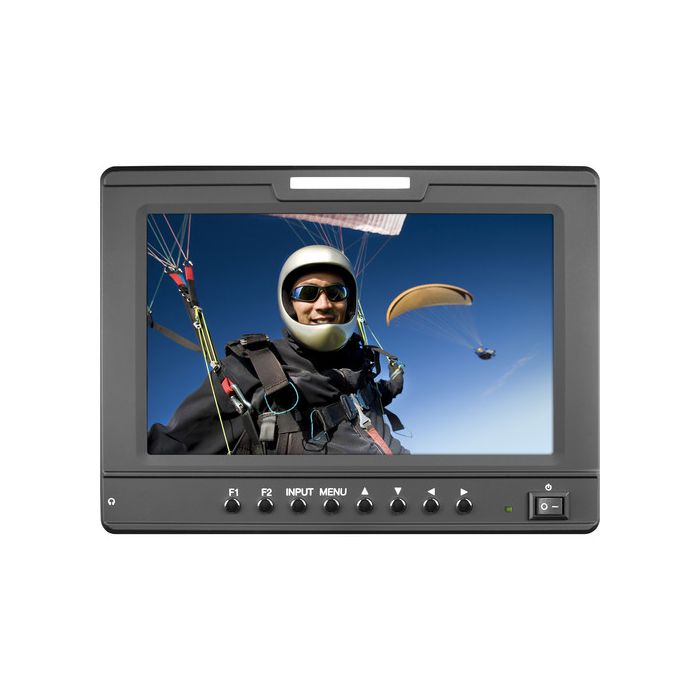

Marshall Electronics 7" 1024 x 600 Camera-Top Monitor with Sony Battery Mount
SKU
VLCD70AFHD-SL
$686.25
Product Highlights:
- Multiple inputs including HDMI, 3GSDI, Component and Composite
- Three color tally (Red, Yellow, Green)
- 1/4-inch mounting on 4 sides plus VESA mount
- Light weight for comfortable camera top use
- Audio level display from HDMI or SDI inputs
The 7" 1024 x 600 Camera-Top Monitor with Sony Battery Mount from Marshall Electronics features a 500 cd/m2 brightness output, 700:1 contrast ratio, and a 1024 x 600 resolution. It also features multiple inputs and allows you to move between HD, 3G, and analog formats. You can adjust the color, exposure, picture orientation, or the aspect ratio of the image from full screen to 4:3, 14:9 and 16:9 using the menu at the front of the monitor. The base plate mounts on to the back of the monitor and accepts different types of battery plates.
False Color Filter
The false color filter is used to set the camera exposure. As the camera iris is adjusted, elements of the image will change color based on the luminance or brightness values.
Peaking Filter
The peaking filter removes all the colors from the display and a black-and-white image remains. The internal processor will display red color on the screen where sharp edges appear. When the camera operator adjusts (or "racks") the focus control (on the camera lens), different parts of the image will have RED-colored edges, indicating that this portion of the image is sharp or in focus. Final focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has RED-colored edges.
Special Features
- Picture-in-picture
- Image flip
- False color level indication
- Peaking filter focus assist
- Zebra filters
- Screen markers
- HDMI CSC auto
- HDMI ratio auto
- Pre-set gamma points
- Self-sensing function
- Re-clocked/re-shaped function
Other Features
- Multiple inputs including HDMI, 3G-SDI, component, and composite
- Three color tally (Red, Yellow, Green)
- 1/4" mounting on four sides plus VESA mount
- Lightweight design
- Audio level display from HDMI or SDI inputs
- On-screen framing marks
- 4-pin XLR for ENG power supplies
Write Your Own Review
Items Included:
- Marshall Electronics 7" 1024 x 600 Camera-Top Monitor with Sony Battery Mount
- Marshall Electronics Base Plate for Quick Change Battery System
- Power Adapter
- Limited 1-Year Warranty (Extends to 2-Year with Registration)
|
