Product Highlights:
- 17.3" Display 1920 x 1080 LCD
- Supports NTSC & PAL
- SDI, HDMI & Composite Inputs
- 178° H/V Viewing Angles
- 300 nits Luminance
- 700:1 Contrast Ratio
- 16 Million Displayable Colors
- 3.5mm Headphone Jack

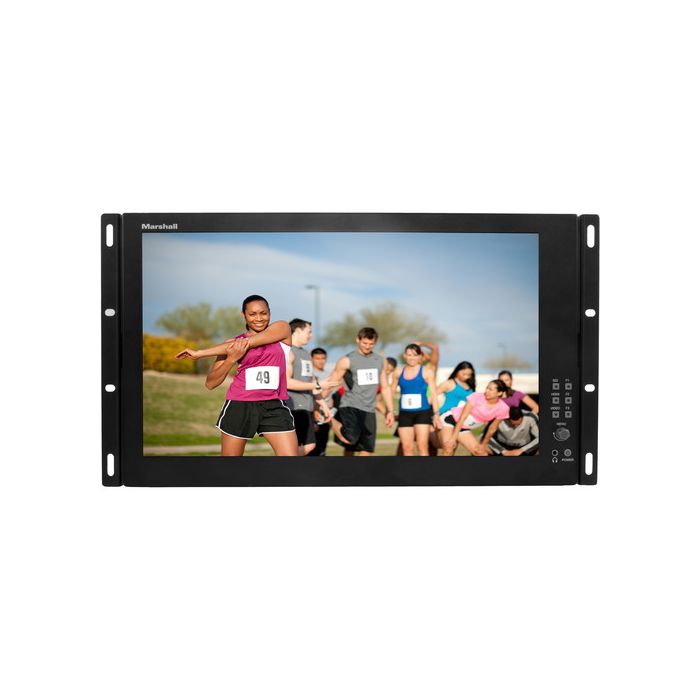

The 6 RU 17.3" Professional LCD Rackmount Monitor from Marshall Electronics features a 1920 x 1080 resolution, an aspect ratio of 16:9, and a contrast ratio of 700:1. The monitor comes with a range of professional adjustment settings and HDMI, SDI, Composite, and RCA inputs and outputs. In addition, there is a 15-pin tally connector port and a USB port for firmware updates.
The front panel features rackmount ears, an SDI button, video buttons, a menu navigation knob, an HDMI button, user-definable function buttons, a 3.5mm headphone jack, and a power button. The monitor comes with built-in histogram, peaking, false color, exposure, and adjustable safety markers and can monitor up to two audio channels as well. The monitor can be mounted via the VESA mounting holes to a stand or in an equipment rack with the included rack ears.
- Rec 709 compliant
- LED Tally lights
- HDMI/HDSDI inputs and outputs with conversion ability
- Range of broadcast and production adjustment settings including markers, brightness, contrast, aspect ratio, peaking, false color, exposure, histogram, and more
- Rack ears or VESA mount options
- BNC connectors
- Two-channel audio monitoring
- Image flip ability
- Headphone jack
Items Included:
- Marshall Electronics 17.3" Professional LCD Rackmount Monitor (6 RU)
- Rack Ears
- Limited 1-Year Warranty
