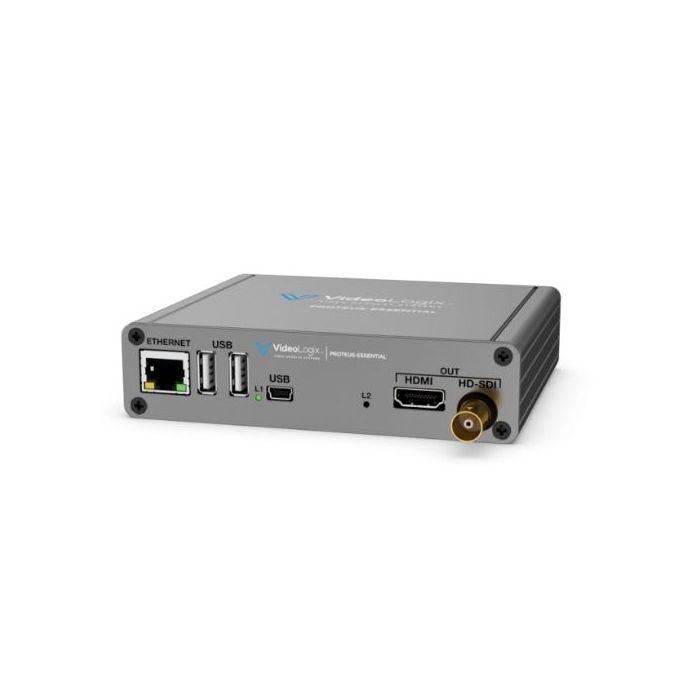

VideoLogix Proteus-Essential HD Video Overlay Device

SKU
VLPROTEUSESSENTIAL
Request for Price

Product Highlights:

  • HDMI + HD-SDI Inputs and Outputs
  • Text, graphics, data overlay, & PIP
VideoLogix

The primary purpose of PROTEUS-ESSENTIAL is to provide the ability to insert text, images, and data (GPS, NMEA 0183, NMEA 2000, Barcode scanner, and data from CSV sentences, Quadrature inputs, Analog inputs, IRIG time, SNTP time, etc) into an incoming HD & SD video.

PROTEUS-ESSENTIAL supports both HDMI, HD-SDI input & output. It does not need to be connected to a computer for configuration and/or normal operation.

Numerous apps (Reticle, XY Measurement, ROV Situation awareness, Aerial Situation Awareness, Compass, Sliders, etc.) have been developed to enhance this product.

VLPROTEUSESSENTIAL - Specification

More Information
General
General Features:Full High Definition Video Overlay
Stand-alone operation i.e. no PC required
Simple user interface for configuring screen via USB keyboard
Overlay data from any GPS modem ($GPRMC, $GPGGA, $PTSAG, etc.)
Overlay data from NMEA 0183 sensors ($GPWPL, $SDDPT, $SDDBT, $WIMTW, $WIMWV, $VNINS, $VNIMU, $VNYPR, $PTNTHPR, $HCHDG, $HCHDT, etc.)
Overlay data from NMEA 2000 sensors (PGN 129029, 129025, 128259, 130323, 128267, etc.)
Overlay values from CSV sentences received via RS-232, USB, Ethernet
Overlay texts such as user titles, time, date, latitude, longitude, etc.
Jam Sync Timecode with GPS, IRIG, RTC
Overlay PNG & JPG images
Superimpose composite (NTSC/PAL) video input over HD video input (PIP)
Built-in Compass and Tilt (Pitch & Roll) sensors
User configurable fonts
Over 30 drawing commands through RS232, Ethernet, USB
Battery backed up real time clock (RTC)
Per pixel alpha blending
1920 x 1080 OSD overlay resolution
Video:HD-SDI input
HD-SDI output
HDMI input
HDMI output
Composite input (Viewable only as PIP over HD video input)
1080i @ 50, 59.94, 60 Hz
720p @ 50, 59.94, 60 Hz
1080p @ 23.98, 24, 25, 29.97, 30 Hz
480i (NTSC), 576i (PAL)
Fast video input to output delay i.e. 0.5 μ
Communication Ports:2 x RS232
1 x CAN
1 x USB2.0 Device
2 x USB2.0 HOST
1 x Ethernet 10/100 (Static or DHCP IPv4 addressing)
1 x IRIG-B
Additional Features:Analog Inputs: Convert analog inputs to speed, depth, pressure… 2
Quadrature Inputs: Convert count to distance, speed…
Supported Devices: GD Cineflex, Bar code scanners, VectorNav GPS/INS, Smartmicro radar
Apps: XY Measurements, Reticle, Rov situation awareness, Aerial situation awareness, Count up/down timer
Graphics Widgets: Slider, Com
Design + Dimensions:Box Dimensions (mm) 125 x 106 x 30
Weight (1lb)
Power (6-42VDC, 4W)
2-year warranty
Operating Temperature Range: 0-65°
