VideoLogix Proteus Lite Text & Graphics Inserter

SKU
VLPROTEUSLITE
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • HDMI + HD-SDI Inputs and Outputs
  • Full HD and SD Overlays
  • Texts, Images (PNG & JPG), Time/Date, GPS data inserter
main product photo

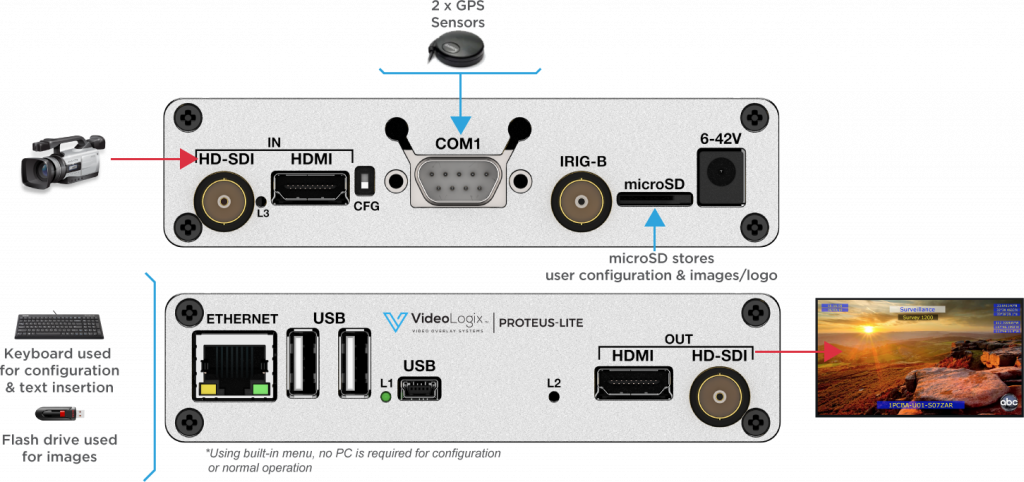

The primary purpose of PROTEUS-LITE is to provide the ability to insert text, images, and data (GPS, NMEA 0183, Barcode scanner) into an incoming HD & SD video.

PROTEUS-LITE supports both HDMI, HD-SDI, input & output. It does not need to be connected to a computer for configuration and/or normal operation.

Write Your Own Review
You're reviewing:VideoLogix Proteus Lite Text & Graphics Inserter
Your Rating

VideoLogix Proteus Lite - User Manual (Size: 1.4 MB)
VideoLogix Proteus Lite - Brochure (Size: 10.2 MB)

VLPROTEUSLITE - Specification

More Information
General
General Features:Full High Definition Video Overlay
Stand-alone operation i.e. no PC required
Simple user interface for configuring screen via USB keyboard
Overlay data from GPS modem ($GPRMC, $GPGGA, $PTSAG, etc.)
Overlay data from NMEA 0183 sensors ($GPWPL, $SDDPT, $SDDBT, $WIMTW, $WIMWV, $VNINS, $VNIMU, $VNYPR, $PTNTHPR, $HCHDG, $HCHDT, etc.)
Overlay texts such as user titles, time, date, latitude, longitude, etc.
Overlay PNG & JPG images
Built-in Compass and Tilt (Pitch & Roll) sensors
User configurable fonts
Battery backed up real time clock (RTC)
Per pixel alpha blending
1920 x 1080 OSD overlay resolution
Video:HD-SDI input
HD-SDI output
HDMI input
HDMI output
1080i @ 50, 59.94, 60 Hz
720p @ 50, 59.94, 60 Hz
1080p @ 23.98, 24, 25, 29.97, 30 Hz
480i (NTSC), 576i (PAL)
Fast video input to output delay i.e. 0.5 μ
Communication Ports:2 x RS232
1 x USB2.0 Device
2 x USB2.0 HOST
1 x IRIG-B
Design + Dimensions:Box Dimensions (mm) 125 x 106 x 30
Weight (1lb)
Power (6-42VDC, 4W)
2-year warranty
Operating Temperature Range: 0-65°
