Vitec MGES 6000

SKU

VIMGES6000

Request for Price

Product Highlights:

Choice of HD and SD license configurations for each IPTV encoding port
Secondary stream capabilities for OTT, PIP, LAN/WAN dissemination and more
Best in class video quality at bit rates from 150 Kbps to 15 Mbps configurable for each primary and secondary channel
Real-time AES-256/128-bit encryption

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

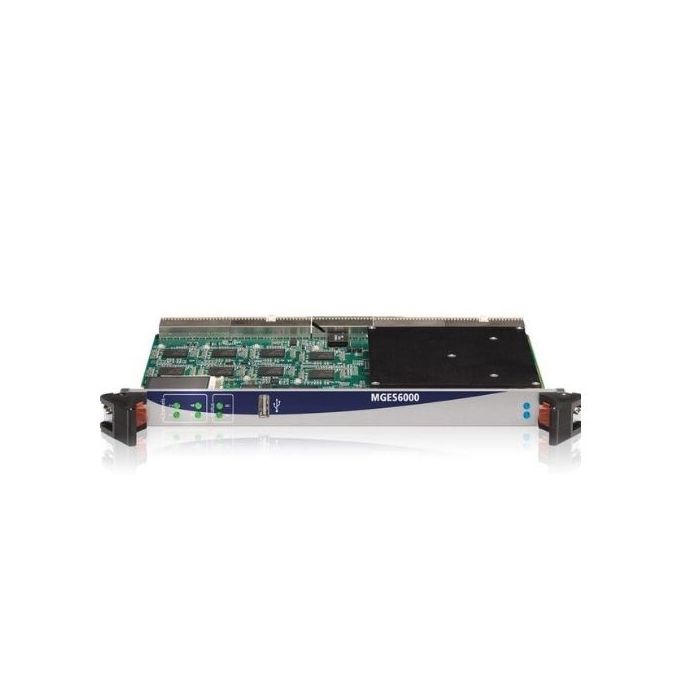

he MGES-6000 Blade provides real-time hardware encoding of HD and SD video for all IPTV applications. It provides best-in-class picture quality with features including a secondary low-res channel, integrated resolution and frame-rate scaling, streaming to as many as seven IP destinations from each port, and optional AES-256/128-bitencryption for securing classified or premium content.

Reviews

Write Your Own Review

You're reviewing:Vitec MGES 6000

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

Downloads

Specification

VIMGES6000 - Specification

More Information

HD Encoding
Video Codec:	Conforms to ISO / IEC14496-10 (H.264/AVC) High Profile Level 4.0 1920 x 1080 59.94i/29.97p/60i/30p/50i 1280 x 720 59.94p/29.97p/60p/30p/50p Chroma sampling: 4:2:0 Encoding rate: 500 Kbps to 15 Mbps Aspect Ratios 16:9 CBR Support with Optibase Smoothing™ algorithm Downscaling from HD to HD and HD to SD (down to QCIF)
Audio Codec:	Up to 2 stereo pairs (embedded in SDI or HDMI, Unbalanced in Analog) Sampling Frequencies: 48khz AAC LC (32 to 384Kbps) MPEG 1 Layer 2 (32 to 384Kbps) Mono, stereo
SD Encoding
Video Codec:	Conforms to ISO / IEC14496-10 (H.264/AVC) Baseline and Main Profile Level 3.0 720 x 480 x 29.97i/15i 720 x 576 x 25i/12i Chroma sampling: 4:2:0 Encoding Rate: 200 Kbps to 6 Mbps Aspect Ratio: 4:3 and 16:9 CBR Support with Optibase Smoothing™ algorithm Various downscaling options to as low as QCIF resolution
Audio Codec :	Up to 2 stereo pairs embedded in SDI and Unbalanced in Analog, 1 stereo pair for HDMI Sampling Frequencies: 48khz 16bit support AAC LC (32 to 384Kbps) MPEG-1 Audio Layer 2 (56 to 384kbps) Mono, stereo
Closed Captioning
Audio Codec :	CEA 608 from Line 21 and CEA 708 VANC extraction per SMPTE 334M
Inputs and Outputs
Available Input Blades:	4 x Serial Digital inputs, 75 Ohms BNC connectors (HD/SD-SDI Interface) 4 x HDMI (HD/SD) with support for protected (HDCP) and unprotected sources 4 x Composite analog inputs, 75 Ohms BNC connectors (Analog Interface)
Audio Inputs:	Embedded audio up to 2 stereo pairs per video source for HD/SD-SDI and HDMI Unbalanced analog audio (RCA connector) up to 2 stereo pairs per video source
Transport Outputs:	MPEG-2 Transport Stream encapsulaiton over UDP/IP
