General |
Video Inputs: | · 1 x HD-SDI/SD-SDI (SMPTE 259M-C, SMPTE 292M,
SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M)
· 1 x HDMI (support for HDCP and non-HDCP protected
sources), MIL-DTL-38999 Circular connector
· 1 x Analog Composite RS-170 (BNC, 75 Ohm. Optional)
|
Input Resolutions / frame rates:: | 1920x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24 Hz
1920x1080i @ 60, 59.94, 50 Hz
1600x1200p @ 85, 60, 50 Hz
1366x768p @ 60, 50 Hz
1280x1024p @ 60, 50 Hz
1280x800p @ 60, 50 Hz
1280x768p @ 60, 50 Hz
1024x768p @ 60, 50 Hz
1280x720p @ 60, 59.94, 50, 30, 29.97, 25 Hz
720x480p @ 30, 29.97 Hz
720x480i @ 59.94 Hz
720x576p @ 25 Hz
720x576i @ 50 Hz |
Audio Inputs: | · 1 x SDI Embedded audio (Stereo and Mono)
· 1 x HDMI Embedded audio (Stereo and Mono) |
Video Output: | · H.264 (ISO\IEC 14496-10 AVC MPEG-4 part 10). Modes:
o Baseline Profile L3
o Main Profile L3 and L4
o High Profile L4 and L4.1
· Bit Rate: 100 Kbps - 14 Mbps
· Frame Rate: 5-60 fps. Down sampling modes: third, half, three quarters
· Bit Rate Regulation Modes: Constant (CBR), Variable (VBR)
· Output Resolutions: Configurable from QCIF up to 1920x1080p30 / 1280x720p60
· Encoding Latency: 65 milliseconds (TurboVideo™ mode) |
Audio Output: | · MPEG-4 AAC-LC (ISO/IEC 14496-3), MPEG-1 L2
· Stereo and mono modes
· Bit Rate: 32Kbps - 256Kbps in Stereo, 16Kbps - 128Kbps in Mono
· Sampling Rate: 16 kHz - 48 kHz |
Network Protocols: | Streaming Modes:
o UDP TS, RTP TS, RTP ES TurboVideo™
· Error-Correction Technologies:
o RTP TS with Forward-Error-Correction (FEC SMPTE 2022), Zixi™ Error Correction (with KLV/STANAG Metadata)
· Peripheral:
o HTTPS, DHCP, NTP, SSH, SAP |
Management: | · Secure Web based remote management interface (HTTPS)
· Dashboard with dynamically updating I/O signal detection and streaming stats
· Autostart mode recovers saved configuration after power cycle
· Remote firmware and software upgrade capability via command line / web-GUI
· System and channel event logging
· SSH interface with “get/set” or XML API for integration with 3rd party control software |
Security: | · Real-time AES encryption for video, audio and metadata. Interoperability with EZ TV and FITIS systems
· Password protected browser and CLI control interfaces |
Metadata: | CoT over serial RS-232, KLV over serial/IP, KLV over SDI (VANC per SMPTE 336M)
· UAS Datalink Local Metadata Set (MISB STD 0601.5, STD 0902)
· Time Stamping and Transport of Compressed Motion Imagery and Metadata (MISB STD 0604.2)
· Cursor on Target (CoT) Conversions to Key- Length-Value (KLV) Metadata (MISB EG 0805)
· Security Metadata Universal and Local Sets for Digital Motion Imagery (MISB STD 0102.8)
· STANAG 4609 output stream over UDP/IP
· JITC-MIS Compliant streaming of HD/SD ISR video |
Environmental / Regulation: | Operating Temperatures: -40º C to +70º C (-40º F to +158º F)
· Relative Humidity: 5% to 95%
· MTBF: Ground – 9.00 years. Airborne – 12.70 years (As per MIL-HDBK-217F)
· MIL-STD-810G Certified
· MIL-STD-461F Certified
· Not controlled under ITAR
· TAA Compliant |
Physical: | · 1.46" H x 5.59" W x 5.51" D (37.2mm H x 142mm W x 140mm D)
· 2.07lb (0.94Kg)
· Enclosure: Military-grade rugged aluminum case, composite MIL connectors
· Status LED's for power, network activity, streaming and video source indications
· Fan-less, no moving parts design, 100% silent operation
· Mounting holes for seamless installation in vehicles / flat surface |
Advanced Features: | · Low latency HD/SD streaming from SDI or HDMI sources with metadata
· Hardware based resolution and frame rate scaling
· Real-time image stabilization and cropping (Area of Interest Isolation)
· Motion-adaptive adjustment of bit-rate utilization in static scenes
· Zixi™ Real-Time Error Correction guarantees secure and artifact-free full motion video on networks with packet loss
of up to 30% |
Power: | · DC Input: 16-40VDC, Max 12W
· MIL-STD-38999 series III Circular Connector
· MIL-STD-704 |

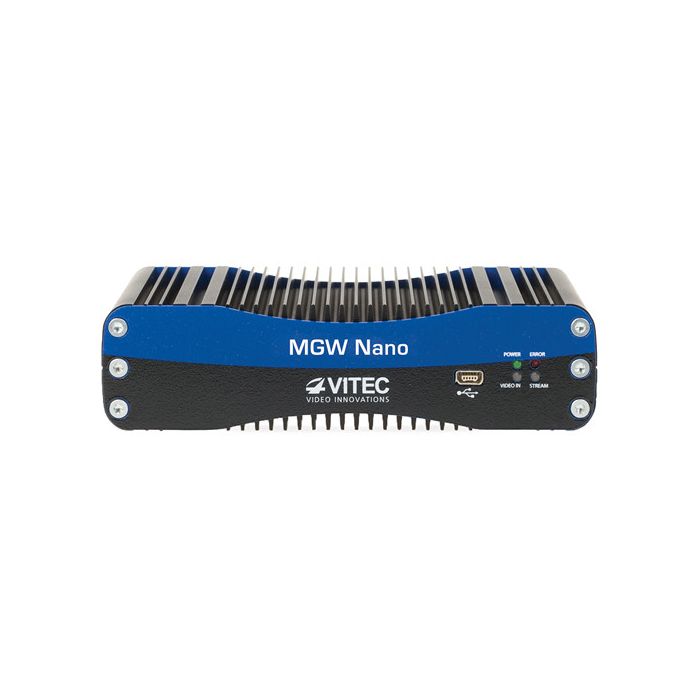

Ordering Information: | 14696 MGW Nano TOUGH HD/SD
|
Rear Panel Interfaces: | 1 Ethernet + HW Reset
2 Power 16-40VDC, Max 12W, MIL-STD-704
3 Serial RS-232 Tx/Rx + Analog Audio
4 3G / HD/SD-SDI / Composite Video Input
5 HDMI Video/Audio Input |
