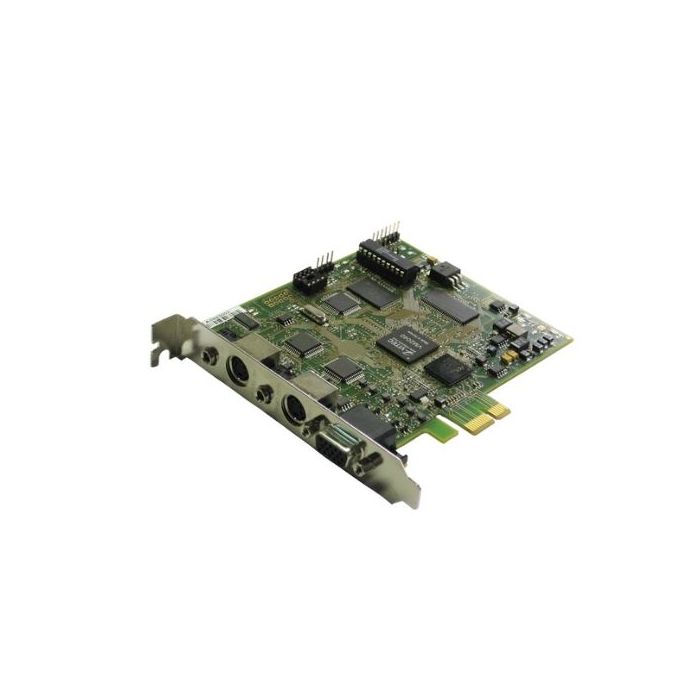

| VIDEO SPECIFICATIONS |
| Inputs: | 4x Composite or 2x S-video |
| Outputs: | Composite, S-video, RGBs |
| Compression
MPEG-4
MPEG-2 (4:2:0)
MPEG-1: | 1 to 15 Mbit/s
128 Kbit/s to 3 Mbit/s |
| MPEG-4 Compression
ISMA Level 1
MPEG-4 profile
System stream
Bitrate regulation mode: | |
| MPEG-2 (4:2:0) Compression
Elementary streams
Mux
DVD, SVCD compliance
Bitrate regulation mode: | 1 to 15 Mbit/s
Yes
PS / TS
Yes
CBR / VBR |
| MPEG-1 Compression
Elementary / System streams
VCD 2.0, XVCD compliance
Bitrate regulation mode: | 128 Kbit/s to 3 Mbit/s
Yes
Yes
CBR / VBR |
| Aspect ratios: | 4/3 & 16/9 |
| Preview on VGA: | Yes |
| Frame rate: | 29.97 (NTSC) /
25 (PAL/SECAM) |
| VBR with Average and Max settings: | Yes |
| VBR with Fixed Quantizer: | Yes |
| GOP d n efinitio: | I, IP, IBP, IBBP, … |
| IBP distance setting, closed GOP: | Yes |
| Scene Change Detection: | Yes |
| Inputs: | 4x Composite or 2x S-video |
| Outputs: | Composite, S-video, RGBs |
| Compression
MPEG-4
MPEG-2 (4:2:0)
MPEG-1: | 64 Kbit/s to 6 Mbit/s
1 to 15 Mbit/s
128 Kbit/s to 3 Mbit/s |
| MPEG-4 Compression
ISMA Level 1
MPEG-4 profile
System stream
Bitrate regulation mode: | 64 Kbit/s to 6 Mbit/s
Yes
ASP / level 0-5 (1 object)
Yes
CBR / VBR / CFR |
| MPEG-2 (4:2:0) Compression
Elementary streams
Mux
DVD, SVCD compliance
Bitrate regulation mode: | 1 to 15 Mbit/s
Yes
PS / TS
Yes
CBR / VBR |
| MPEG-1 Compression
Elementary / System streams
VCD 2.0, XVCD compliance
Bitrate regulation mode: | 128 Kbit/s to 3 Mbit/s
Yes
Yes
CBR / VBR |
| Aspect ratios: | 4/3 & 16/9 |
| Preview on VGA: | Yes |
| Frame rate: | 29.97 (NTSC) /
25 (PAL/SECAM) |
| VBR with Average and Max settings: | Yes |
| VBR with Fixed Quantizer: | Yes |
| GOP d n efinitio: | I, IP, IBP, IBBP, … |
| IBP distance setting, closed GOP: | Yes |
| Scene Change Detection: | Yes |
| DEVELOPERS RESSOURCES |
| Operating systems: | Windows 7 (32 & 64 bit) / XP / 2000
Linux Kernel 2.4 / 2.6
(RedHat, SuSE, …) |
| Development kits: | LiveWire framework
Demo appli. source code |
| Operating systems: | Windows 7 (32 & 64 bit) / XP / 2000 |
| Development kits: | LiveWire framework
Demo appli. source code |
| SYSTEM CONFIGURATION |
| Minimum configuration: | P4 - 1.8 GHz
256 MB RAM |
| PCI compliance: | PCIe (1 lane) |
| Dimensions of the board: | 120 x 96 mm
(4.72” x 3.78”)
|
| Power consumption: | 3 W (PCI) / 4.8 W (PCIe) |
| Minimum configuration: | P4 - 3 GHz
256 MB RAM |
| PCI compliance: | PCIe (1 lane) |
| Dimensions of the board: | 120 x 96 mm
(4.72” x 3.78”) |
| Power consumption: | 3 W (PCI) / 4.8 W (PCIe) |
| AUDIO SPECIFICATIONS |
| Inputs: | 1x Mini Jack Stereo |
| Outputs: | MPEG-1 Layer 2
AC-3, PCM |
| Formats: | Mono, Stereo, Dual Stereo,
JointStereo
128 to 384 Kbit/s
96 to 648 Kbit/s
32, 44.1, 48 KHz
16 bits |
| Encoding parameters
Operating modes
MPEG-1 Layer 2 Bitrate
AC-3 Bitrate
AAC-LC Bitrate
Sampling Frequencies
Bits per sample: | Mono, Stereo, Dual Stereo,
JointStereo
128 to 384 Kbit/s
96 to 648 Kbit/s
32, 44.1, 48 KHz
16 bits |
| Inputs: | 1x Mini Jack Stereo |
| Outputs: | 1x Mini Jack Stereo |
| Formats: | MPEG-1 Layer 2
AC-3, PCM
AAC-LC |
| Encoding parameters
Operating modes
MPEG-1 Layer 2 Bitrate
AC-3 Bitrate
AAC-LC Bitrate
Sampling Frequencies
Bits per sample: | Mono, Stereo, Dual Stereo,
JointStereo
128 to 384 Kbit/s
96 to 648 Kbit/s
96 to 384 Kbit/s
(96 Kbit/s for CD quality)
32, 44.1, 48 KHz
16 bits |
| STILL IMAGE WHILE ENCODING |
| Resolution: | FD1 / SIF |
| Field or Frame (2 fields) Capture: | Yes |
| Resolution: | FD1 / SIF
|
| Field or Frame (2 fields) Capture: | Yes |
| ADVANCED FEATURES |
| Brightness, Contrast, Saturation, Hue
adjustments: | Yes |
| Audio level adjustment: | Yes |
| Audiometer overlaid on preview: | Yes |
| Status overlaid on preview: | Yes |
| Pause / Resume mode: | Yes |
| Split mode (back to back files): | Yes |
| Skip frame mode
(reduced frame rate & regular playback): | Yes |
| Drop frame mode (reduced frame
rate & accelerated playback): | Yes |
| 24/7 Very Long Encoding: | Yes |
| Append (open a closed file
and continue recording)
: | Yes |
| Rewind (open a closed file, seek overwrite
and continue recording): | Yes |
| Multiboarding: | Yes |
| On Screen Display (OSD): | Yes |
| Brightness, Contrast, Saturation, Hue
adjustments: | Yes |
| Audio level adjustment: | Yes |
| Audiometer overlaid on preview: | Yes |
| Status overlaid on preview: | Yes |
| Pause / Resume mode: | Yes |
| Split mode (back to back files): | Yes |
| Skip frame mode
(reduced frame rate & regular playback): | Yes |
| Drop frame mode (reduced frame
rate & accelerated playback): | Yes |
| 24/7 Very Long Encoding: | Yes |
| Append (open a closed file
and continue recording)
: | Yes |
| Rewind (open a closed file, seek overwrite
and continue recording): | Yes |
| Multiboarding: | Yes |
| On Screen Display (OSD): | Yes |
