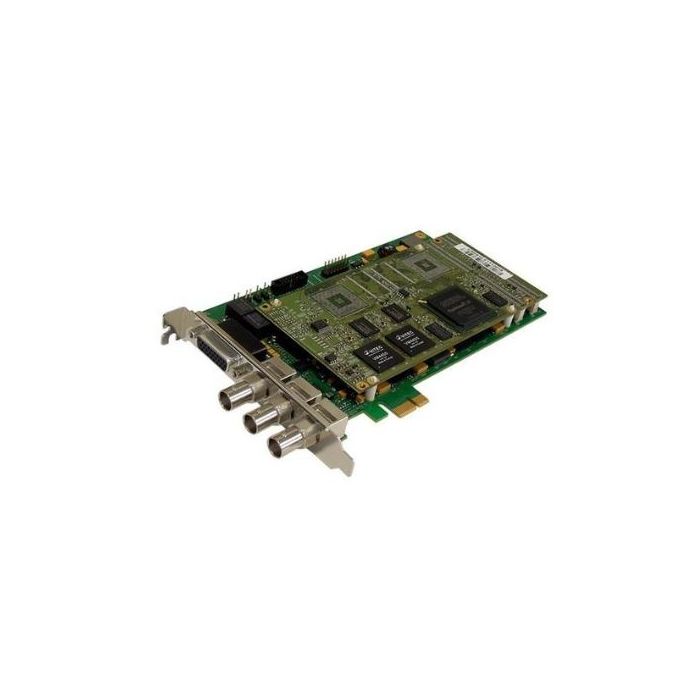

VIVMC7440 - Specification
| VIDEO SPECIFICATIONS |
| Inputs: | Composite,
HD-SDI, SDI |
| Outputs: | Composite,
HD-SDI, SDI |
| Compression: | (HD&SD) H.264 (4:2:0) |
| AUDIO SPECIFICATIONS |
| Inputs: | Analog balanced
& unbalanced stereo,
AES-EBU,
embedded SDI (16) |
| Formats: | MPEG-1 Layer 2
AC-3, PCM
AAC-LC |
| Number of encoding channels: | (Analog (2), AES-EBU (2),
SDI embedded (2) |
| Encoding parameters
Operating Mode
AAC Bitrate
MPEG-1 Layer 2 Bitrate
AC-3 Bitrate
Sampling frequency
Bits per sample: | Stereo
64 to 128 Kbit/s
32 to 640 Kbit/s
32 to 640 Kbit/s
48 Khz
16 bits |
| VIDEO FORMAT SUPPORTED |
| Format / Resolution
1080p / 1920 x 1080
1080i / 1920 x 1080
1080i / 1440 x 1080
720p / 1280 x 720
NTSC / 720 x 480
PAL / 720 x 576
NTSC / 720 x 480
PAL / 720 x 576
UXGA (downscale in SXGA)
SXGA
XGA: | Frame Rate /s
30, 29.97, 25, 24, 23.976
30, 29.97, 25, 24, 23.976
30, 29.97, 25, 24, 23.976
60, 59.94, 50, 30,
29.97, 25, 24, 23.976
29.97
25 |
| STILL IMAGE WHILE ENCODING |
| Resolution: | Native resolution |
| Special: | Deinterlacing |
| ADVANCED FEATURES |
| VITC: | Yes |
| Brightness, Contrast, Saturation, Hue: | Yes |
| adjustments: | Yes |
| Audio level adjustment: | Yes |
| Status overlaid on preview: | Yes |
| Audiometer overlaid on preview: | Yes |
| Pause / Resume mode: | Yes |
| Multiboarding: | Yes |
| Dual encoding: | Yes |
| (2 files from a unique video source): | Yes |
| 24/7 very long encoding: | Yes |
| DEVELOPERS RESSOURCES |
| Operating Systems: | Windows 7 / Vista / XP /
Server 2003& 2008 (32 bit) |
| Development Kits: | LiveWire framework
Demo application
source code |
| SYSTEM CONFIGURATION |
| Minimum configuration: | P3 - 800 MHz,
512 MB RAM |
| Dimensions of the board: | PCIe (1 lane) |
| PCI compliance: | 180 x 111.15 mm
(7.08” x 4.37”) |
| Power consumption: | 18 W |
| Compression
Bitrate HD format
Bitrate SD format
Bitrate regulation mode
MUX
Elementary stream: | (HD & SD) H.264 (4:2:0)
2 to 50 Mbit/s
600 Kbit/s to 10 Mbit/s
CBR / VBR
TS / MP4
Yes |
| Aspect ratios: | 4/3 & 16/9 |
| Inputs: | Composite
HD-SDI, SDI |
| Outputs: | Composite,
HD-SDI, SDI |
| Preview on VGA: | Yes |
| GOP definition: | I, IP, IBP, IBBP, … |
| Closed captionning: | Yes |
| IP distance setting: | Yes |
| Ancillary data and VBI: | Yes |
| AVC profile
: | MP@L3 / HP@L4.1 |
| AVC Tools: | Deblocking filter, CABAC,
MBAFF, Multislices,
Adaptive noise filter |
|
