Marshall Electronics VS-11 H.264 Encoder / Decoder

SKU
VS-11
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • H.264 and MJPEG Video Compression
  • D1 720 x 480 Resolution at up to 30 fps
  • RS-232 Port for Camera Control
  • Two-Way Audio Communication

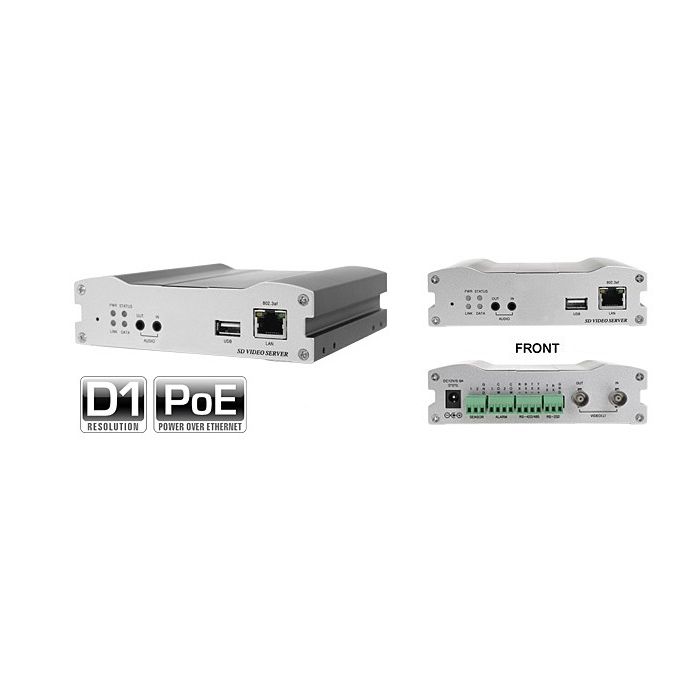

main product photo

Embrace complete encoding and decoding with the VS-11 H.264 Encoder/Decoder from Marshall Electronics. Capable of H.264 and H.264 dual streaming with high resolution D1 720 x 480 footage at up to 30 fps, this device will easily handle a variety of IP cameras and present clear footage to your displays and systems. It also offers an RS-232 port for remote camera control and has input and output for audio, allowing for two-way communication. Another benefit of this unit is integrated video motion detection for tracking subjects that appear in the frame.

Other built in features of the VS-11 include Dynamic Domain Name Server support and the ability to transmit video data through an FTP server. Also, it has composite video input and output, watchdog for system recovery and bit rate choices between 32 kbps to 10 Mbps. Along with all this, it has two sensor inputs and two alarm outputs for immediate notification of certain situations and instant recording to an optional USB storage device. Additionally, it has 802.3af PoE and is both PSIA and ONVIF compliant.



Write Your Own Review
You're reviewing:Marshall Electronics VS-11 H.264 Encoder / Decoder
Your Rating

VS-11 - Specification

More Information
System
System Mode:Encoder, Decoder
Network
Network Interface:Ethernet 10/100Base-T (RJ-45)
Network Protocol:TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP
Video
Standards:H.264 compression algorithm
Bitrate:32 ~ 10,240 Kbps
Resolution:NTSC : 720x480, 720x240, 352x480, 352x240
PAL : 720x576, 720x288, 352x576, 352x288:
Max Frame Rate:NTSC: Max 30fps / PAL: Max 25fps
Frame Rate Range:NTSC: 0.2 ~ 30fps / PAL: 0.2 ~ 25fps
Input:1 Composite (1 Vpp 75 Ohm, BNC)
Output 1:1 Composite (1 Vpp 75 Ohm, BNC)
Motion Detection:Sensitivity Adjustment
Audio
Standards:G.711, AAC
Sample Rate:G.711: 8kHz / AAC: 32kHz
Data Rate:G.711: 64Kbps / AAC: 64Kbps, 128Kbps
Input:1 x Line-In (Mini-stereo, Single Mono)
Output:1 x Line-Out (Mini-stereo, Single Mono)
:
Serial
Port 1:1 x RS-232 (Terminal Block)
Port 2:1 x RS-422/485 (Terminal Block)
Data Rate:2,400bps ~ 115,200bps
Sensor/ Alarm
Sensor Input:2 x NO Contact (Terminal Block)
Alarm Output:2 x NO Contact (Terminal Block)
Beep:1 x Buzzer 88dB Min
Reset Button:1 x Factory Reset Button
User Interface
System Status:4 x LED
Storage
Recording/Backup:1 x USB 2.0 Port
Software
VS Manager / VMS-16 NVR:Live Monitoring, Recording, Search & Playback, Backup
Physical
Dimensions:134(W) x 125(D) x 35(H)mm
Weight:464g
Power:DC 12V/0.5A, PoE(Power over Ethernet): 802.3af
Power Consumption:Max 7.2W
Operating Temp.:-10° C ~ 50°C / 14°F ~ 122°F
Audio Input 1 x Line-In (Mini-stereo, Single Mono)
Video O/P 1 Composite (1 Vpp 75 Ohm, BNC)
Video i/p 1 Composite (1 Vpp 75 Ohm, BNC)
Audio Output 1 x Line-Out (Mini-stereo, Single Mono)
