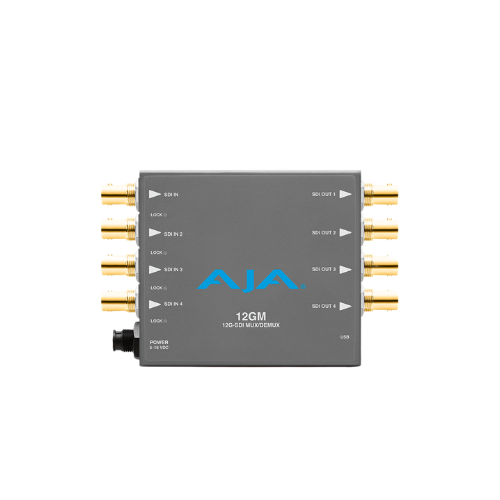

AJA 12GM 12G-SDI to/from SDI Muxer/DeMuxer

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Supports 12G, 6G, 3G, and 1.5G SDI signal transport
Converts between quad link, dual link, and single link SDI
Compatible with 4K, UltraHD, 2K, HD, and SD formats
Supports Two-Sample Interleave and Square Division mapping
HDR metadata pass-through and override support
Embedded audio pass-through up to 16 channels
Frame rate conversion between fractional and integer rates
Built-in signal diagnostics and timing analyzer
Can operate as a 1x4 distribution amplifier
USB configuration via AJA Mini-Config software
Compact design with low power consumption

Pricing Dhs. 4,544.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

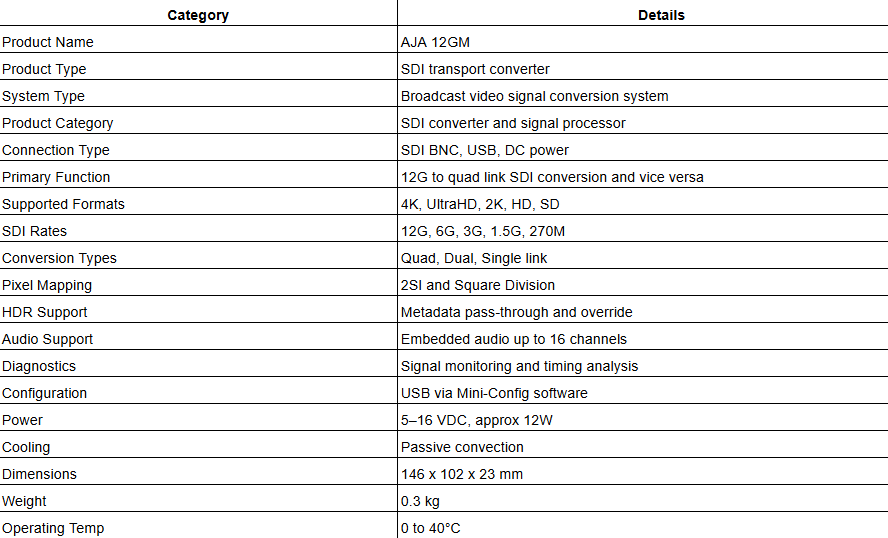

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Introduction

AJA 12GM is a compact SDI transport converter designed for high-performance broadcast workflows. It enables seamless conversion between single-link and multi-link SDI formats in modern production environments.

Purpose and Function

The device functions as a muxer and demuxer, allowing conversion between 12G-SDI and quad link 3G-SDI signals. It simplifies signal transport across different infrastructures.

Format Support

It supports a wide range of formats including 4K, UltraHD, 2K, HD, and SD, making it suitable for diverse broadcast and production needs.

Conversion Flexibility

AJA 12GM handles quad, dual, and single link conversions across multiple SDI data rates. It also supports Dual-Link and Dual-Stream workflows for added flexibility.

Advanced Processing

The unit includes support for pixel mapping conversions, HDR metadata handling, and frame rate conversion, ensuring compatibility with advanced video workflows.
