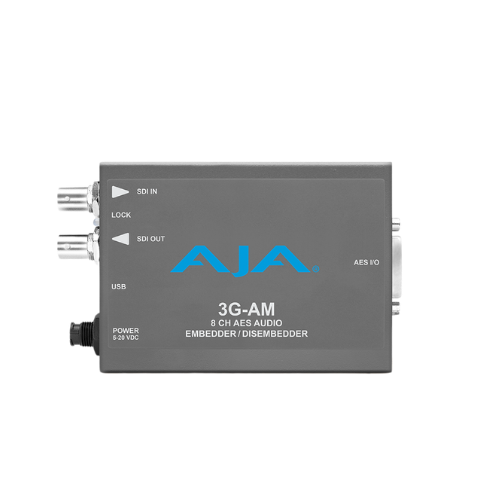

AJA 3G-AM 3G-SDI 8-Channel AES Audio Embedder/Disembedder Mini-Converter

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

8-channel AES audio embedder and disembedder
Supports 3G-SDI input and output up to 1080p60
Simultaneous audio embedding and disembedding
Four AES outputs are always active for disembedding
Selectable embedding on channel pair basis
Automatic video format detection
AES sample rate conversion to 48 kHz
Supports HDR metadata pass-through
Breakout cable options with XLR or BNC connectors
Compact Mini-Converter design
USB configuration via AJA Mini-Config software
DIP switch control for quick setup
Reliable low-power operation

Pricing Dhs. 3,808.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

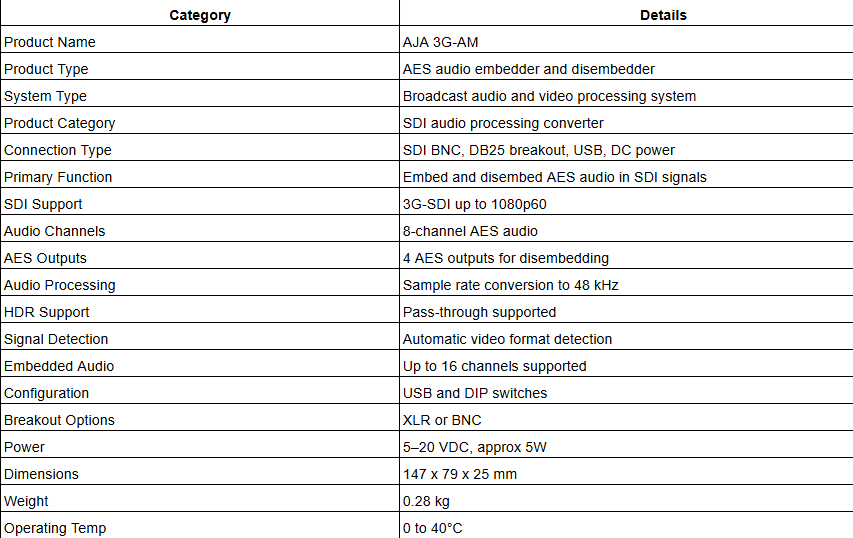

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

AJA 3G-AM is a compact audio embedder and disembedder designed for HD and SD broadcast workflows. It provides flexible integration of AES audio with SDI video signals.

Purpose and Function

The device allows users to extract embedded audio from SDI signals and insert external AES audio into the SDI stream. This enables efficient audio routing and management in production environments.

Video and Audio Support

It supports 3G-SDI signals up to 1080p60 and offers 8-channel AES audio I/O. Disembedding is always active, while embedding can be configured per channel pair for flexibility.

Audio Processing

AES inputs are automatically sample rate converted to 48 kHz, ensuring synchronization with the incoming video signal. This maintains stable and consistent audio performance.

Workflow Flexibility

Users can choose between passing existing SDI audio or replacing it with AES input audio. This allows precise control over audio handling in broadcast setups.
