Overview of the AJA C10DA

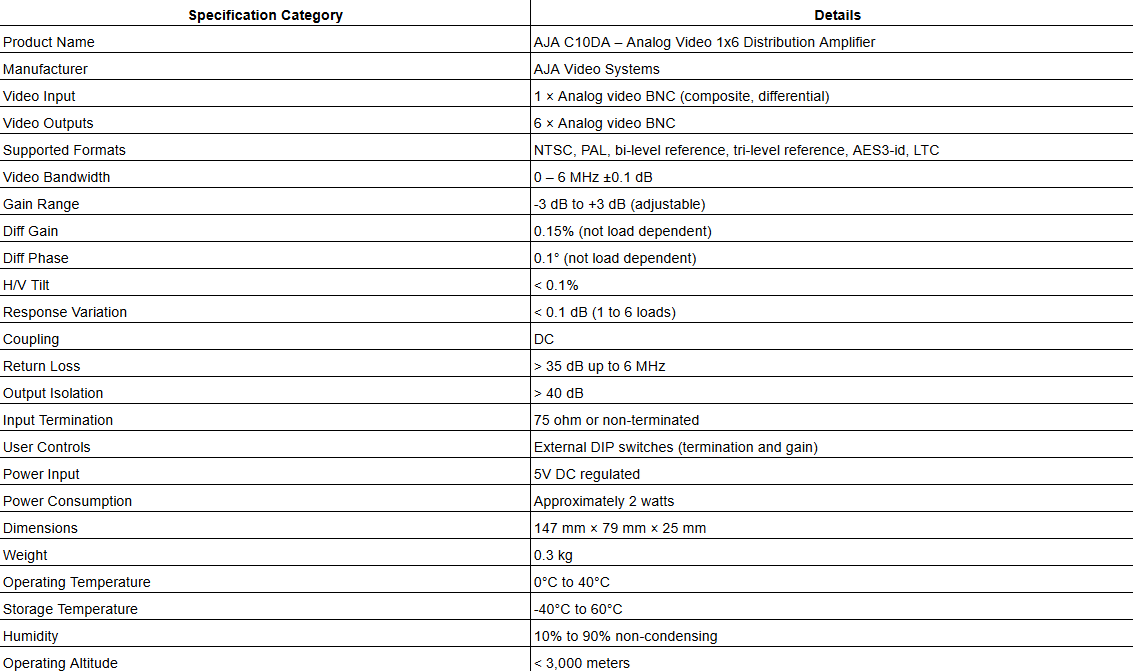

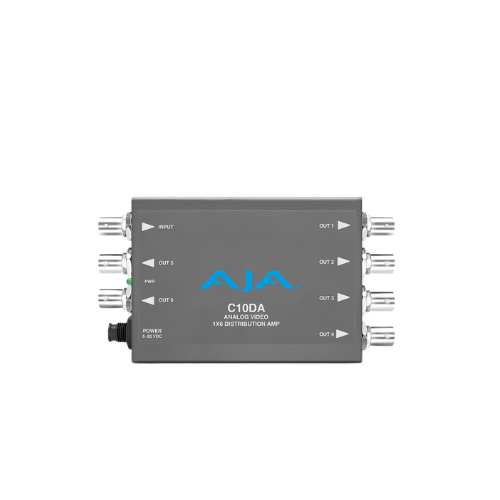

The AJA C10DA is a compact analog video distribution amplifier designed to distribute a single composite video signal into multiple outputs. Manufactured by AJA Video Systems, it is built for professional broadcast and video environments where reliable analog signal duplication is required.

Analog Signal Distribution

The device takes one analog video input and distributes it to six outputs. Each output delivers the same signal, making it suitable for feeding multiple monitors, recording devices, or other video equipment from a single source.

Format Support and Compatibility

The C10DA supports NTSC and PAL composite video formats. In addition to video signals, it can also handle reference signals such as bi-level and tri-level sync, as well as AES3-id and LTC, making it adaptable to various production workflows.

Gain Control and Signal Compensation

The unit includes adjustable gain settings ranging from -3 dB to +3 dB. This allows users to compensate for signal loss over longer cable runs, ensuring consistent signal strength across all outputs.

Sync Distribution Capability

In HD environments, the C10DA can be used to distribute tri-level sync when a sync signal is fed into the video input. This makes it useful not only for video distribution but also for synchronization across multiple devices.

Signal Quality and Stability

The amplifier maintains high signal integrity with low differential gain and phase distortion. It also provides strong output isolation and return loss performance, ensuring minimal signal interference between outputs.

Design and Deployment

Its miniature form factor allows flexible installation behind monitors, in racks, or on production rigs. The device includes DIP switch controls for termination and gain settings, enabling quick configuration without complex setup procedures.

Use Cases

The C10DA is commonly used in broadcast facilities, live production environments, and legacy analog systems where composite video signals or reference signals need to be distributed reliably to multiple endpoints.
