Introduction

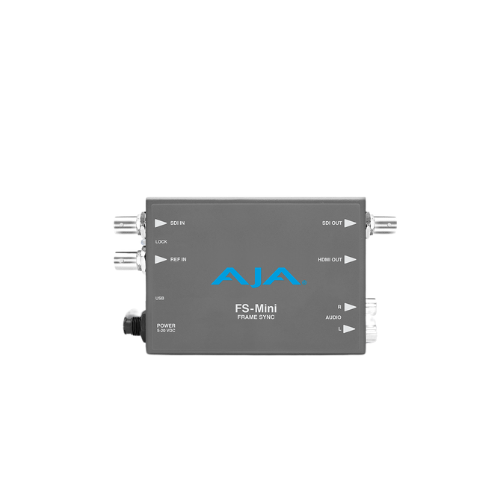

AJA FS-Mini is a compact and portable frame synchronizer designed for professional broadcast environments. It delivers reliable synchronization for untimed video signals while maintaining high-quality output.

Purpose and Function

The device aligns incoming video signals to a reference, ensuring they match the system timing. This makes it essential for workflows where multiple video sources must remain synchronized.

Format and Conversion Support

FS-Mini supports 3G-SDI, HD, and SD formats with full up, down, and cross conversion capabilities. It also includes frame rate conversion, allowing smooth integration between different video standards.

Audio Handling

The unit supports embedded SDI audio and HDMI audio output, along with analog RCA outputs for monitoring. It ensures flexible audio routing in production setups.

Monitoring and Output

With both SDI and HDMI outputs available simultaneously, the device allows for production output and real-time monitoring at the same time.

Control and Configuration

FS-Mini can be configured using onboard DIP switches or through USB with AJA Mini-Config software, providing both quick setup and advanced control options.
