Introduction

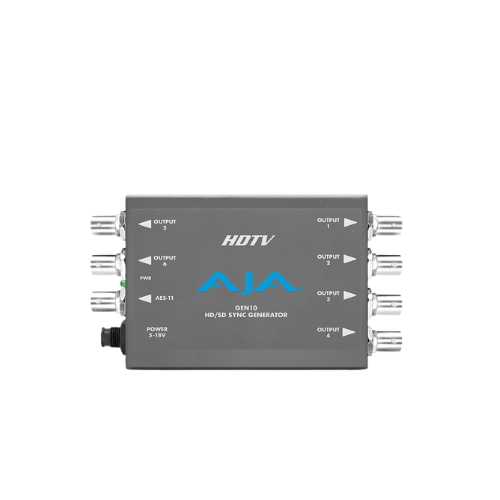

AJA GEN10 is a compact and cost-effective sync generator designed for broadcast and production environments. It provides reliable reference signals for video and audio systems.

Purpose and Function

The device generates synchronized SD, HD, and AES signals from a single master time base. It ensures all connected equipment operates in perfect timing alignment.

Output Flexibility

GEN10 features two independently controlled groups of outputs, allowing users to generate both HD and SD sync signals simultaneously. This flexibility makes it suitable for mixed-format environments.

Signal Generation

It supports HD tri-level sync and SD outputs including color black and color bars. The AES-11 output can be switched between silence and tone for audio synchronization needs.

System Integration

With multiple outputs available, GEN10 can synchronize entire systems without requiring additional distribution amplifiers. It is ideal for small to mid-sized broadcast setups.

Design and Control

The unit features a compact Mini-Converter design and is configured using external DIP switches, making it simple to deploy and operate.
