High-Precision Pattern Projection

The ARRI Gobo Holder (L2.0033843) is an essential projection accessory designed to fit standard B-size gobos into the ARRI Orbiter Projection system. Whether projecting intricate breakup patterns, architectural textures, or custom brand logos, this holder positions patterns squarely in the focal plane for razor-sharp edge control and crisp image rendition.

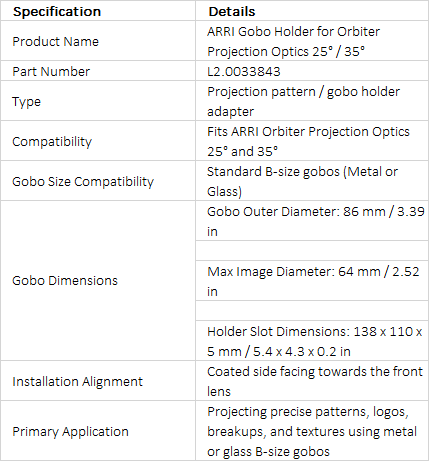

Standard B-Size Specifications

Designed to universal lighting standards, the holder accepts B-size metal and dichroic glass gobos with an outer diameter of 86 mm (3.39 in) and a maximum active image area of 64 mm (2.52 in). The frame drops cleanly into the 138 x 110 x 5 mm internal slot of both the Orbiter Projection Optic 25° and Projection Optic 35°.

Set-Ready Thermal Engineering

Constructed from heat-resistant metal alloys, the L2.33843 handles high-intensity point-source lighting output without warping or binding inside the lens barrel. Clearly marked alignment guidance ensures glass gobos are inserted with the coated side facing the front lens elements to maximize thermal management and pattern longevity.
