High-Resolution Cinematic Illumination

The ARRI Omnibar is a modular, battery-powered linear LED fixture engineered for demanding studio, field, and virtual production environments. Featuring an RGBMA color engine, it produces high-fidelity full-spectrum white light (CRI 98 / TLCI 98 at 5600K) and rich skin tones. With 32 pixel zones and a 0.1% dimming curve, the fixture offers smooth dimming and dynamic SkyPanel-matching lighting and pixel effects.

Tactical Rigging & Swappable Optics

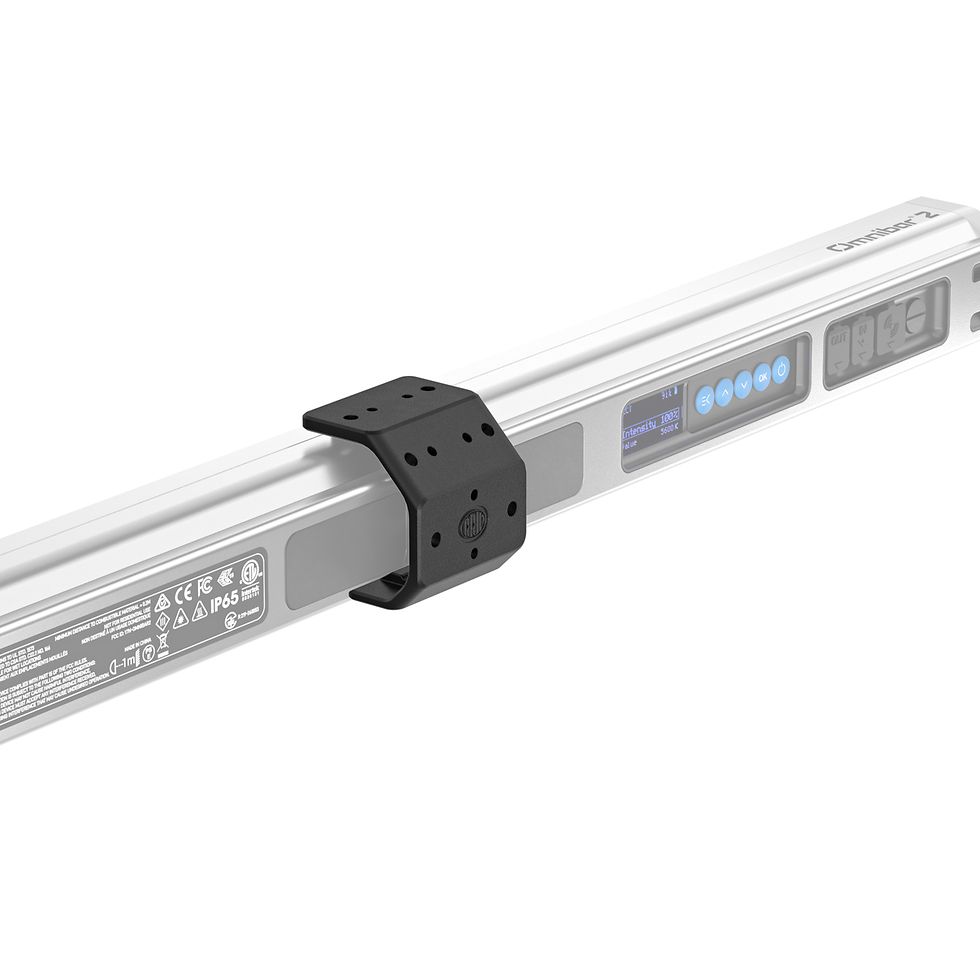

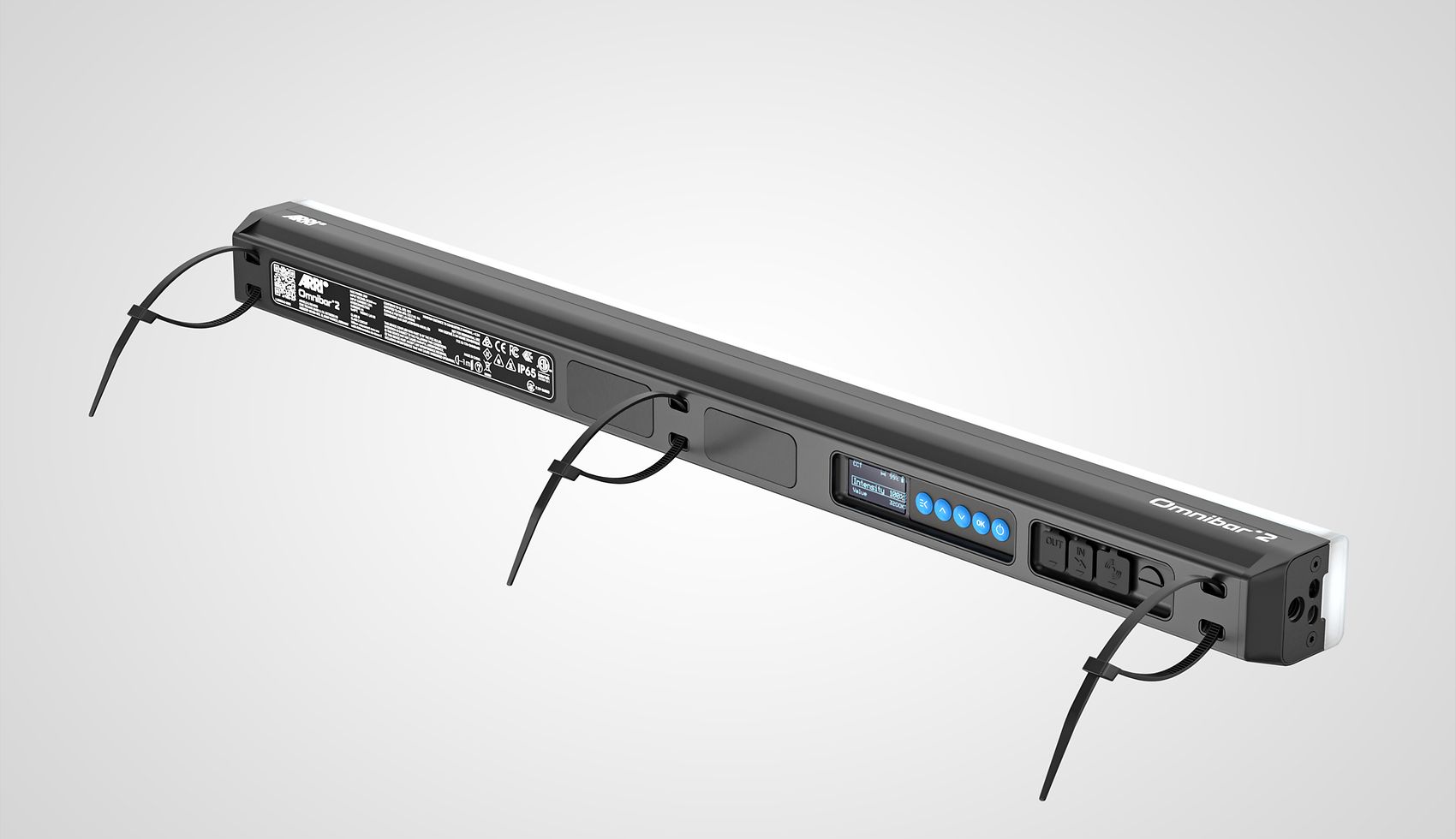

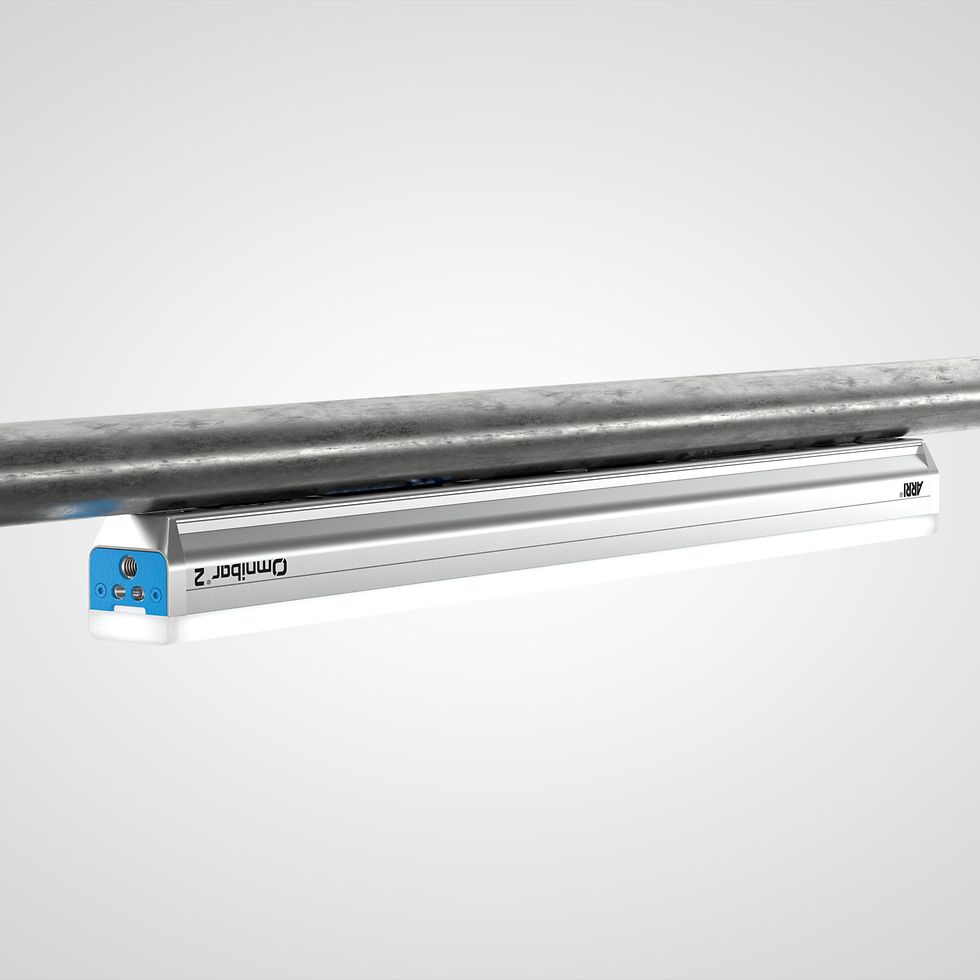

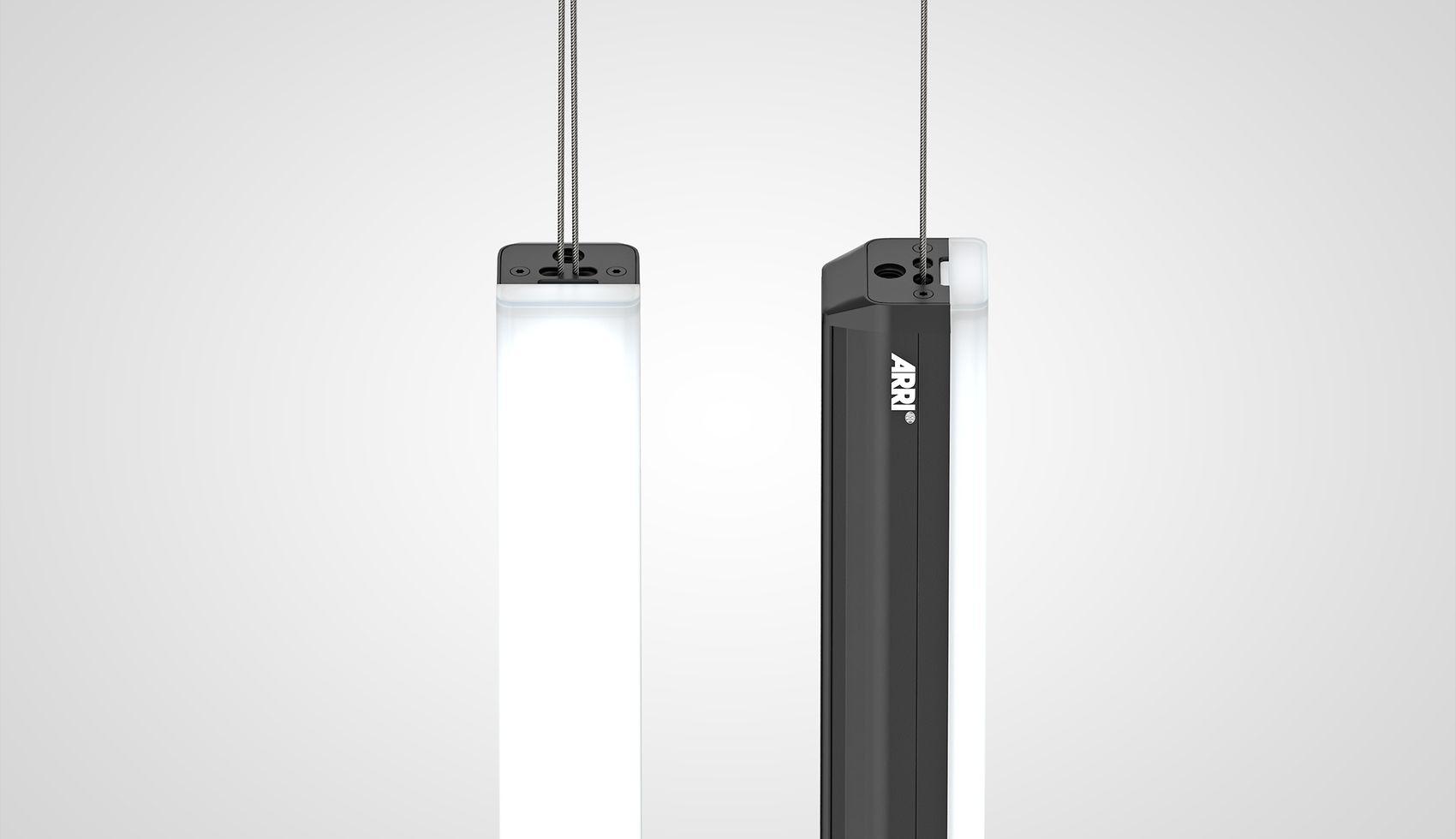

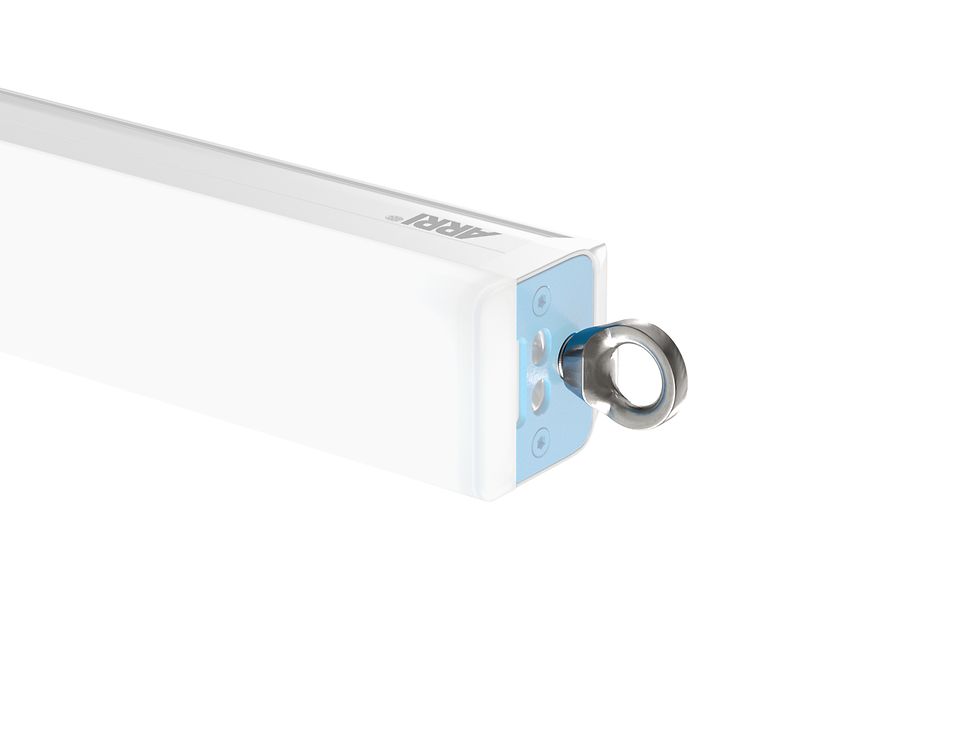

Designed for versatile mounting, the Omnibar includes rear rail connection points, built-in high-strength magnets, and custom accessories like the aluminum Omnigrip, locking steel Omnipin, multi-angle Omniclips, and safety Eyebolts. Its front-loaded magnetic profile enables quick swapping between optics—including a Round Diffuser for soft tube-style wrap, a Flat Diffuser for precision effect lighting, and an Intensifier for increased focus and punch. Boost Mode provides 25% extra output at 3200K when maximum brightness is required.

Untethered Operation & Scalable System Ecosystem

Built to withstand harsh environments with an IP65 weatherproof rating, the Omnibar runs on an internal battery for completely wireless setups. Wireless control is enabled through LumenRadio TimoTwo CRMX and the ARRI Bluetooth Mesh app, allowing fixtures to mesh together to extend wireless range. For larger installations, the optional Omnibase serves as a centralized power/data hub supporting up to 24 feet of connected Omnibars over six DMX universes via DMX, Art-Net, or sACN.
