Centralized Power & Data Hub for Large Lighting Rigs

The ARRI Omnibase (L2.0052531) is the central power supply and data distribution engine for scalable ARRI Omnibar linear LED installations. Engineered for large studio builds, virtual production stages, and outdoor installations, the Omnibase consolidates cable management by providing centralized DC power and high-speed control data through a single, robust hub.

High-Capacity Multi-Universe Control

Supporting up to six DMX universes—one per output port—the Omnibase handles complex pixel-mapping effects across large linear arrays with zero latency. It accepts control data over standard 5-pin XLR DMX as well as IP-based Art-Net and sACN via Ethernet connections, ensuring smooth operation with modern lighting consoles and media servers.

Weatherproof Heavy-Duty Performance

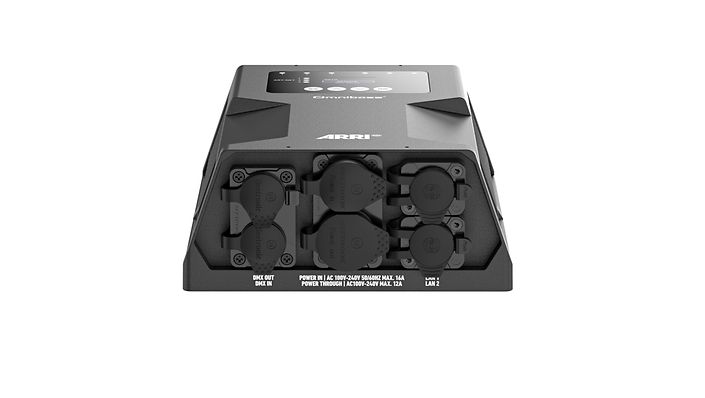

Housed in an IP65-rated weatherproof chassis, the Omnibase matches the rugged reliability of the Omnibar light fixtures. Featuring professional 5-pin XLR, AC PowerCON, and etherCON Ethernet pass-through inputs and outputs, it is built to perform in harsh weather and demanding production environments.
