AJA Corvid 44 12G BNC – Compact Full-Size BNC 12G-SDI PCIe I/O Card

AJA Corvid 44 12G BNC – Compact Full-Size BNC 12G-SDI PCIe I/O Card

AJA Capture Devices

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

4x bidirectional full-size 12G-SDI BNC connections
Supports 8K, UltraHD2, 4K, 2K, HD, and SD workflows
Real-time ingest and output with simultaneous monitoring
Up to 64-channel embedded audio (32-channel for specific workflows)
RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit support
HDR workflows, including PQ, HLG, and Dolby Vision
Built-in hardware downstream keyer for real-time compositing
FPGA-based dynamic reconfiguration for flexible processing
Supports 12-bit LUTs (.cube) for advanced color management
Reference/LTC sync and RS-422 control via internal headers
Available in active (fan) or passive cooling configurations
Designed for broadcast, post-production, and high-end live workflows

Pricing Dhs. 14,517.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

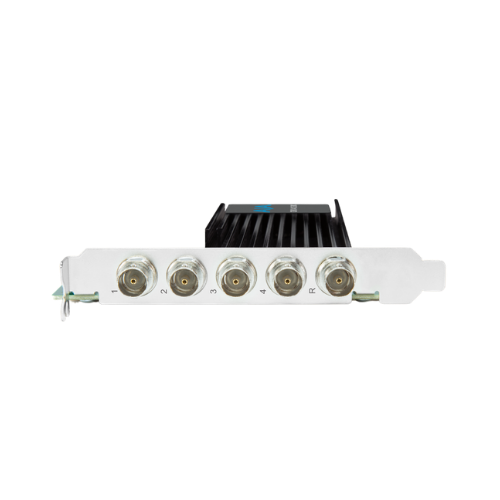

Full-Size BNC 12G-SDI Connectivity

Corvid 44 12G BNC is a high-performance PCIe 3.0 video I/O card featuring four full-size bidirectional 12G-SDI BNC connectors. It is engineered for high-bandwidth production environments requiring maximum signal integrity and flexibility.

Multi-Resolution Broadcast Flexibility

The card supports everything from SD and HD through 4K, UltraHD, UltraHD2, and up to 8K workflows. Each SDI connection can operate independently or combined for higher-resolution workflows such as 8K capture and playback.

High Frame Rate 8K and 4K Production

Corvid 44 12G BNC supports high frame rate workflows up to 60p across multiple resolutions, making it suitable for cinematic production, live broadcast, and advanced post-production pipelines.

Advanced Real-Time Keying and Processing

A built-in hardware downstream keyer enables real-time overlay of graphics, alpha channels, and framebuffer content, supporting professional broadcast graphics workflows up to 4K resolution.

Broadcast Synchronization and Control

The card includes reference input, LTC timecode support, and RS-422 machine control for frame-accurate ingest, playback, and broadcast automation integration.

Flexible Cooling and System Integration

Available in both active and passive cooling versions, the Corvid 44 12G BNC is designed for integration into a wide range of professional systems, from quiet studio environments to high-performance server racks.

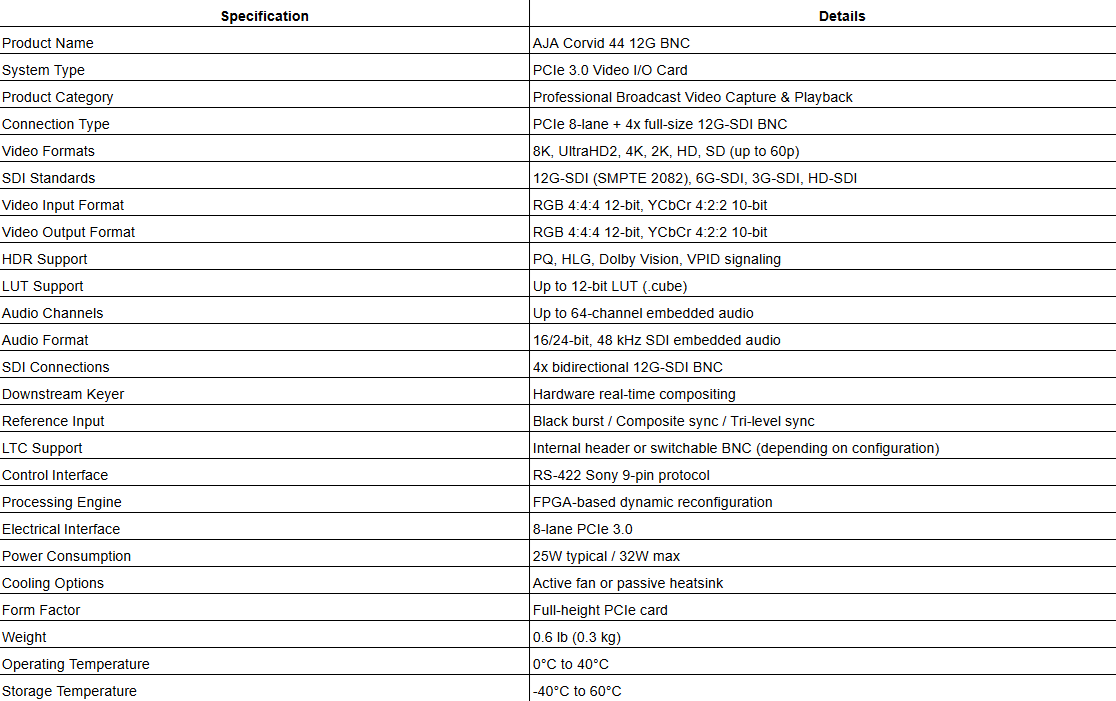

Technical Specifications +

technical specifications
