AJA Corvid 44 BNC Flexible Multi-Format I/O with Full-Size BNC

AJA Capture Devices

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Professional PCIe video I/O card with flexible multi-format SDI support
4x full-size bidirectional 3G-SDI BNC connections (spigots)
Supports simultaneous 4-stream input or output workflows
Handles 4K, UltraHD, 2K, HD, and SD up to 60p
12-bit RGB 4:4:4 and 10-bit YCbCr 4:2:2 processing
HDR support, including PQ, HLG, and Dolby Vision workflows
64-channel embedded SDI audio support (16 channels per link)
Frame-accurate broadcast control via RS-422
Reference and LTC synchronization via internal/external input
Designed for developer integration and advanced broadcast systems

Pricing Dhs. 9,034.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Full-Size BNC Professional Connectivity

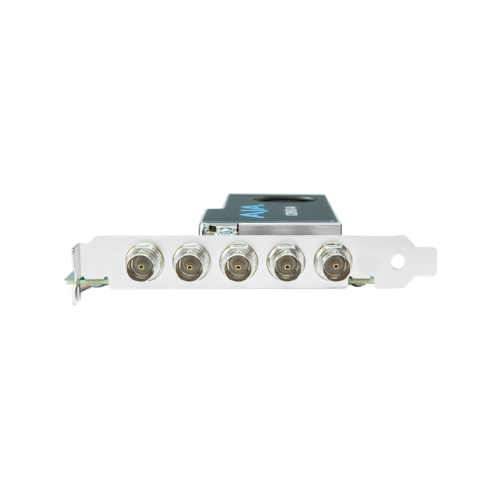

Corvid 44 BNC is built with full-size 3G-SDI BNC connectors, offering stronger physical connectivity and improved reliability for professional broadcast environments. It supports four simultaneous SDI streams through a single PCIe card.

Multi-Format Flexible Workflow

Each SDI connection can be independently configured as input or output. This allows mixed-format workflows across 4K, UltraHD, HD, and SD, as long as timing remains synchronized across channels.

High-End Video Processing

The card supports high-quality formats including 12-bit RGB 4:4:4 and 10-bit YCbCr 4:2:2, making it suitable for cinematic production, live broadcast, and post-production pipelines requiring precision color accuracy.

HDR and Advanced Color Support

Corvid 44 BNC supports modern HDR workflows including HDR10, HLG, and Dolby Vision. It also includes VPID signaling for correct transfer characteristics and colorimetry handling over SDI.

Broadcast Synchronization and Control

With LTC/reference input and RS-422 control support, the device integrates seamlessly into professional broadcast chains requiring frame-accurate device control and synchronization.

Developer-Focused Integration

Designed for AJA Developer Partners, this card enables software integration into existing production systems, helping reduce development time while leveraging proven video I/O hardware.

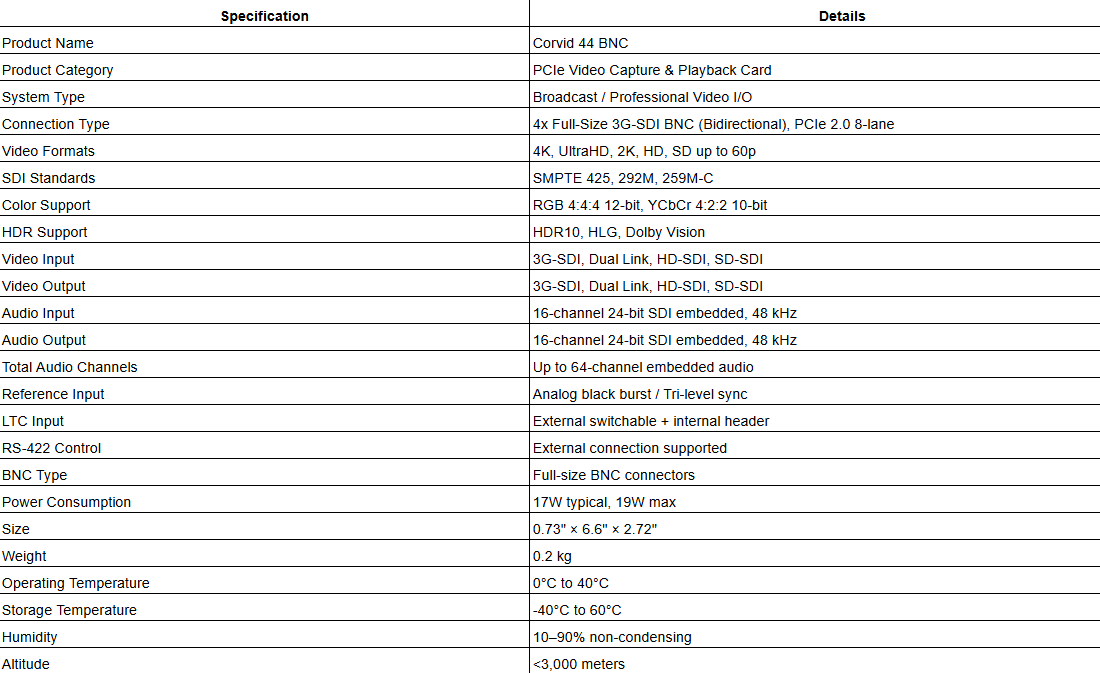

Technical Specifications +

technical specifications
