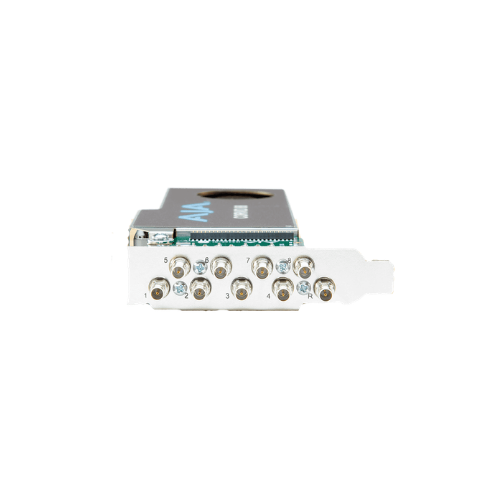

AJA Corvid 88 – High Density I/O PCIe Video Card

AJA Corvid 88 – High Density I/O PCIe Video Card

AJA Capture Devices

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

8x bidirectional 3G-SDI I/O connections on a single PCIe card
Supports up to dual 4K/UltraHD 50/60p workflows
Mix SD, HD, 2K, and 4K formats simultaneously
64-channel embedded audio processing (32–64 channel support depending on workflow)
RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit support
HDR support, including PQ, HLG, and Dolby Vision
Independent mixer/keyer, frame stores, and LUT processing engines
SDI metadata support, including VPID and HDR metadata handling
Built-in RS-422 control and LTC/reference input
Available in fanless variant for noise-sensitive environments
Designed for ingest, playout servers, and channel-in-a-box systems

Pricing Dhs. 13,340.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Professional Video I/O

Corvid 88 is a high-performance PCIe video I/O card designed for broadcast and production systems that require multiple simultaneous SDI streams. It enables flexible routing of inputs and outputs across eight independent connections.

Multi-Format Broadcast Flexibility

Each SDI channel can be independently configured for different formats including SD, HD, 2K, and 4K. This allows mixed-format workflows on a single hardware platform without requiring multiple dedicated devices.

Advanced 4K and HDR Workflows

The system supports high frame rate 4K and UltraHD production at up to 60p, along with HDR formats such as PQ, HLG, and Dolby Vision. This makes it suitable for modern broadcast and premium content pipelines.

High Channel Audio and Metadata Handling

Corvid 88 supports up to 64 channels of embedded audio and advanced metadata workflows, including SCTE-104 and Dolby Vision metadata capture, ensuring broadcast-grade signal integrity and monitoring.

Professional Integration and Control

With RS-422 support, reference/LTC inputs, and deep software integration via AJA developer tools, Corvid 88 integrates seamlessly into automated ingest, playback, and broadcast control systems.

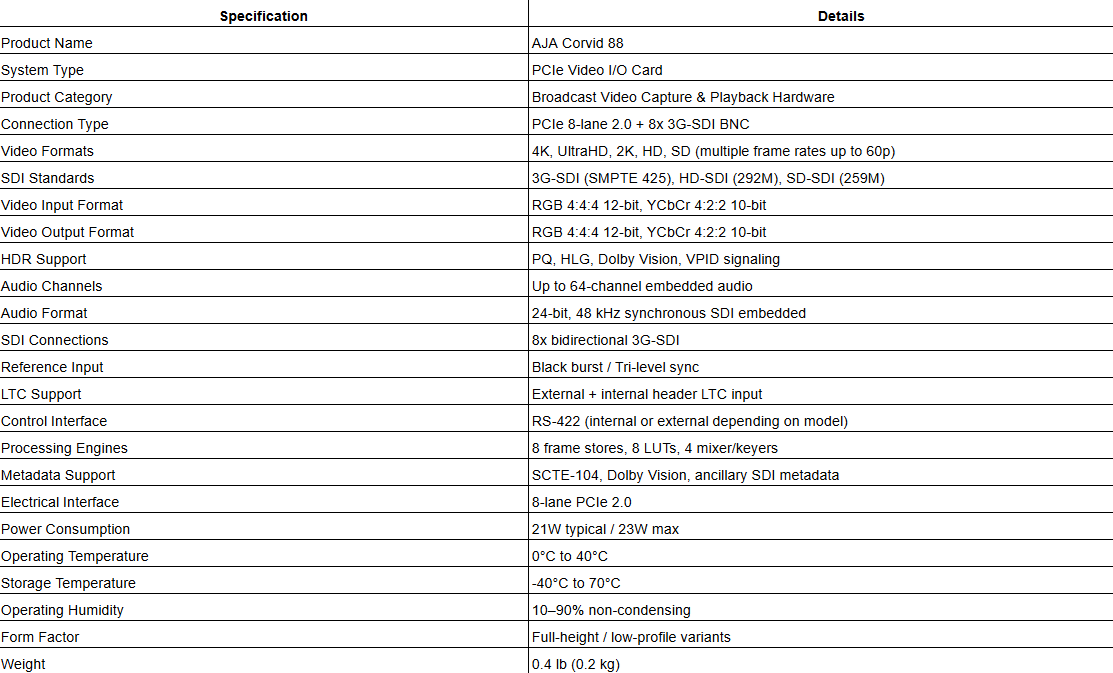

Technical Specifications +

technical specifications
