Evertz

Evertz 500IDA9-IG / 500IDA9-HD-IG Intelligent HD/SD-SDI 1x9 Reclocking Distribution Amplifier with IntelliGain® Loudness Control

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density Distribution: Provides 9 reclocked outputs from a single SD-SDI or HD/SD-SDI input.
IntelliGain Loudness Processing: ITU-R BS.1770-compliant loudness control reduces volume variations between programs and commercials.
Advanced Audio Management: Supports embedded mono audio shuffling and optional 5.1-to-2-channel stereo downmixing.
Extended Cable Equalization: Recovers signals up to 140m for HD-SDI and 350m for SD-SDI using Belden 1694A.
VistaLINK SNMP Monitoring: Enables remote configuration, signal logging, and trending through VistaLINK network management.
High-Density 3RU Integration: Single-slot card supports up to 15 Intelligent DA modules in an Evertz 500FR frame.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Intelligent Signal Distribution & Processing Engine

The Evertz 500IDA9-IG and 500IDA9-HD-IG redefine traditional broadcast distribution amplifiers by combining signal reclocking with advanced audio processing and signal auditing. Engineered for live production, signal transport, and multi-channel playout facilities, this single-slot module accepts a primary serial digital input and delivers nine high-quality, fully conditioned outputs across extended coaxial cable runs.

Integrated IntelliGain® Loudness Control & Audio Shuffling

Unlike baseline distribution amplifiers, the 500IDA9-IG series integrates Evertz' award-winning IntelliGain® loudness control technology. Operating strictly under ITU-R BS.1770 standards, the onboard processor maintains consistent audio levels to prevent jarring loudness spikes between regular programming and interstitials. The module also features embedded mono audio channel shuffling and flexible downmix algorithms to streamline audio workflow operations without requiring dedicated downstream hardware.

Centralized Monitoring & Frame Architecture

Designed for high-density environments, up to 15 modules can fit within a single 3RU 500FR frame (when paired with a 500FC series frame controller). Full SNMP compatibility via Evertz VistaLINK® allows broadcast engineers to monitor signal presence, track real-time operational parameters, and remotely adjust gain, downmixing, and channel routing across the entire facility network.

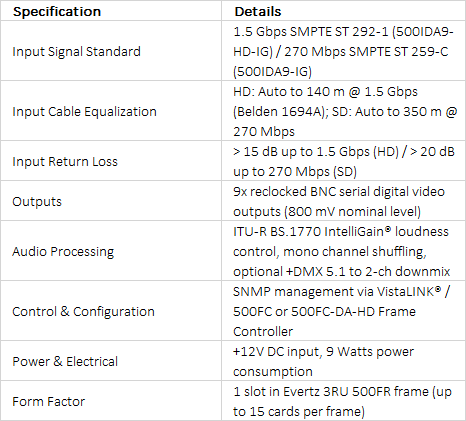

Technical Specifications +

technical specifications
