Evertz 500IDA9-IG / 500IDA9-HD-IG Intelligent HD/SD-SDI 1x9 Reclocking Distribution Amplifier with IntelliGain® Loudness Control

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density Signal Distribution: Delivers 9 reclocked, conditioned outputs from a single SD-SDI or HD/SD-SDI input.
IntelliGain Loudness Control: Provides ITU-R BS.1770-compliant automatic loudness management between programs and advertisements.
Flexible Audio Processing: Supports embedded mono audio shuffling and optional 5.1-to-2-channel stereo downmixing.
Extended Cable Equalization: Recovers signals up to 140m for HD-SDI and 350m for SD-SDI using Belden 1694A.
VistaLINK SNMP Control: Enables centralized monitoring, diagnostics, and real-time parameter logging via SNMP.
Space-Saving 3RU Integration: Single-slot design supports up to 15 Intelligent DA modules in an Evertz 500FR frame.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Intelligent Signal Distribution & Processing Engine

The Evertz 500IDA9-IG and 500IDA9-HD-IG go beyond standard distribution amplifiers by combining signal reclocking with powerful audio processing and signal auditing. Designed for live broadcasting, OB vans, and playout facilities, this single-slot module takes an incoming serial digital video feed and generates 9 high-quality, fully reclocked outputs capable of driving long coaxial runs.

Built-In IntelliGain® Loudness Control & Audio Shuffling

Unlike traditional DA hardware, the 500IDA9-IG series includes Evertz' award-winning IntelliGain® loudness processing. Operating under ITU-R BS.1770 guidelines, the onboard engine normalizes audio levels seamlessly across programming transitions without requiring separate outboard processors. The card also offers embedded mono audio channel shuffling and optional 5.1-to-2-channel downmixing to simplify facility audio management.

Comprehensive Network Control & High-Density Frame Architecture

Up to 15 modules can be populated inside a 3RU Evertz 500FR enclosure when managed by a 500FC series controller. Network integration with Evertz VistaLINK® enables engineers to perform signal presence detection, trend monitoring, and remote module configuration over standard SNMP interfaces.

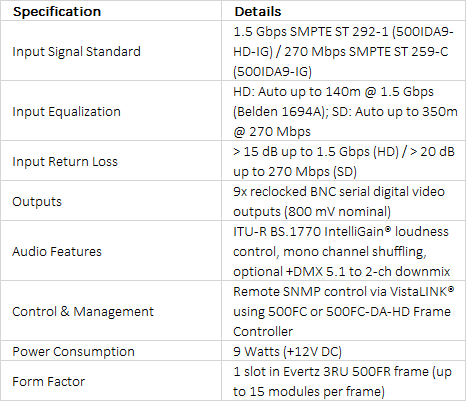

Technical Specifications +

technical specifications
