2-Channel Fiber to SDI Conversion

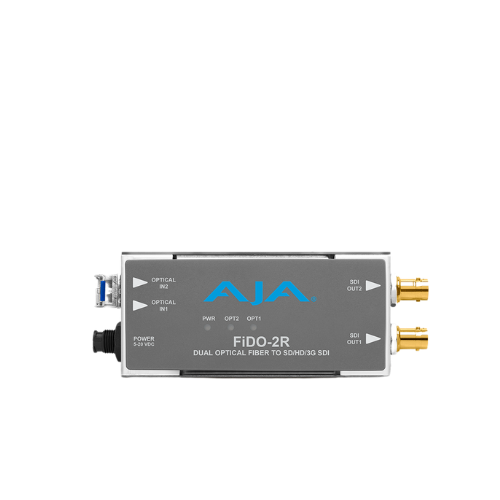

The FiDO-2R converts two independent single-mode LC fiber inputs into 3G-SDI outputs, enabling reliable delivery of multiple video signals from fiber infrastructure to SDI-based systems.

Independent Channel Operation

Both fiber-to-SDI paths operate independently, allowing simultaneous transmission of two separate signals without interference. This is ideal for multi-feed production workflows and synchronized video delivery.

Long-Distance Fiber Reception

Supports fiber transmission distances up to 10 km (32,808 ft) over standard single-mode fiber, making it suitable for broadcast facilities, remote production, and large-scale installations.

Multi-Format SDI Support

Compatible with 3G, HD, and SD-SDI formats. The unit automatically adapts to supported signals without requiring manual configuration.

HDR Metadata Pass-Through

Preserves HDR metadata across the conversion path, ensuring accurate high dynamic range video reproduction and maintaining image integrity.

Flexible Fiber Connectivity

Uses a duplex LC fiber input connection, allowing both channels to be carried over a single fiber pair for efficient and clean cabling.

Electrical Isolation

Provides electrical isolation between connected systems, helping eliminate ground loop issues and improving signal stability in professional environments.

Compact and Portable Design

The low-profile enclosure is designed for installation in tight spaces such as racks, trucks, or camera rigs, making it suitable for both fixed and mobile setups.

Reliable Power and Operation

Operates on a 5–20V DC universal power supply with a locking connector to ensure stable and uninterrupted operation in professional workflows.
