2-Channel Fiber to SDI Conversion

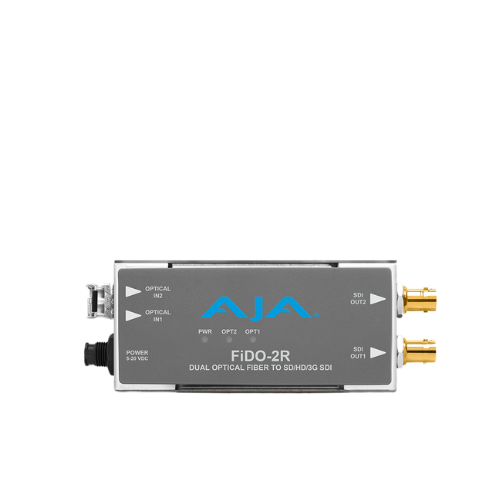

The FiDO-2R-MM converts two independent multi-mode LC fiber inputs into 3G-SDI outputs, providing a reliable solution for integrating fiber-based signals into SDI workflows.

Independent Channel Operation

Each of the two fiber-to-SDI paths operates independently, enabling simultaneous delivery of separate video feeds without signal interference.

Multi-Mode Fiber Support

Designed for multi-mode fiber installations, it supports transmission distances up to 300 m on OM3 fiber and up to 700 m on OM4 fiber, making it suitable for studio and controlled production environments.

Duplex LC Fiber Connectivity

Uses a duplex LC connector for efficient fiber handling and streamlined cabling while maintaining high-quality signal transmission.

HDR Metadata Pass-Through

Preserves HDR metadata across both channels, ensuring accurate high dynamic range video reproduction and consistent image quality.

Electrical Isolation

Provides electrical isolation between connected systems, helping eliminate ground loop issues and improving signal stability in professional environments.

Compact and Portable Design

The low-profile enclosure is designed for installation in tight spaces such as racks, trucks, and camera rigs, making it ideal for both fixed and mobile workflows.

Reliable Power System

Operates on a 5–20V DC universal power supply with a locking connector to ensure secure and uninterrupted operation.
