4-Channel SDI to Fiber Transmission

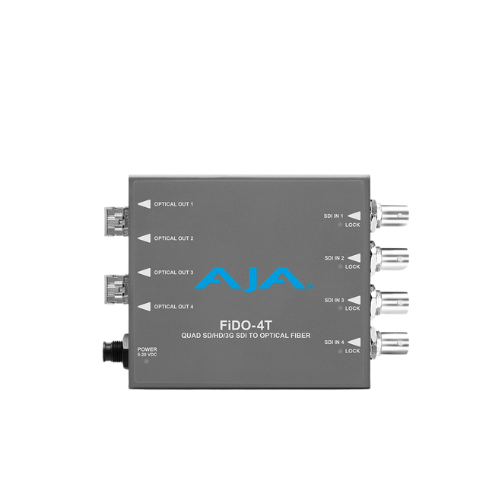

The FiDO-4T-MM converts four independent 3G-SDI inputs into multi-mode LC fiber outputs, enabling efficient transport of multiple video signals over fiber infrastructure.

Multi-Channel Independent Processing

Each of the four SDI channels operates independently, allowing simultaneous transmission of separate feeds without signal interference or dependency.

Multi-Mode Fiber Support

Designed for multi-mode fiber installations, the unit supports distances up to 300 m on OM3 fiber and up to 700 m on OM4 fiber, making it suitable for shorter-range professional environments such as studios and production facilities.

4K / UltraHD Workflow Support

Capable of carrying 4K and UltraHD-SDI signals across four fiber links, enabling high-resolution workflows where multiple synchronized SDI feeds are required.

Flexible Fiber Output Options

Supports both simplex and duplex LC fiber connections, allowing configurations using 4 simplex or 2 duplex fiber outputs depending on system design.

HDR Metadata Pass-Through

Preserves HDR metadata across all channels, ensuring accurate high dynamic range video reproduction without loss of image integrity.

Electrical Isolation

Provides electrical isolation between connected devices, helping to eliminate ground loop issues and maintain stable signal transmission in complex setups.

Compact Rack and Field Design

The low-profile form factor allows installation in tight spaces such as racks, mobile production units, or camera rigs while maintaining durability and reliability.

Reliable Power System

Operates using a 5–20V DC universal power supply with a locking connector to prevent accidental disconnection during operation.
