12G-SDI to Fiber Transmission

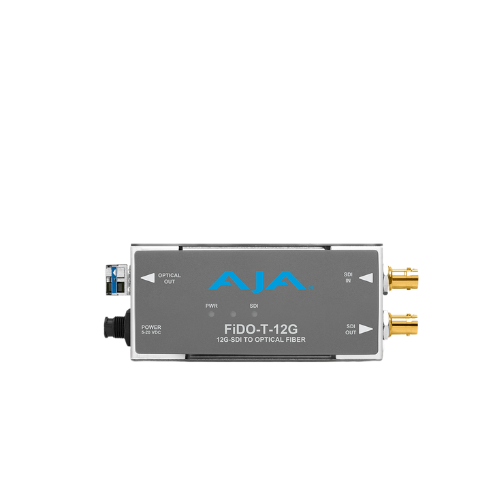

The FiDO-T-12G converts a single 12G-SDI input into a single-mode LC fiber output. It enables reliable transmission of high-quality video signals over long distances using fiber optic infrastructure.

Reclocked SDI Loop Through

The device includes a reclocked 12G-SDI loop output, allowing the original SDI signal to be passed through to additional equipment while maintaining signal integrity and stability.

Independent Signal Handling

The SDI input and fiber output paths operate efficiently with built-in processing, ensuring stable conversion without compromising signal quality across different formats.

Long-Distance Fiber Transport

Supports transmission distances up to 10 km (32,808 ft) over standard single-mode fiber, making it ideal for broadcast facilities, live production, and remote installations.

Format-Agnostic SDI Support

Compatible with a wide range of SDI formats including 12G, 6G, 3G, HD, and SD-SDI. It automatically adapts to incoming signal formats without requiring manual configuration.

HDR Metadata Pass-Through

Supports HDR metadata pass-through, preserving High Dynamic Range information throughout the signal path to maintain accurate color representation and dynamic imaging.

Flexible Fiber Connectivity

Uses a simplex LC fiber connection for output, providing a straightforward and efficient fiber transport solution in professional environments.

Compact and Portable Design

The low-profile enclosure is designed for installation in tight spaces such as racks, trucks, or directly on camera rigs, making it suitable for both fixed and mobile setups.

Reliable Power and Operation

Operates on a 5–20V DC universal power supply with a locking connector to prevent accidental disconnection, ensuring consistent operation in professional workflows.
