Bidirectional SDI and Fiber Conversion

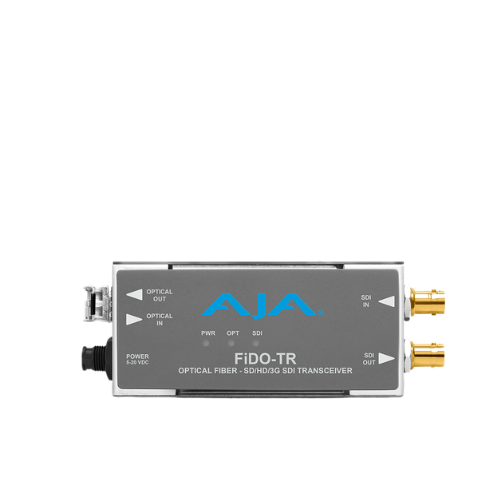

The FiDO-TR-MM functions as a transceiver, allowing simultaneous SDI to fiber and fiber to SDI conversion in a single compact unit. This enables efficient bidirectional signal transmission over one fiber link.

Single Channel Dual Direction Workflow

Designed for one-channel operation, the device handles both input and output signals independently, making it ideal for point-to-point communication setups in broadcast and production environments.

Multi-Mode Fiber Support

Optimized for multi-mode fiber, it supports transmission distances up to 300 m on OM3 fiber and up to 700 m on OM4 fiber, delivering reliable performance in short to mid-range installations.

Duplex LC Fiber Connectivity

Uses a duplex LC connector to manage bidirectional data flow efficiently while keeping cabling clean and organized.

HDR Metadata Pass-Through

Maintains HDR metadata throughout the signal path, ensuring consistent high dynamic range output without signal degradation.

Electrical Isolation

Provides electrical isolation between connected devices, helping eliminate ground loop issues and improving signal stability.

Compact and Portable Design

The low-profile enclosure fits easily into tight spaces such as equipment racks, broadcast trucks, or camera rigs.

Reliable Power System

Operates using a 5–20V DC universal power supply with a secure locking connector to ensure uninterrupted performance.
