Motorized DMX Lighting Control

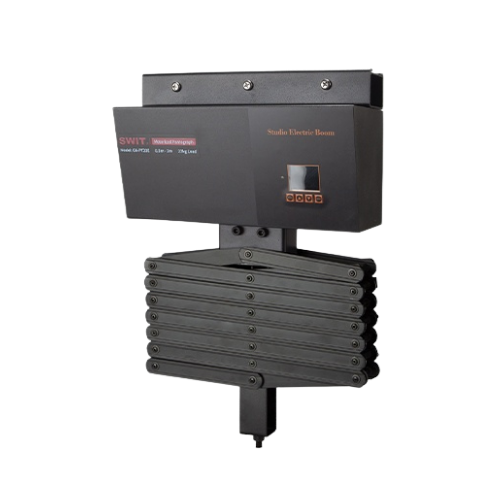

The GA-PT20E DMX Motorized Pantograph is a professional overhead lighting support system designed for automated studio environments. With DMX control capability, users can adjust the height of lighting fixtures remotely through a lighting console, enhancing efficiency and precision.

Smooth & Precise Motorized Movement

This pantograph offers motorized vertical movement with a speed of 10cm per second, allowing smooth and accurate positioning. The adjustable range from 0.5m to 2m makes it suitable for a variety of studio setups.

High Load Capacity

With a maximum load capacity of 30kg, the GA-PT20E can support heavier professional lighting fixtures while maintaining stability and reliability during operation.

Advanced DMX Interface

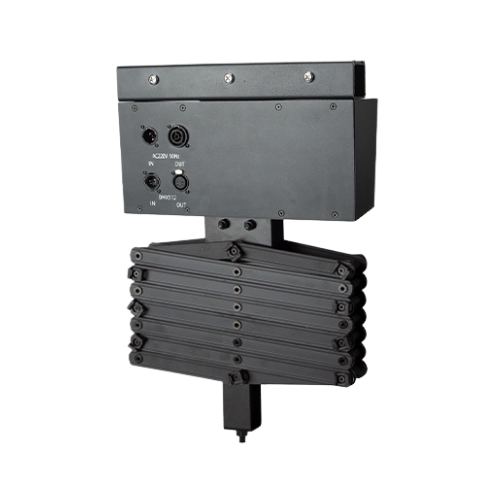

Equipped with 5-pin XLR DMX input and loop output, the pantograph can be easily integrated into existing DMX control systems. A front-panel DMX address display allows quick and convenient configuration.

Reliable Power Connectivity

The unit features PowerCON True1 AC input and loop output (100–240V, 50/60Hz), ensuring secure and continuous power distribution in professional environments.

Organized Cable Management

A rear cable organizer keeps power and DMX cables neatly aligned along the pantograph. This ensures cables move smoothly with the system, maintaining a clean and safe workspace.

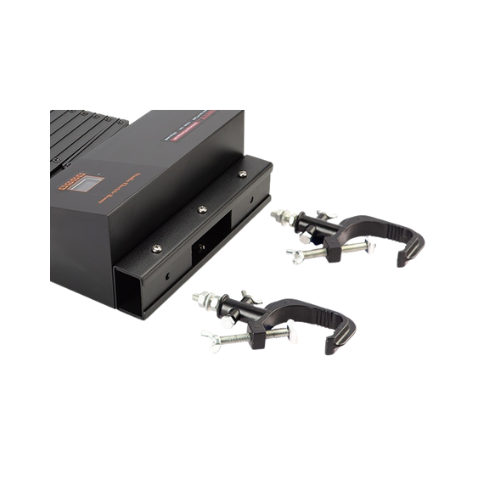

Easy Installation & Integration

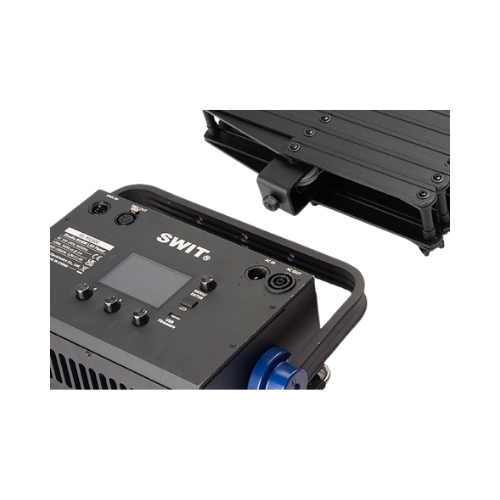

The GA-PT20E connects easily to ceiling hooks using screw bolts and mounts directly to studio light yokes. It is compatible with standard rigging accessories such as GA-DG75 hooks, making integration seamless.
