Automated Studio Lighting Control

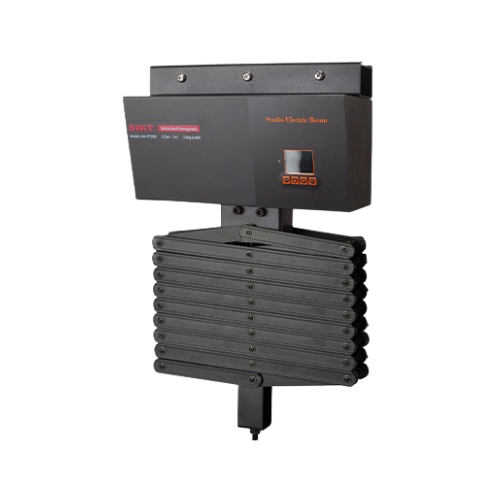

The GA-PT30E DMX Motorized Pantograph is a professional ceiling-mounted lighting system designed for automated control in modern studios. With DMX functionality, users can adjust lighting height remotely through a console, improving workflow efficiency and precision.

Extended Motorized Range

Offering an adjustable range from 0.6m to 3m, this pantograph provides greater flexibility for studios with higher ceilings or dynamic lighting requirements. The smooth motorized movement ensures precise positioning at all times.

High Load Performance

With a robust 30kg load capacity, the GA-PT30E is built to support heavier studio lighting fixtures while maintaining stability and safety during operation.

Advanced DMX Integration

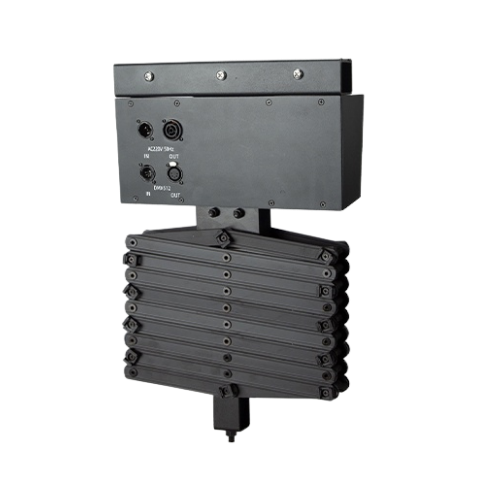

Equipped with 5-pin XLR DMX input and loop output, the system integrates seamlessly into existing DMX networks. A front-panel DMX address display allows easy configuration for precise control.

Reliable Power System

The pantograph features PowerCON True1 AC input and loop output (100–240V, 50/60Hz), ensuring consistent and secure power delivery in professional environments.

Clean Cable Management

The built-in rear cable organizer keeps power and DMX cables neatly aligned with the pantograph. This ensures smooth cable movement during operation and maintains a tidy workspace.

Easy Installation & Compatibility

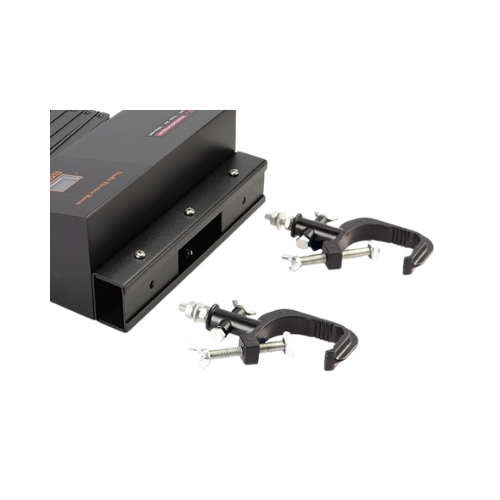

The GA-PT30E connects easily to ceiling hooks using screw bolts and mounts directly to studio light yokes. It is fully compatible with standard rigging systems, including matching hooks like GA-DG75.
