High-End Automated Lighting Control

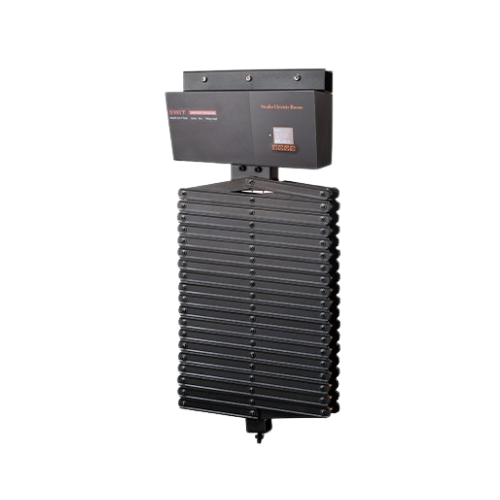

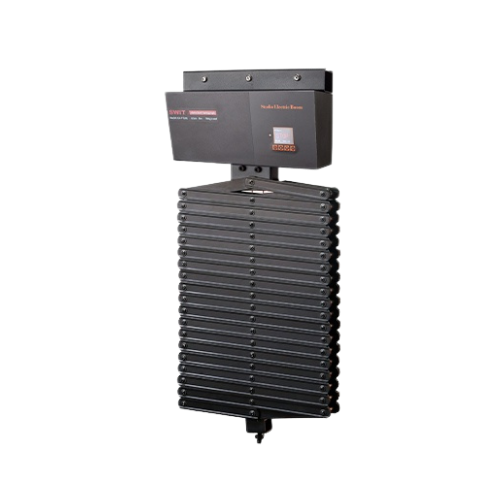

The GA-PT50E DMX Motorized Pantograph is a premium overhead lighting support system designed for fully automated studio environments. With DMX control, users can remotely adjust lighting height with precision, improving workflow efficiency in professional productions.

Maximum Extension for Large Studios

Featuring an adjustable extension range from 0.8m to 5m, this pantograph is ideal for studios with high ceilings or complex lighting setups. It provides exceptional flexibility for positioning lights across large production spaces.

Powerful Load Capacity

With a maximum load capacity of 30kg, the GA-PT50E supports heavy-duty lighting fixtures while maintaining stability and safety during operation.

Advanced DMX Integration

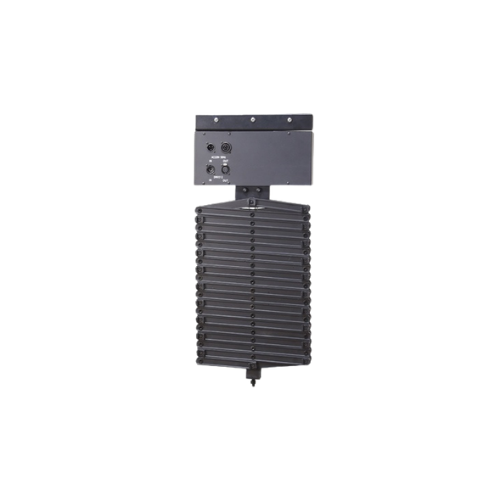

Equipped with 5-pin XLR DMX input and loop output, the system integrates seamlessly into DMX-controlled lighting environments. The front-panel DMX address display allows easy setup and precise control.

Reliable Power Connectivity

The pantograph features PowerCON True1 AC input and loop output (100–240V, 50/60Hz), ensuring consistent and secure power distribution across connected systems.

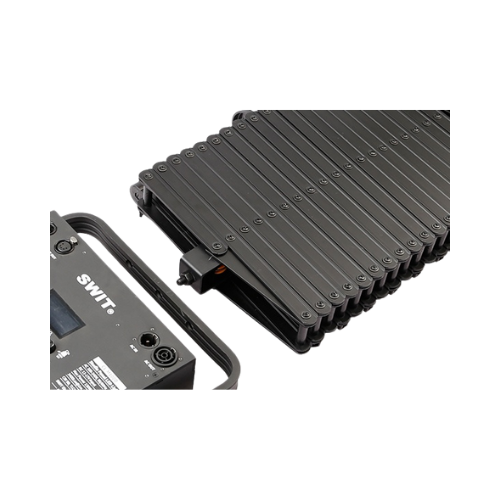

Organized Cable Management

A built-in rear cable organizer keeps power and DMX cables neatly aligned with the pantograph structure. This ensures smooth cable movement and maintains a clean, professional setup.

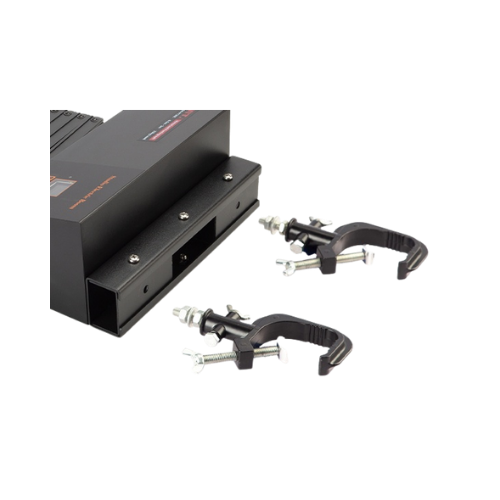

Easy Installation & System Compatibility

The GA-PT50E connects easily to ceiling hooks using screw bolts and mounts directly to studio light yokes. It is fully compatible with standard rigging systems, including matching hooks like GA-DG75.
