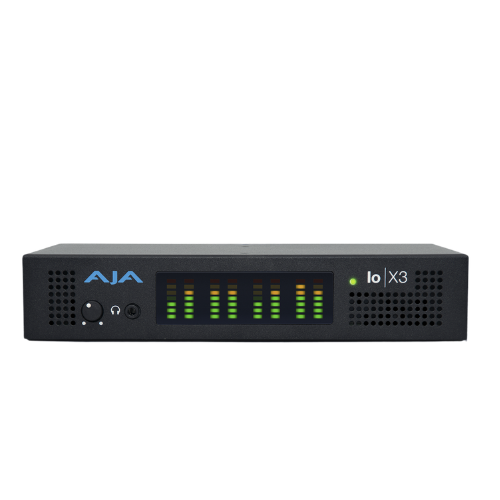

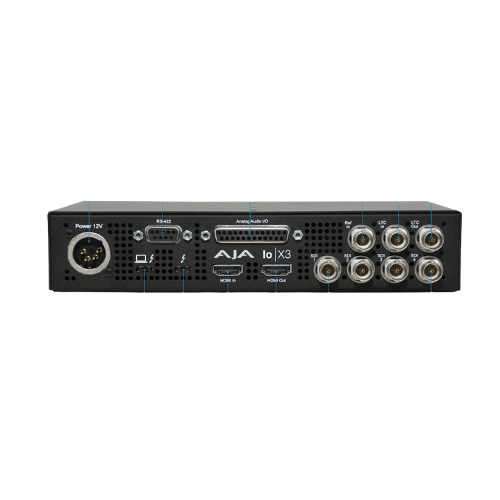

AJA Io X3 – Multi-Channel 2K/HD/SD Video I/O over Thunderbolt

AJA Io X3 – Multi-Channel 2K/HD/SD Video I/O over Thunderbolt

AJA Capture Devices

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

2K/HD/SD video I/O up to 60fps
4x bidirectional 3G-SDI with 16-channel embedded audio
HDMI I/O with 8-channel embedded audio support
Dual Thunderbolt 3 ports (Thunderbolt 4/5 compatible)
Supports RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit workflows
HDR support, including HDR10, HLG, PQ, Dolby Vision
Multiview output via HDMI for multi-source monitoring
Flexible analog audio I/O via DB-25 (configurable 8-channel)
RS-422 machine control with reference and LTC sync
Compact, rackmountable design (two units in 1RU)

Pricing Dhs. 6,752.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Portable Multi-Channel Production Interface

Io X3 is a compact Thunderbolt-based video I/O device designed for professional SD, HD, and 2K workflows. It supports multi-channel operations, making it suitable for live production, editing suites, and streaming environments.

Flexible Multi-Camera Workflow Support

With four bidirectional 3G-SDI ports, Io X3 enables multi-camera setups for OBS, vMix, and Wirecast workflows, allowing seamless switching and monitoring in real time.

HDR and High-Quality Color Processing

Io X3 supports advanced HDR workflows including HDR10 and HLG, delivering accurate color reproduction across SDI and HDMI outputs for modern production standards.

Professional Audio Integration

The device supports up to 16-channel embedded SDI audio and configurable analog audio via DB-25, enabling full integration with studio-grade audio systems.

Built for Live and On-Set Production

With dual Thunderbolt connectivity, headphone monitoring, and compact design, Io X3 is optimized for mobile production environments, live events, and field recording.

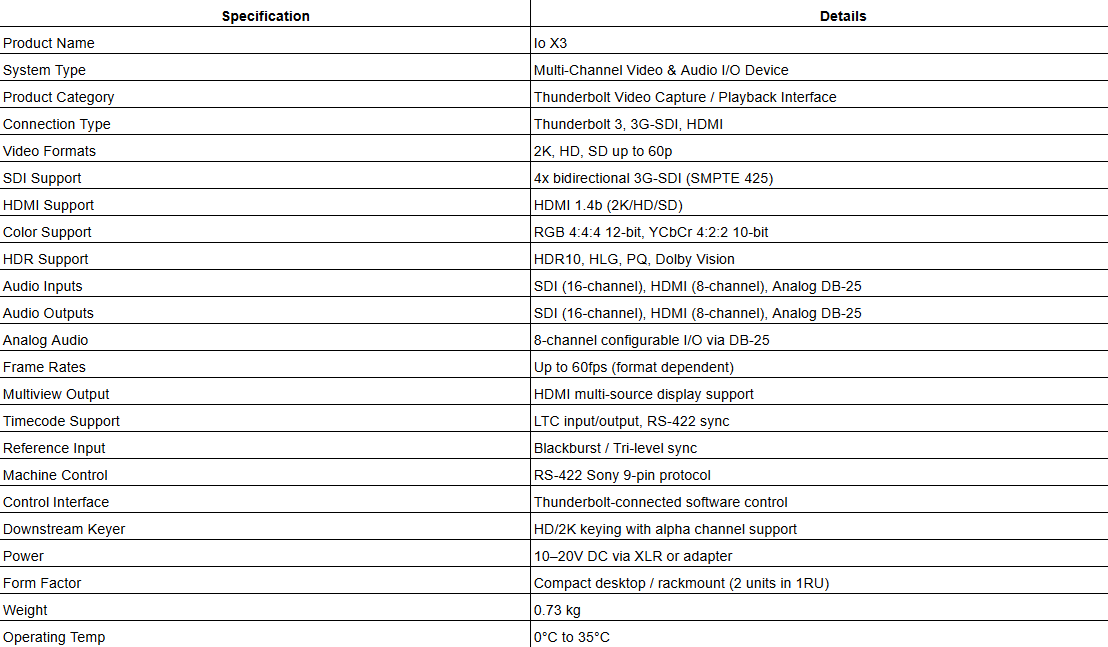

Technical Specifications +

technical specifications
