AJA OG-12G-AM 16-Channel AES/EBU Audio Embedder/Disembedder

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

16-channel AES/EBU audio embedder/disembedder for 12G-SDI workflows
Supports 12G-SDI input and output up to 4K/UltraHD
Selectable embedding or disembedding on a channel-pair basis
8x BNC AES/EBU audio I/O configurable as input or output
Supports HDR metadata pass-through
Automatic detection of input video standard
Built-in 1.5G-SDI internal signal generator for standalone audio embedding
Supports embedded audio pass-through or replacement
Low-latency audio and video processing
Remote monitoring and control via Dashboard software

Pricing Dhs. 4,765.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Advanced Audio Embedding and Disembedding

The OG-12G-AM is designed to manage professional audio workflows by embedding or disembedding up to 16 channels of AES/EBU audio in 12G-SDI signals. It provides flexible routing on a channel-pair basis for precise audio control.

UltraHD and 4K Support

Supporting 12G-SDI input and output, the OG-12G-AM handles video formats up to 4K and UltraHD. This makes it suitable for high-end broadcast and production environments requiring maximum resolution support.

Flexible Audio Routing

Users can choose whether each audio channel pair passes existing embedded SDI audio or replaces it with external AES/EBU audio. This allows complete control over audio mixing and integration.

Reliable Signal Processing

The unit automatically detects incoming video formats and ensures stable processing with minimal latency. It maintains synchronization between audio and video streams for broadcast accuracy.

Professional Broadcast Integration

Designed for openGear infrastructure, the OG-12G-AM integrates seamlessly into high-density production environments. It is fully compatible with DashBoard software for remote configuration and monitoring.

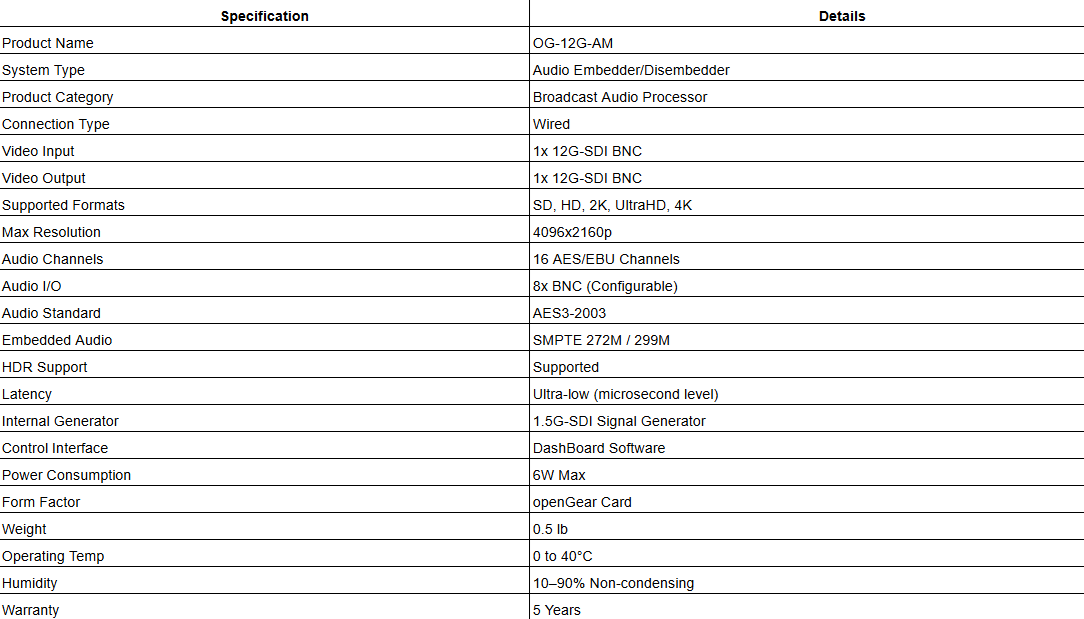

Technical Specifications +

technical specifications
