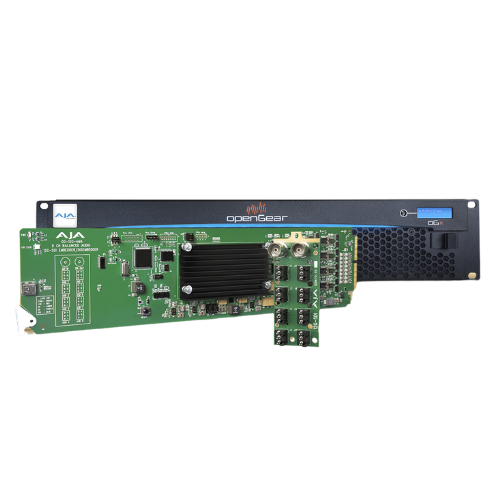

AJA OG-12G-AMA 12G-SDI Analog Audio Embedder/Disembedder

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

12G-SDI analog audio embedder and disembedder in a single unit
Supports 8-channel balanced analog audio I/O
3-pin terminal block connectors for flexible input or output configuration
Compatible with 4K, UltraHD, 2K, HD, and SD video formats
HDR pass-through support for high dynamic range workflows
Automatic video standard detection and configuration
Works with openGear frames including OG-X-FR, OG-3-FR, and DFR-8321
Full remote control and monitoring via Ross Dashboard software
Low power consumption with a maximum of 8 watts per card
Designed for high-density broadcast and professional video infrastructure

Pricing Dhs. 4,765.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

OG-12G-AMA Overview

The OG-12G-AMA is a professional openGear 12G-SDI analog audio embedder and disembedder designed for broadcast-grade video environments. It supports up to 4K UltraHD workflows and provides flexible routing of analog and embedded digital audio.

Audio Embedding and Disembedding Flexibility

This unit allows channel-pair based embedding and disembedding, enabling users to either pass embedded SDI audio or inject external analog audio through 3-pin terminal block connectors. Each of the 8 analog channels can be configured as input or output.

Broadcast Integration and Control

The OG-12G-AMA integrates seamlessly into openGear infrastructure and is fully compatible with Ross DashBoard software. Users can manage configuration, monitoring, and control across Windows, macOS, and Linux systems, either locally or over a network.

HDR and Professional Workflow Support

With HDR pass-through capability, the OG-12G-AMA ensures accurate high dynamic range signal handling. It is designed for modern production workflows where color depth and signal integrity are critical.

Technical Specifications +

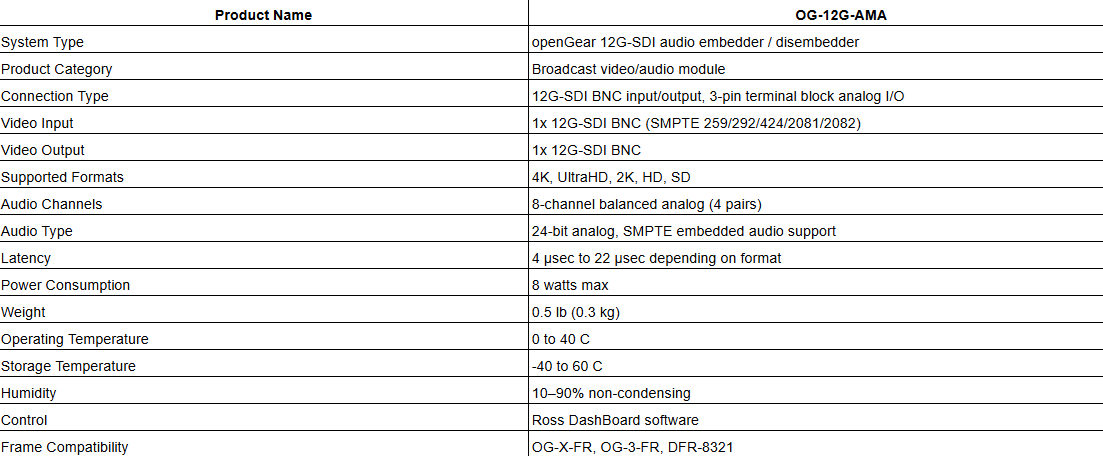

technical specifications
