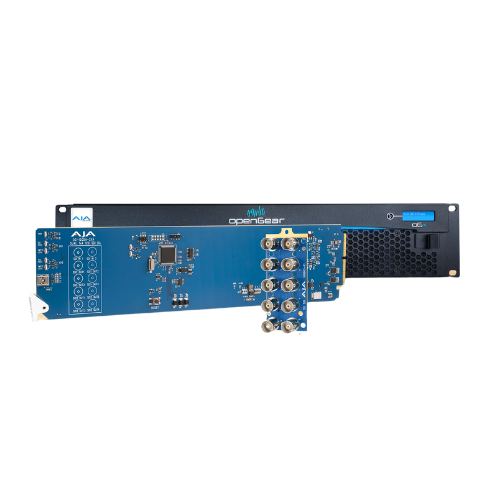

AJA OG-12GDA-2x4 | Dual 1x4 12G-SDI Distribution Amplifier

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Dual 1x4 12G-SDI distribution amplifier in a single card
Supports two independent SDI input channels
Provides eight noninverting 12G-SDI outputs
Automatic input equalization for stable signal quality
Output reclocking for reliable signal distribution
Supports video formats from 270 Mbps to 12 Gbps
Pass-through support for HDR metadata and embedded audio
Compact openGear design for high-density installations
Remote monitoring and control via Dashboard software
Low power consumption with hot-swappable capability

Pricing Dhs. 3,330.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Performance Signal Distribution

The OG-12GDA-2x4 is designed to distribute 12G-SDI signals efficiently across multiple outputs. With dual input channels, it allows users to handle two independent signals simultaneously, improving workflow efficiency.

Reliable Signal Integrity

Automatic input equalization ensures that incoming signals maintain their quality, even over long cable runs. Output reclocking further enhances signal stability, delivering clean and consistent output.

Flexible Format Support

Supporting a wide range of SDI formats from 270 Mbps up to 12 Gbps, the OG-12GDA-2x4 is compatible with SD, HD, and 4K workflows. This flexibility makes it suitable for modern broadcast environments.

Efficient Space Utilization

The dual-channel design effectively doubles the number of distribution amplifiers within a single openGear slot, making it ideal for high-density installations where rack space is limited.

Seamless Integration and Control

With DashBoard software support, users can easily monitor and control the device remotely. This ensures smooth integration into professional broadcast and production systems.

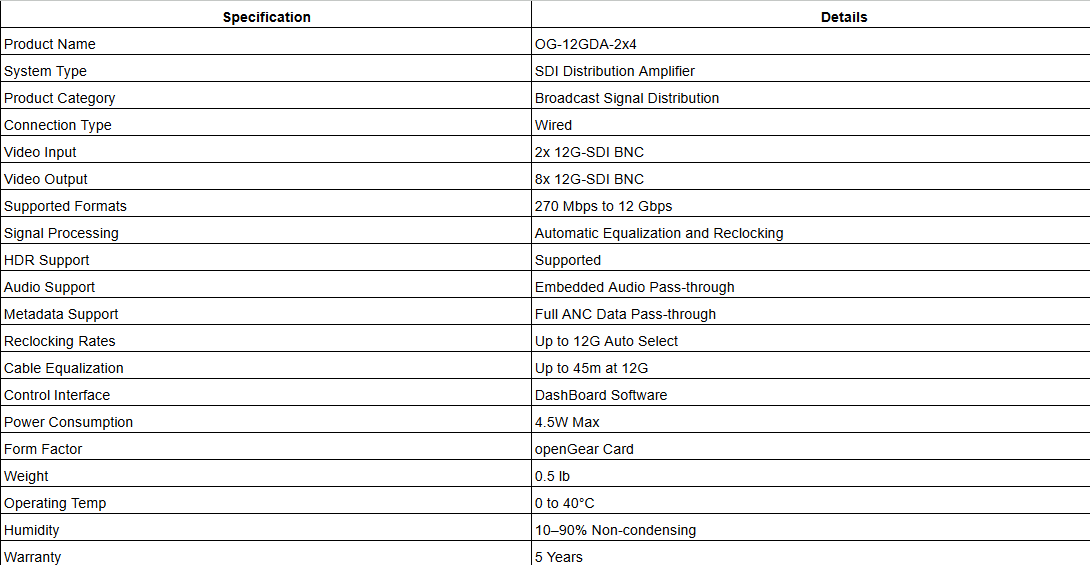

Technical Specifications +

technical specifications
