Professional SDI to AoIP Audio Bridge

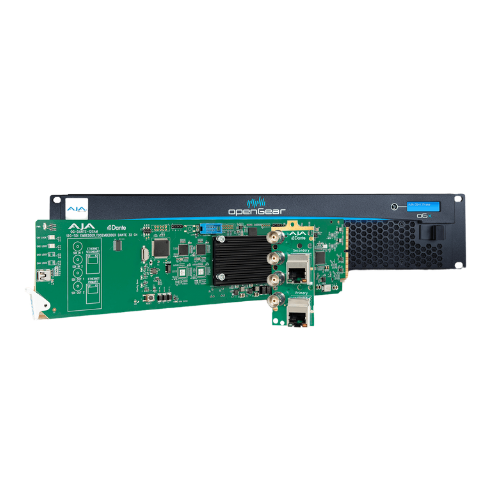

The OG-DANTE-12GAM is a high-density openGear audio embedder and disembedder designed to connect traditional SDI workflows with modern Audio over IP (AoIP) infrastructures such as Dante, AES67, and SMPTE ST 2110-30.

64-Channel Simultaneous Audio Processing

Each card supports up to 64 channels of audio bridging, enabling simultaneous embedding and disembedding between SDI video signals and IP-based audio networks. This makes it ideal for broadcast, live production, and large-scale AV facilities.

Seamless Integration with Dante Ecosystem

The system integrates directly with Dante Controller software, allowing precise routing of audio channels across IP networks. It also supports Dante Domain Manager and Dante Virtual Soundcard for advanced network control and DAW integration.

Flexible IP Audio Interoperability

Beyond Dante, the unit supports AES67 and SMPTE ST 2110-30 standards, ensuring compatibility with a wide range of broadcast and ProAV IP audio systems, including RAVENNA and other AES67-compliant networks.

High-Density Broadcast Infrastructure

When used in an openGear frame such as OG-X-FR or OG-3-FR, up to 10 cards can operate in a single 2RU chassis, enabling 640 channels of SDI-to-IP audio conversion in a compact rack space.

Designed for Mission-Critical Environments

With redundant Ethernet networking, hot-swappable hardware, and robust synchronization via PTPv2, the OG-DANTE-12GAM is engineered for continuous operation in live production and broadcast facilities.
