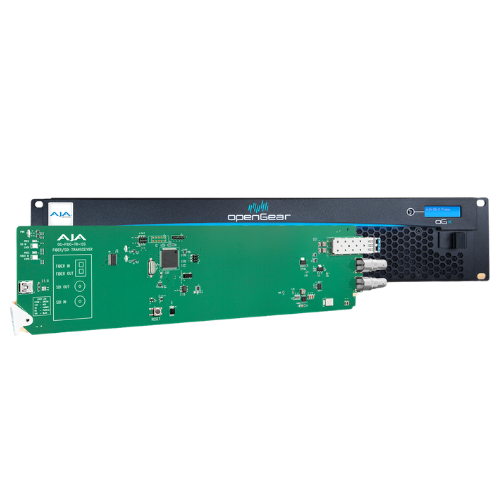

AJA OG-FiDO-TR-12G | 12G-SDI/LC Single Mode LC Fiber Transceiver

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

12G-SDI to Fiber and Fiber to 12G-SDI transceiver
Supports data rates from 270 Mbps up to 12 Gbps
Long-distance transmission up to 10 km over single-mode fiber
Automatic input detection and reclocking
HDR video and metadata pass-through support
Independent SDI and Fiber signal paths
Remote monitoring via Dashboard software
Low power consumption design
Hot-swappable openGear card
Five-year warranty

Pricing Dhs. 6,348.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Performance Fiber Transmission

The OG-FiDO-TR-12G is designed for reliable and high-quality signal transmission over long distances. It supports both SDI to fiber and fiber to SDI conversion, making it ideal for professional broadcast environments.

Long Distance Signal Extension

With support for single-mode fiber, this transceiver allows video signals to travel up to 10 km without degradation. This makes it perfect for large-scale productions and facility installations.

Flexible Dual Conversion

The unit provides independent signal paths for both SDI and fiber inputs and outputs. This flexibility allows simultaneous conversion and integration into complex workflows.

HDR and Metadata Support

OG-FiDO-TR-12G supports HDR video and passes through SDI metadata, ensuring accurate color and image representation across your production pipeline.

Efficient Monitoring and Control

Using DashBoard software, users can monitor and control the device remotely. LED indicators also provide quick status updates for signal presence and lock.

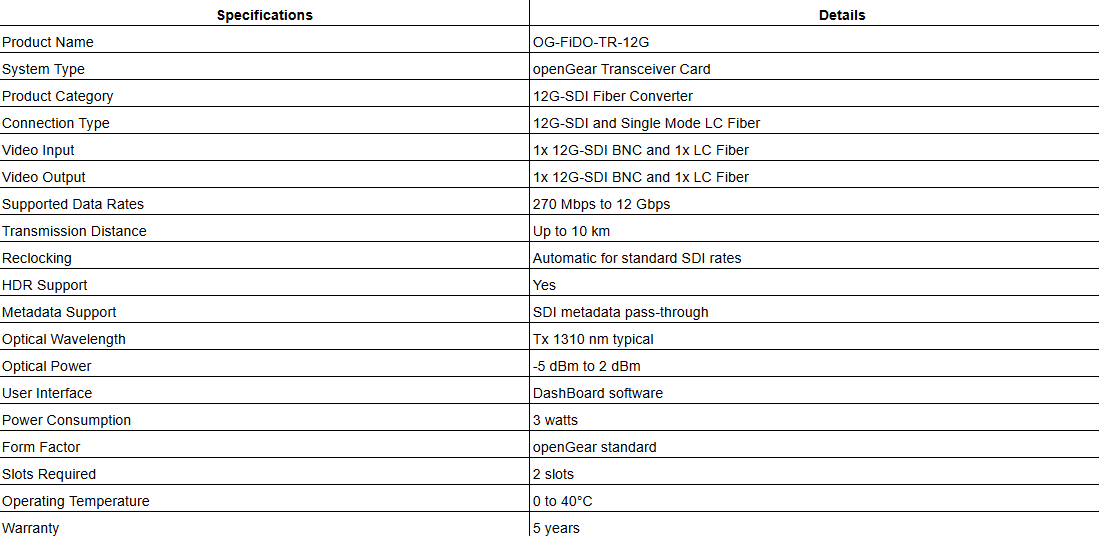

Technical Specifications +

technical specifications
