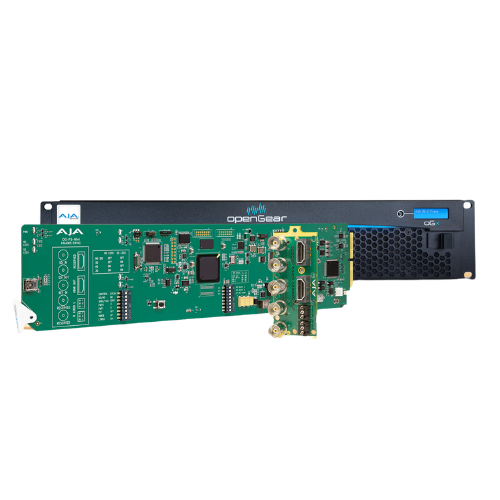

AJA OG-FS-Mini 3G-SDI Frame Synchronizer

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Broadcast-quality frame synchronization for 3G-SDI, HD, and SD signals
Converts and synchronizes video to house reference standards
Simultaneous SDI and HDMI outputs for production and monitoring
High-quality 10-bit video processing
Up, down, and cross conversion support
16-channel embedded SDI audio input and output
8-channel HDMI audio output
Low latency with approximately one frame delay
Loss of input management with freeze, black, or mute options
Remote configuration via Dashboard software

Pricing Dhs. 3,367.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Reliable Frame Synchronization

The OG-FS-Mini provides precise frame synchronization for untimed video signals, ensuring seamless integration into broadcast workflows. It aligns incoming signals with external references for stable output.

Flexible Video Conversion

Supporting up, down, and cross conversion, the OG-FS-Mini adapts video formats across 3G, HD, and SD standards. This flexibility allows it to fit into a wide range of production environments.

High-Quality Video Processing

With 10-bit processing, the OG-FS-Mini maintains excellent image quality during conversions. It ensures accurate color representation and smooth transitions between formats.

Integrated Audio Handling

The device supports 16-channel embedded SDI audio along with HDMI and analog outputs. This enables efficient audio monitoring and routing in professional setups.

Compact and Scalable Design

Built for openGear frames, the OG-FS-Mini allows multiple units to be installed in a single rack. Its compact design makes it ideal for broadcast facilities and live production environments.

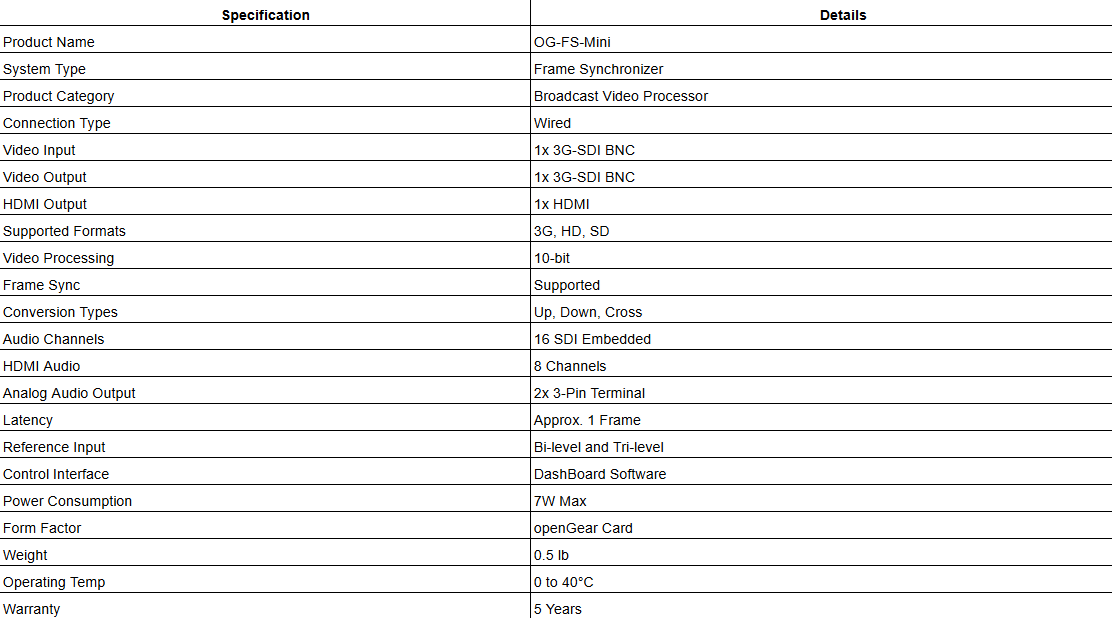

Technical Specifications +

technical specifications
