AJA OG-HA5-12G HDMI 2.0 to 12G-SDI Converters

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Converts HDMI 2.0 to 12G-SDI up to 4K/UltraHD 60p
Dual 12G-SDI outputs with mirrored distribution
Supports 4:4:4 / 4:2:2 / 4:2:0 formats
Supports up to 12-bit video workflows
EDID emulation for stable source format locking
HDR InfoFrame analysis and metadata pass-through/override
Simple Frame Rate Conversion (FRC) support
Embedded audio support (HDMI and analog selectable input)
Dolby Digital and Dolby Digital Plus pass-through (including Atmos/DD+ JOC)
Fiber SFP transmitter variants available (LC and ST models)
Ross Dashboard software control support
openGear platform compatibility

Pricing Dhs. 3,808.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Overview

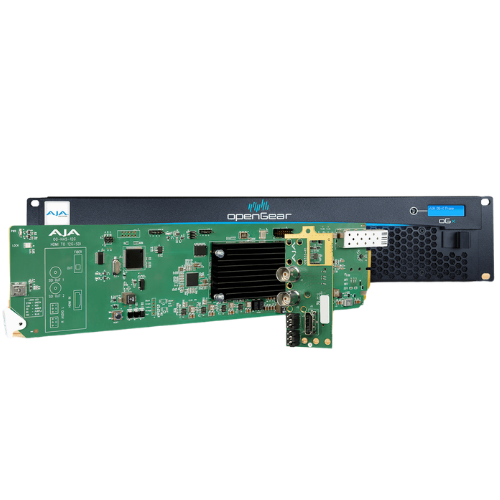

OG-HA5-12G is a professional openGear converter designed to transform HDMI 2.0 signals into high-quality 12G-SDI outputs. It is built for broadcast and production environments requiring reliable conversion of UltraHD and 4K video signals.

Signal Conversion & Output

The unit accepts HDMI 2.0 input and delivers up to dual 12G-SDI outputs, enabling simultaneous distribution to multiple SDI devices. It supports high-resolution workflows up to 4K/UltraHD at 60 frames per second.

EDID & Signal Stability

OG-HA5-12G includes EDID emulation for consistent source negotiation, ensuring the connected HDMI source continuously outputs the desired resolution and frame rate without interruption.

HDR Processing

The system supports HDR metadata handling, including HDR InfoFrame analysis in compliance with HDMI standards. It can pass through or override HDR metadata depending on workflow requirements.

Audio Handling

It supports embedded HDMI audio as well as analog audio input selection. Audio formats include PCM, Dolby Digital, and Dolby Digital Plus with support for immersive audio formats.

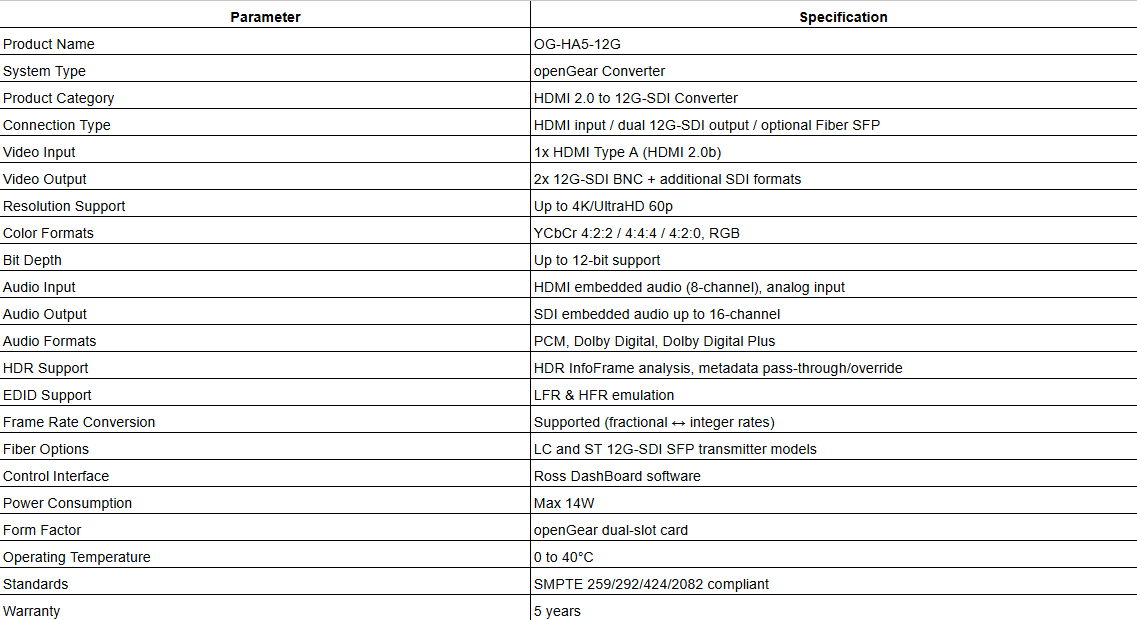

Technical Specifications +

technical specifications
