AJA OG-HA5-4K | 4K/UltraHD/2K/HD/SD HDMI 2.0 to 3G-SDI Conversion

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Converts HDMI 2.0 to 4K/UltraHD/2K/HD/SD 3G-SDI
Supports up to 4K 60fps video formats
Quad-3G-SDI output (4x BNC)
HDR Infoframe analysis and metadata support
EDID emulation for stable HDMI integration
Supports 2SI and Square Division pixel mapping
Embedded 8-channel 24-bit audio support
Dolby Digital and Dolby Digital Plus passthrough (including Atmos JOC)
Simple frame rate conversion support
Hot-swappable OpenGear module

Pricing Dhs. 3,183.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

HDMI to 3G-SDI Conversion for Professional Workflows

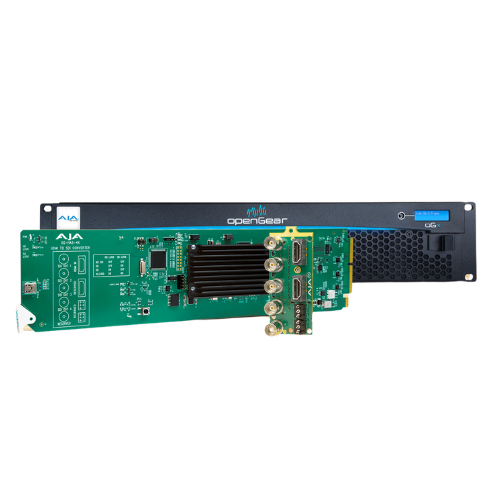

The OG-HA5-4K is an OpenGear-compatible converter designed to transform HDMI 2.0 signals into high-quality 4K/UltraHD or HD/SD SDI outputs. It is widely used in professional broadcast and production environments where HDMI sources must be integrated into SDI-based infrastructure.

High-Resolution 4K Processing Engine

The device supports full 4K (4096x2160) and UltraHD (3840x2160) formats at frame rates up to 60fps. It ensures accurate signal conversion with support for multiple chroma formats including RGB and YCbCr.

Advanced HDR and Metadata Support

The OG-HA5-4K analyzes HDR Infoframe data in real time and supports HDR metadata pass-through or override. This ensures accurate color reproduction and workflow consistency in HDR production pipelines.

Flexible Audio Integration

Supports up to 8 channels of embedded HDMI audio with seamless transfer to SDI output. It also supports compressed audio formats including Dolby Digital, Dolby Digital Plus, and Atmos (JOC).

OpenGear Broadcast Integration

Designed for high-density OpenGear frames, the module integrates with Ross DashBoard software for remote configuration, monitoring, and control across Windows, macOS, and Linux systems.

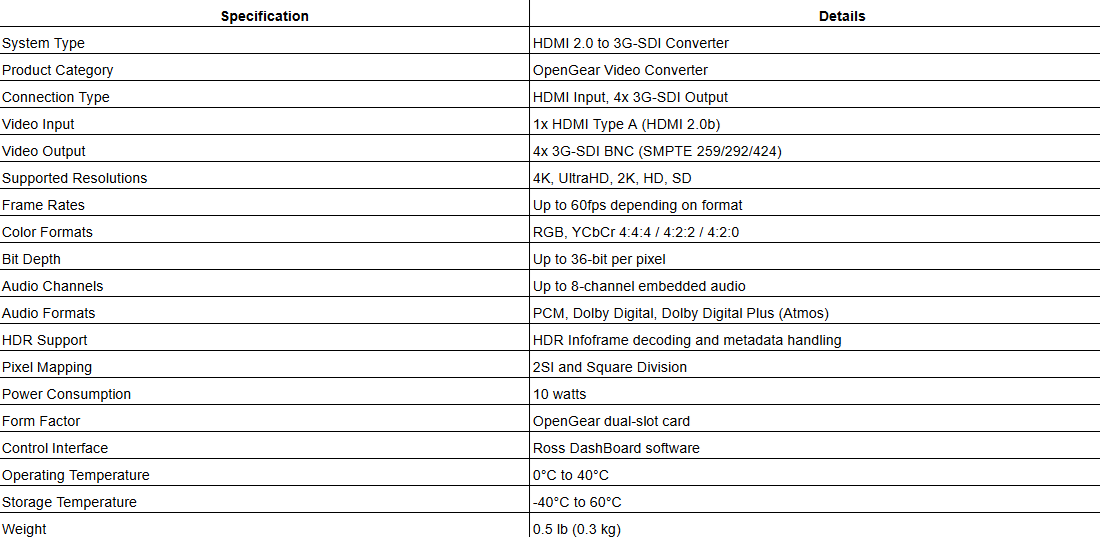

Technical Specifications +

technical specifications
