AJA OG-Hi5-12G 4K/UltraHD 12G-SDI to HDMI 2.0 Converters

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Converts 12G-SDI to HDMI 2.0 up to 4K/UltraHD 60p
Supports HDR metadata (HDR10 and HLG) over HDMI
12G-SDI single-link input with reclocked SDI loop out
Supports 4:4:4 / 4:2:2 / 4:2:0 HDMI output
Up to 12-bit video workflows
Embedded audio support up to 16-channel SDI input
HDMI audio output up to 8-channel 24-bit
Dolby Digital and Dolby Digital Plus pass-through support
Fiber SFP compatibility (LC/ST models available)
Ross Dashboard software control support
High frame rate support up to 60p
openGear modular frame system compatibility

Pricing Dhs. 3,808.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Overview

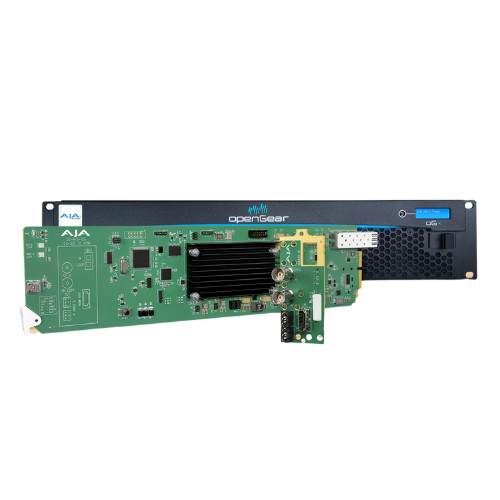

OG-Hi5-12G is a professional openGear converter designed to transform 12G-SDI signals into HDMI 2.0 output with ultra-high fidelity. It supports 4K and UltraHD workflows up to 60 frames per second and ensures accurate color reproduction for broadcast and production environments.

Signal Conversion & Workflow

The device provides a 12G-SDI input with a reclocked loop-through output, enabling seamless integration into existing SDI pipelines while simultaneously delivering HDMI 2.0 monitoring output for displays and production monitoring systems.

HDR Support

OG-Hi5-12G supports HDR metadata generation in compliance with HDMI 2.0b and CTA-861-G standards, including HDR10 and Hybrid Log Gamma (HLG) formats for modern HDR workflows.

Video & Format Support

It supports multiple resolutions including 4K (4096x2160) and UltraHD (3840x2160), along with HD and SD formats, ensuring compatibility across production environments. High frame rate support up to 60p enables smooth motion rendering.

Audio Integration

The system supports embedded SDI audio up to 16 channels and outputs up to 8-channel HDMI audio. It also supports PCM and Dolby Digital formats including Dolby Digital Plus and Atmos (JOC).

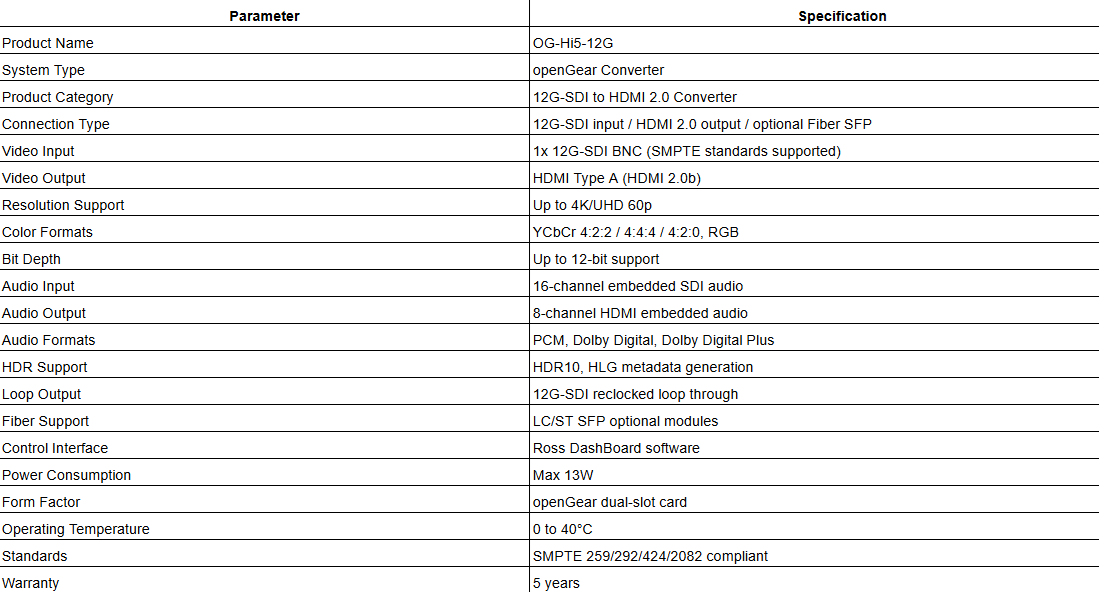

Technical Specifications +

technical specifications
