AJA OG-ROI-HDMI | HDMI to 3G-SDI Scan Converter

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

HDMI to 3G-SDI scan converter for broadcast workflows
Region of Interest (ROI) scaling for precise screen extraction
HDMI loop-through for monitoring or signal pass
Supports SD, HD, and 3G video formats
Aspect ratio, frame rate, and resolution conversion
Image rotation, flip, and scaling controls
Supports up to 8-channel embedded HDMI audio
Analog audio input via terminal connectors
Genlock support for synchronized output
Remote control via Ross Dashboard software

Pricing Dhs. 4,765.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Quality HDMI to SDI Conversion

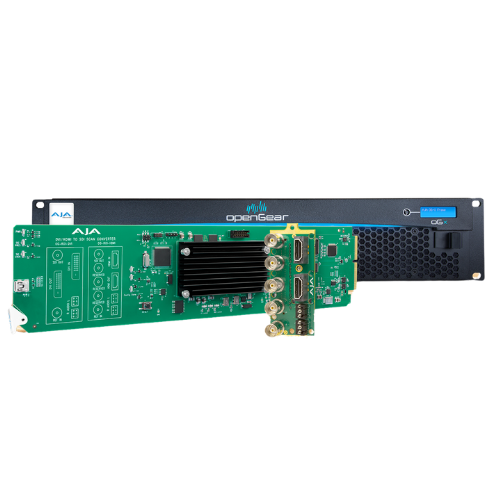

The OG-ROI-HDMI is a professional openGear scan converter designed to convert HDMI and computer signals into 3G-SDI output. It enables seamless integration of computer-based content into broadcast environments without compromising quality.

Advanced Region of Interest (ROI) Scaling

This device allows precise selection and scaling of specific areas from a computer screen. You can remove unwanted elements like menus or borders and output only the required portion, ensuring clean and professional visuals.

Flexible Signal Conversion Capabilities

OG-ROI-HDMI supports up, down, and cross-conversion between formats. It also includes aspect ratio correction, frame rate conversion, and deinterlacing, making it highly versatile for different production needs.

Enhanced Visual Control and Output Options

With support for image rotation, flipping, and scaling, users can fully customize output display. It is also ideal for multi-screen setups such as video walls and digital signage systems.

Audio Integration and Workflow Efficiency

The unit supports both embedded HDMI audio and analog audio inputs. Audio can be embedded into the SDI output, ensuring synchronized audio-video transmission across workflows.

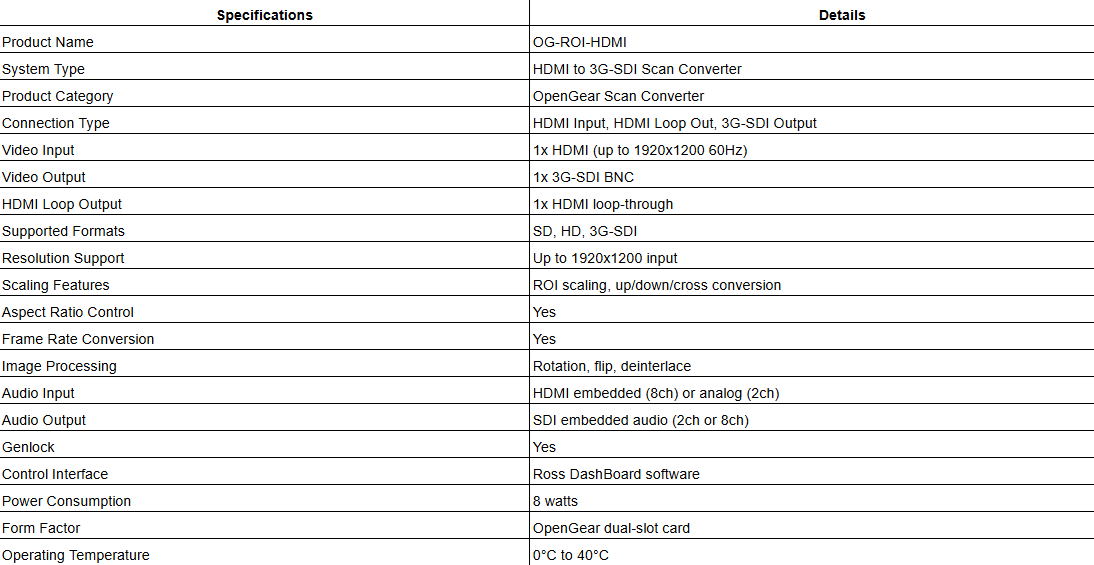

Technical Specifications +

technical specifications
